Aspen Avionics EFD1000 - RSM Pin Out

EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 84-225 Revision H
© Copyright 2009 Aspen Avionics Inc.

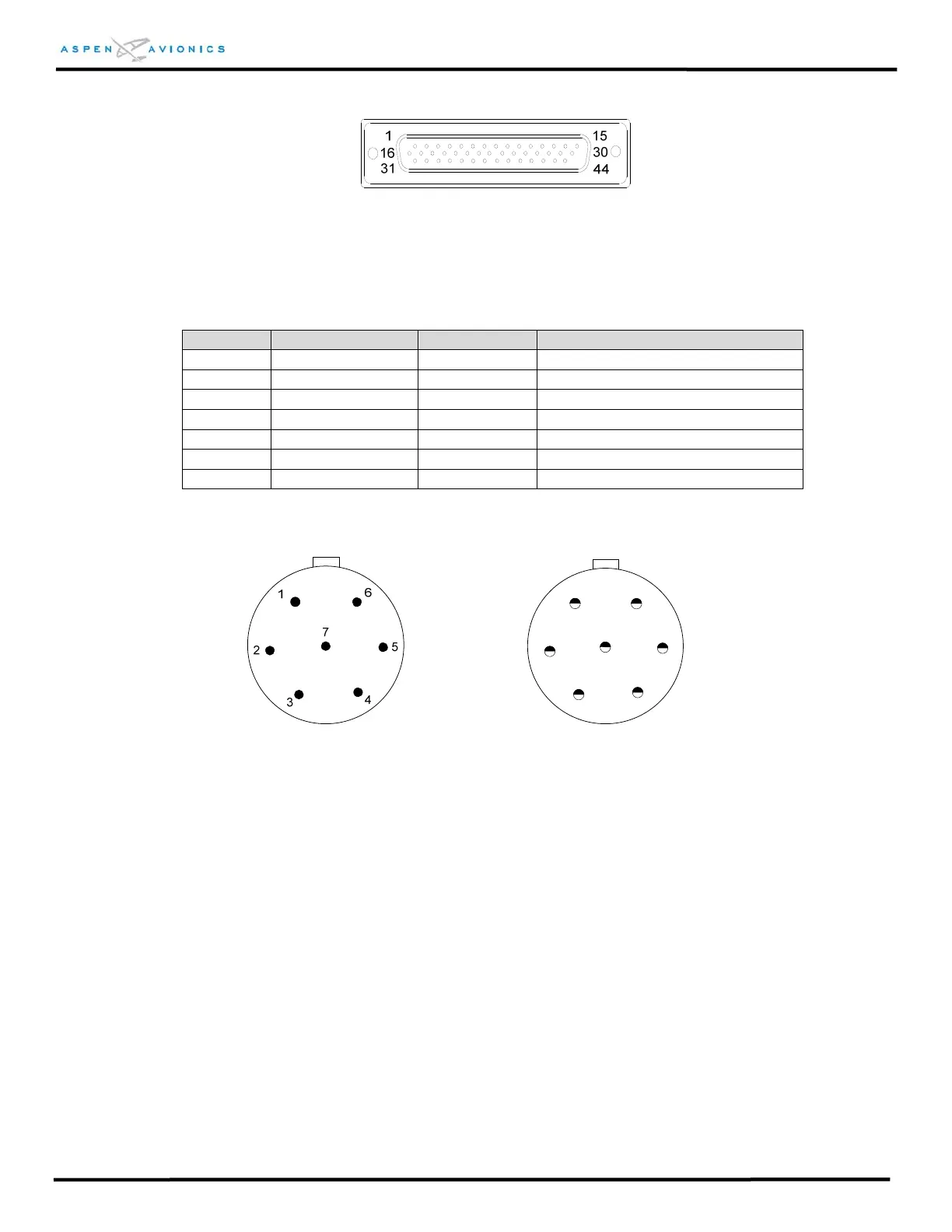

Figure 8.1 - PFD Connector (as viewed from rear of unit)
8.4 RSM Pin Out
Pin Number Name Input / Output Function
1 RSM_A - RSM Connection
2 RSM_B - RSM Connection
3 RSM_C - RSM Connection
4 RSM_D - RSM Connection
5 RSM_E - RSM Connection
6 RSM_F - RSM Connection
7 RSM_G - RSM Connection
7
1
2
3
4
6
5
Male Pin Side.. Solder Cup Side
Figure 8.2 - RSM Mating Connector –Install Side
