Minimums
Hot Key 2 enables / disables the MINIMUMS display. When enabled, the minimums field
is available for editing and minimums alerts are provided. When disabled, no minimums
alerting is provided and the field may not be selected for editing. Upon enabling the
MINs field, the right knob cursor is activated for editing the MINs value.
Compass Presentation Format
Hot Key 3 toggles the compass between a 360 rose display and a 100 deg ARC display.
Basemap and Declutter Level
Hot Key 4 is used to enable the basemap and control the amount of basemap symbology
that is presented to the pilot. Refer to Section 12.10 Situational Awareness Map Display
for additional information about the basemap.
Each successive push of the MAP hot key will change the basemap declutter level in a
round robin sequence. Available selections are HIGH, MEDIUM, LOW, FP ONLY and OFF.
In the HIGH, MEDIUM, and LOW settings the basemap symbology is rendered according
to selections made by the pilot in the main menu.
The FP ONLY selection displays just the flight plan legs and waypoints associated with
the GPS flight plan, and no other basemap features.
OFF removes all basemap and flight plan symbology.
Separate basemap declutter and range settings are retained for the 360 and ARC
compass modes.
A basemap feature display level icon is presented with the range in the lower left portion
of the display as follows:
OFF High Medium Low FP Only

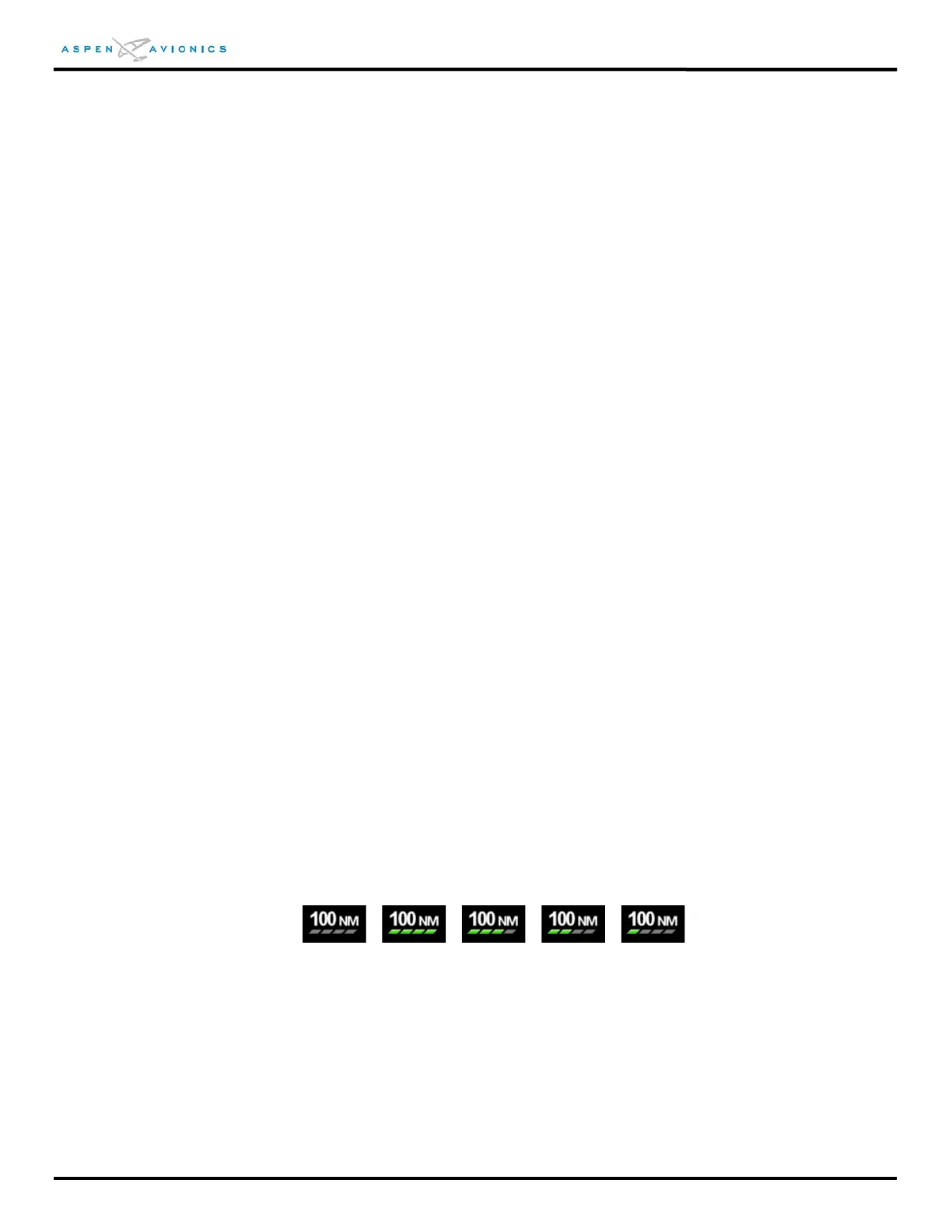

Figure 12.3 – Basemap Range and Declutter Settings
GPSS (PRO model)
Hot Key 5 is used to enable or disable GPS Steering (GPSS) outputs to the autopilot. See
Section 12.11 for more information about GPSS.
