EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 56-225 Revision H
© Copyright 2009 Aspen Avionics Inc.

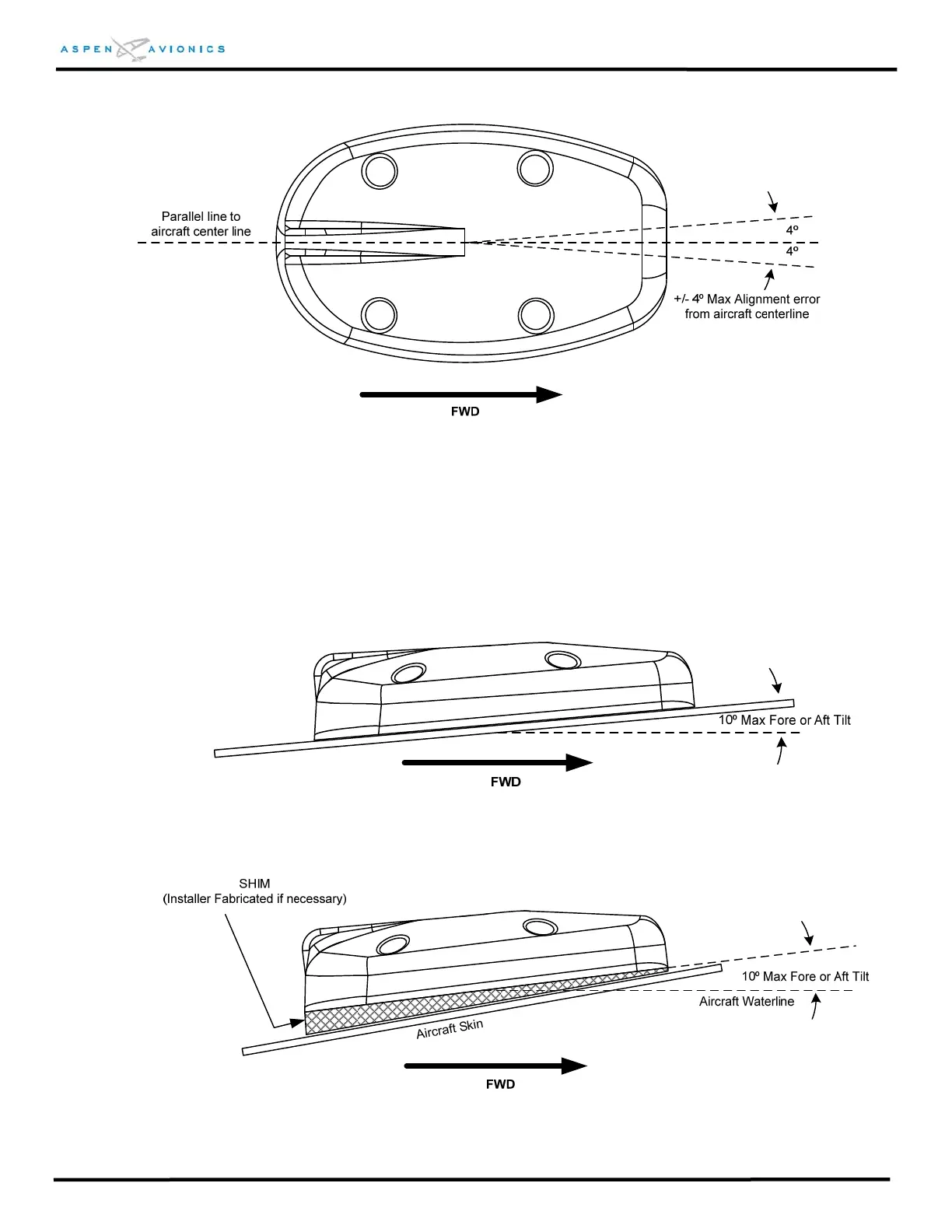

Figure 6.8 – RSM Top View longitudinal Alignment
Maximum fore and aft tilt is in relation to the aircraft waterline. An aluminum shim
might be required to keep orientation within limits (see Section 6.9.9 for shim
fabrication).
Figure 6.9 – RSM Fore or Aft Max Tilt
