Whenever the CDI Navigation Source’s data is valid, a CDI Source Information Block
for the selected source is shown in the upper left corner of the Navigation Display, as
shown in Figure 4-64 and described in Table 4-4.
Radio Mode Information Block Label
GPS GPS1 or GPS2
VHF
VOR VOR1 or VOR2
Localizer LOC1 or LOC2
Table 4-4
VHF NAV Radio Modes
Selected CDI Navigation Source
Waypoint identier or tuned frequency (when available)
Bearing (in degrees)/Distance (in Nautical Miles) to waypoint or navaid
(when available)
Estimated Time Enroute (Hours:Minutes)
If both the station identier and the tuned frequency of the associated VHF NAV
radio are available, only the station identier is displayed on the second line of the
information block. In most cases, however, only the tuned frequency is available for
display from integrated GPS/VLOC devices.

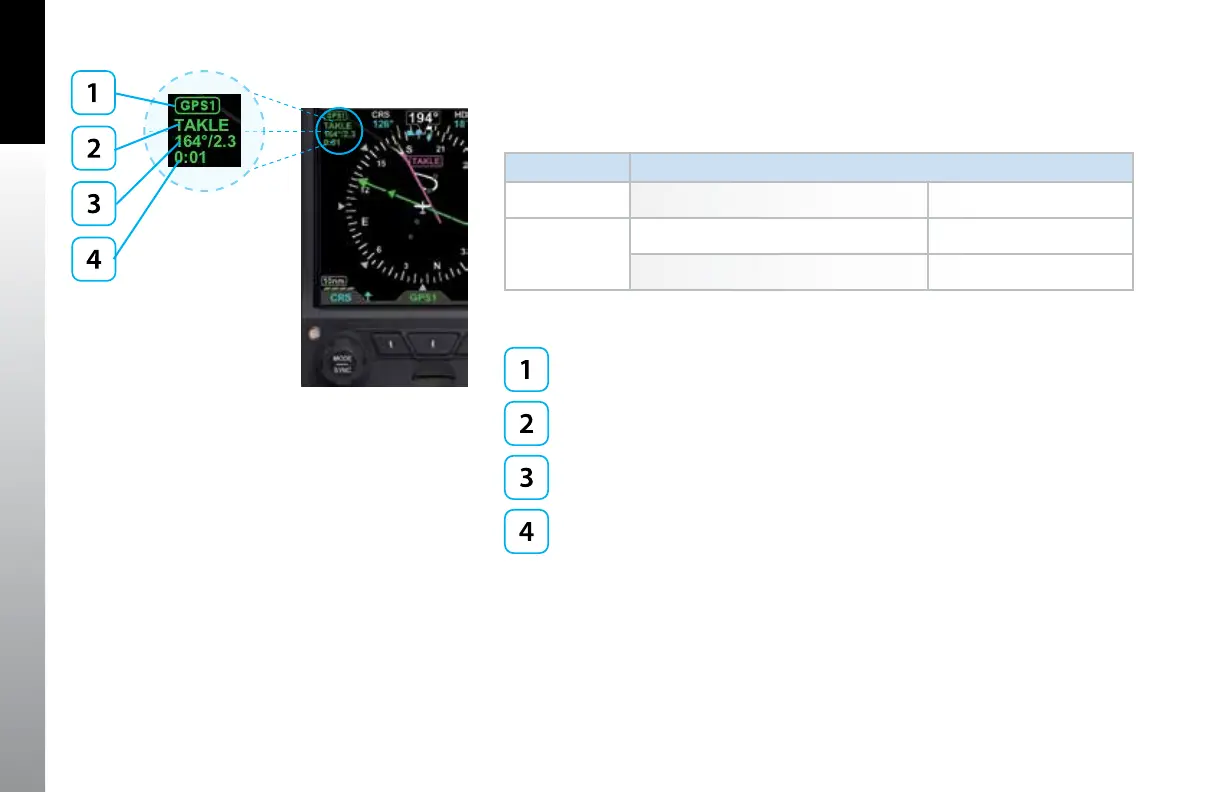

Figure 4-64
CDI Source Information Block
