CHAPTER 4 REFERENCE GUIDE
EFD1000 VFR PFD Pilot’s Guide
Page 4-56
091-00028-001 ( )
When the Data Link Weather is enabled, an age annunciation is shown in the lower left
corner of the Navigation Display (Figure 4-126). The age annunciation indicates the
elapsed time in minutes since the information was generated. Each weather product
has an age limit and is usually updated at the update frequency indicated in Table 4-6.
The age of each weather product is displayed in XM RECEIVER B and XM RECEIVER C
Menu pages (Figure 4-126).
Weather Product Expiration Time (min.) Update Frequency (min.)
U.S. NEXRAD 30 5
Puerto Rico NEXRAD 30 5
High Resolution
(Canada) Radar
30 10
U.S. Radar Coverage 30 5
Canada Radar Coverage 30 10
Precipitation Type 30 5
Data Link Lightning 30 5
Table 4-6
Weather Product Age Limits and Update Frequency
View Data Link Weather Age
1. Press the MENU Button.
2. Rotate the Right Knob to the XM RECEIVER B Menu page.
The age of each Data Link Weather product is shown (Figure 4-126).
3. Press the MENU Button to exit.

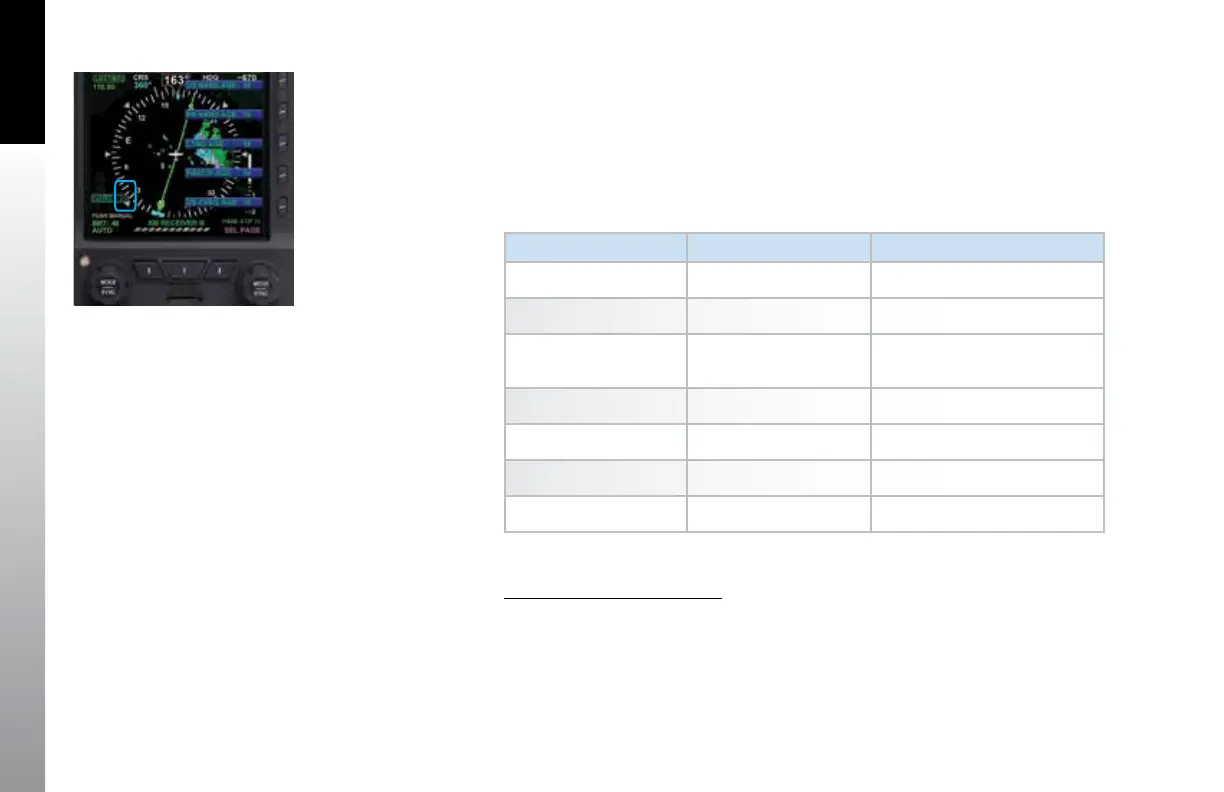

Figure 4-126
Data Link Weather Product Age
