CHAPTER 5 CUSTOMIZING THE EFD1000 PFD
EFD1000 VFR PFD Pilot’s Guide
Page 5-12
091-00028-001 ( ) EFD1000 VFR PFD Pilot’s Guide
Page 5-13
091-00028-001 ( )
Set Map Symbol Display
1. Press the MENU Button.
2. Rotate the Right Knob to navigate to the appropriate Map Settings Menu
page.
3. Press the desired Map Symbol Menu Key.
The menu label turns magenta, and the EDIT VALUE label displays above the
Right Knob (Figure 5-14 and 5-15).
4. Rotate the Right Knob to the desired value.
5. Select another Map Symbol Menu Key and edit the display option or press
the MENU Button to exit.

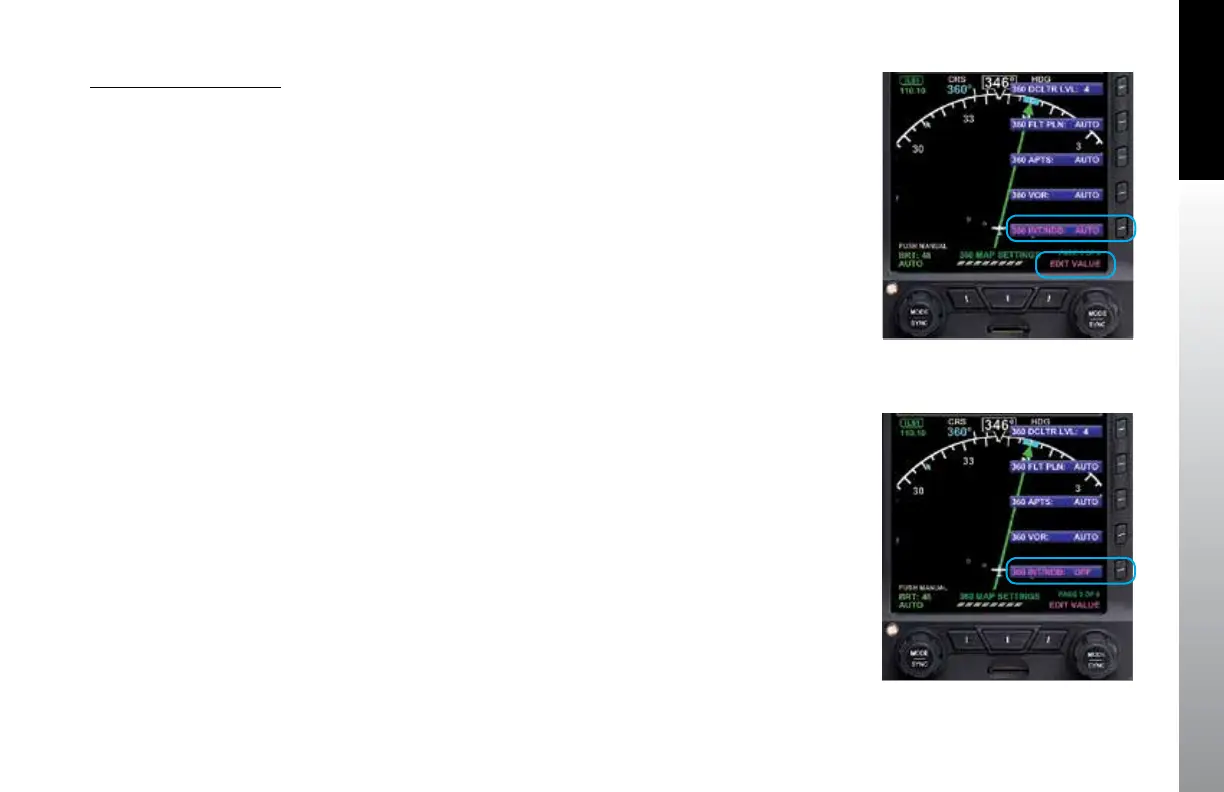

Figure 5-14
Editing 360° NDB Display Option
Figure 5-15
360° NDB Display Option Set To OFF
