CHAPTER 5 CUSTOMIZING THE EFD1000 PFD
EFD1000 VFR PFD Pilot’s Guide
Page 5-14
091-00028-001 ( ) EFD1000 VFR PFD Pilot’s Guide
Page 5-15
091-00028-001 ( )
Feature Group and Layer Order
(from Top to Bottom)
Max Range Declutter Setting
Figure 5-16 Level 4 Figure 5-17 Level 3 Figure 5-18 Level 2 Figure 5-19 Level 1 Figure 5-20 Level 0 (O)
Trac Overlay Symbols 1
Overlay – enabled
via Hot Key
Always ON, regardless of declutter level
No symbols, legs,
or waypoints —
regardless
of selected
range — are
displayed.
When selected,
the basemap
declutter and
range display
for two seconds
and then are
removed from
view. The MAP
Hot Key legend
is shown in gray.
Ownship Symbol 2 Always ON, regardless of declutter level
Instruments
1
and Annunciations
2
3 Always ON, regardless of declutter level
Flight Plan Legs and Waypoints
3
4 200
Airports
3
5 100
NDBs
3
6 15
VORs, (HIGH, LOW, Terminal)
3
7 200
Intersections 8 15
WX-500 or Data Link Lightning 9
Overlay – enabled
via Hot Key
Always ON
4
NEXRAD Weather 10
Overlay – enabled
via Hot Key
Always ON
Table 5-12

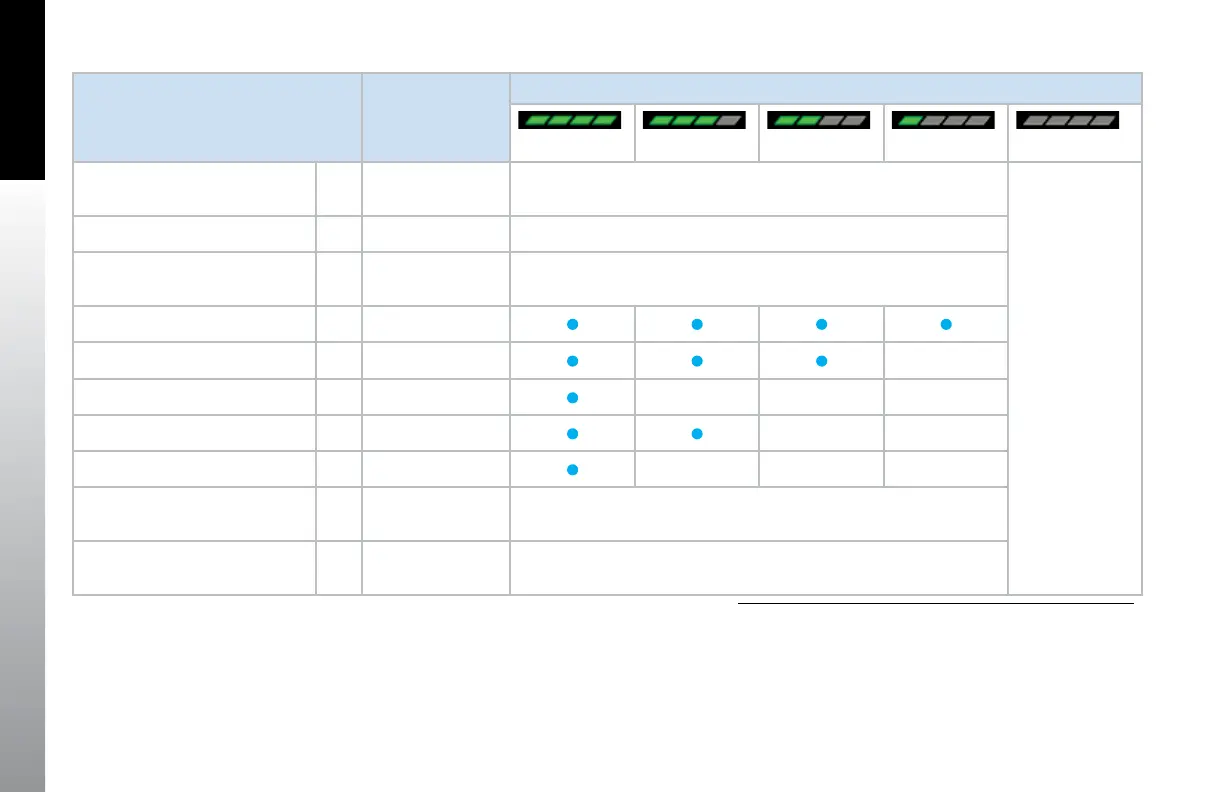

Map Feature Group Layering, Range, and Declutter Levels
1. e.g., Direction Indicator, CDI, TO/FROM.
2. e.g., NAV INFO Block, Range.
3. Shown only when data is provided by a compatible and connected GPS
system.
4. Removed at ranges less than 20nm.
