HOT KEY DESCRIPTION OPTIONS
2/2
5
Hot Key Menu selection
2/2 Hot Key Menu 2 of 2
1/2 Hot Key Menu 1 of 2
LTNG
5
Toggles between Lightning
Overlay options (see Section
4.8.1.)
LTNG Data Link Lightning Overlay on
STRK WX-500 Strike Overlay on
CELL WX-500 Cell Overlay on
LTNG All Lightning o
NXRD
5
Displays Data Link Weather and
Radar Coverage overlay (see
Section 4.8.2.)
NXRD NEXRAD Overlay on
NXRD NEXRAD Overlay o
TRFC
6
Displays Trac overlay (see
Section 4.8.3.)
TFCN Normal Filter
TFCU Unrestricted (No Filtering)
TFCA Above Filter
TFCB Below Filter
TRFC Trac Overlay o
BARO
Toggles between BARO
adjustment on or o for
Barometric Pressure setting
BARO BARO adjustment on
BARO BARO adjustment o
Table 2-3
Hot Key Descriptions

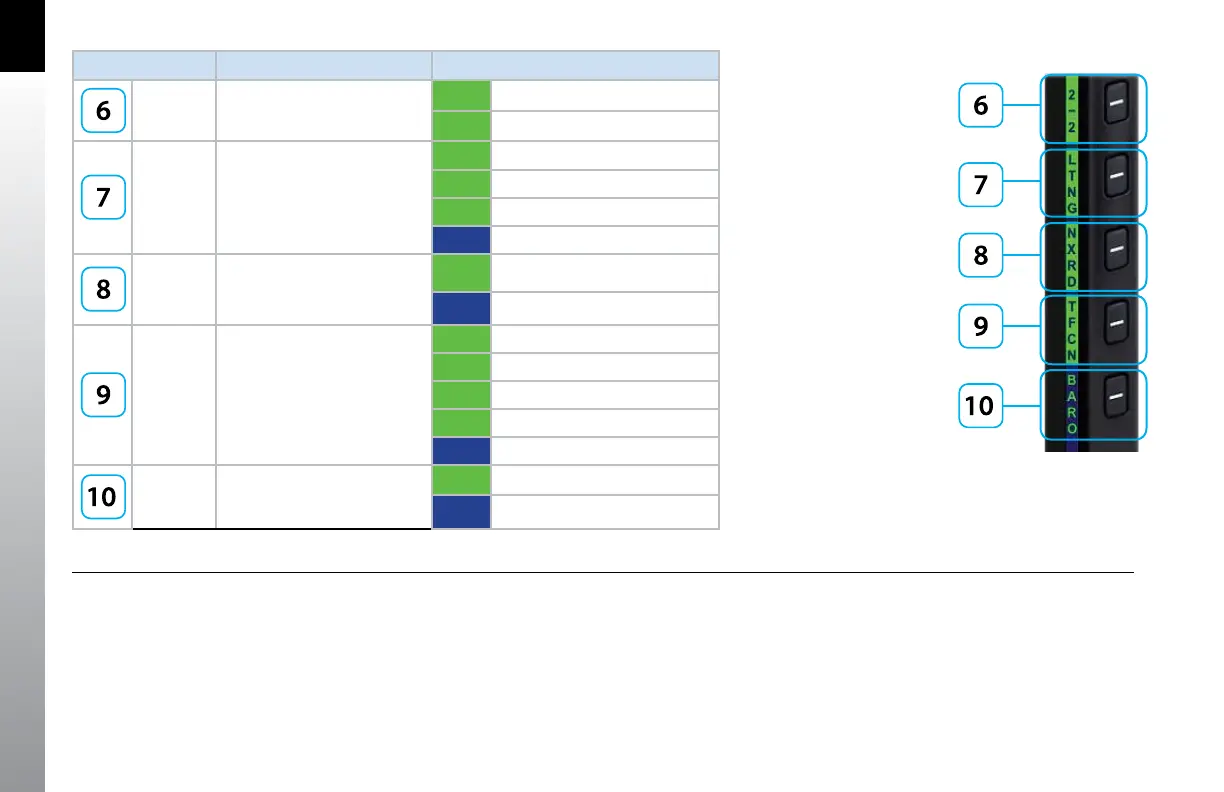

Figure 2-9
Hot Key Menu 2 of 2
1. Included in VFR to PRO upgrade
2. When the Minimums eld is rst enabled with the MIN Hot Key, the MIN value is immediately available for editing
3. Flight plan legs and waypoints display available in all installations including a GPS navigator. Basemap display of nearby way points available with all ARINC 429 GPS navigators and some RS-232 GPS navigators
4. GPSS available with ARINC 429 or RS-232 GPS navigators.
5. Hazard awareness overlays are available only with the Evolution Hazard Awareness (EHA) option and compatible hazard awareness sensors are installed and congured to the PFD. The Hot Key label is blank when
function is not available
6. The Trac Filter Hot Key label is blank when the Trac overlay function is not available
