Each Menu Page has up to ve selectable options, each adjacent to one of the ve
Hot Keys which double as Menu Keys when the Menu is active (Item 1 of Figure 2-17
and Table 2-4). After navigating to the Menu Page containing the option you want to
change, press the Menu Key adjacent to that option label, which initiates the Menu’s
Edit mode. When the Menu is in the Edit mode, the label, EDIT VALUE, is shown above
the Right Knob in magenta (Figure 2-16), and the label of the item selected for editing
is also shown in magenta. Rotate the Right Knob to change the value of the selected
item. When nished, either select another displayed Menu option to change , or press
the Right Knob to exit the Edit mode and return to Navigation mode to select another
Menu Page.
When you are nished changing Menu options, press the MENU Button to exit.
Menu Options

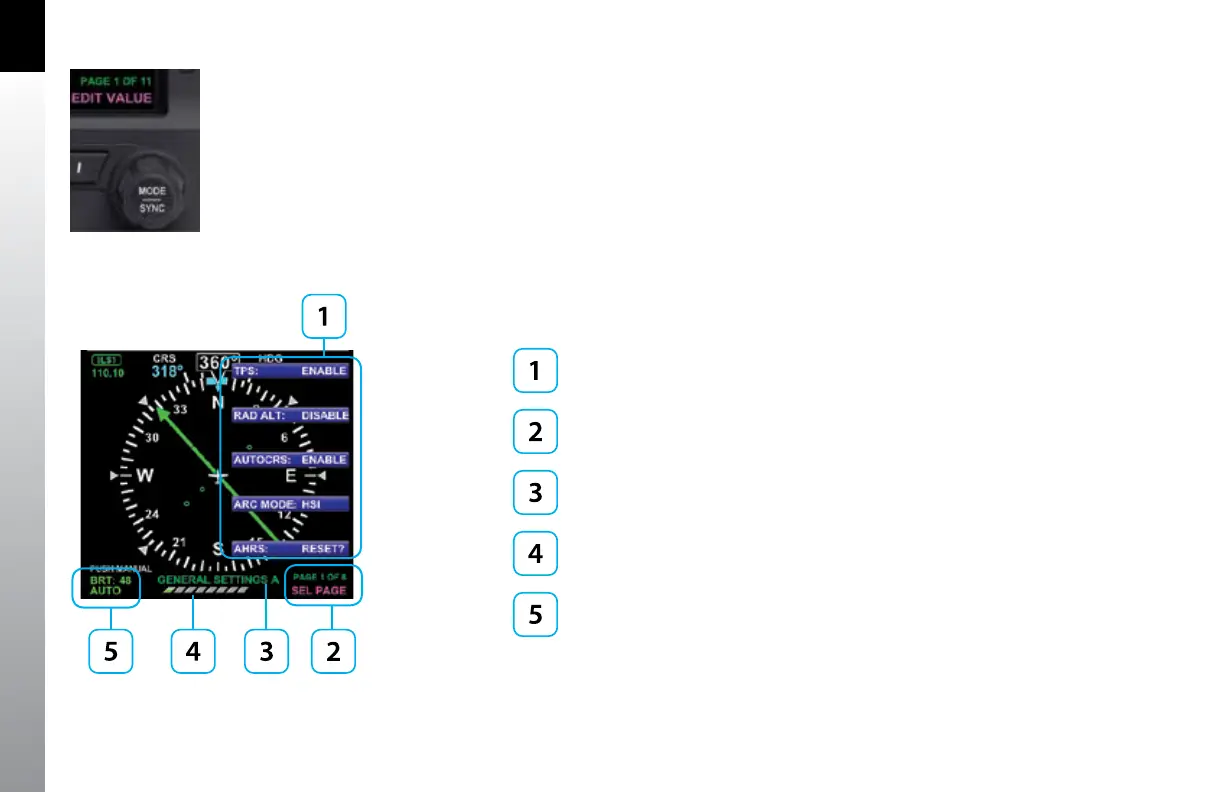

Menu Page number and mode (Navigation mode shown)
Menu Page Name
Menu Page graphical bar
Brightness Control (see Section 2.2.4.2.)
Table 2-4
Menu
Figure 2-16
Menu Edit Mode
Figure 2-17
Main Menu
To Next Page
