CHAPTER 2 CONTROLS AND DISPLAY
EFD1000 VFR PFD Pilot’s Guide
Page 2-15
091-00028-001 ( )

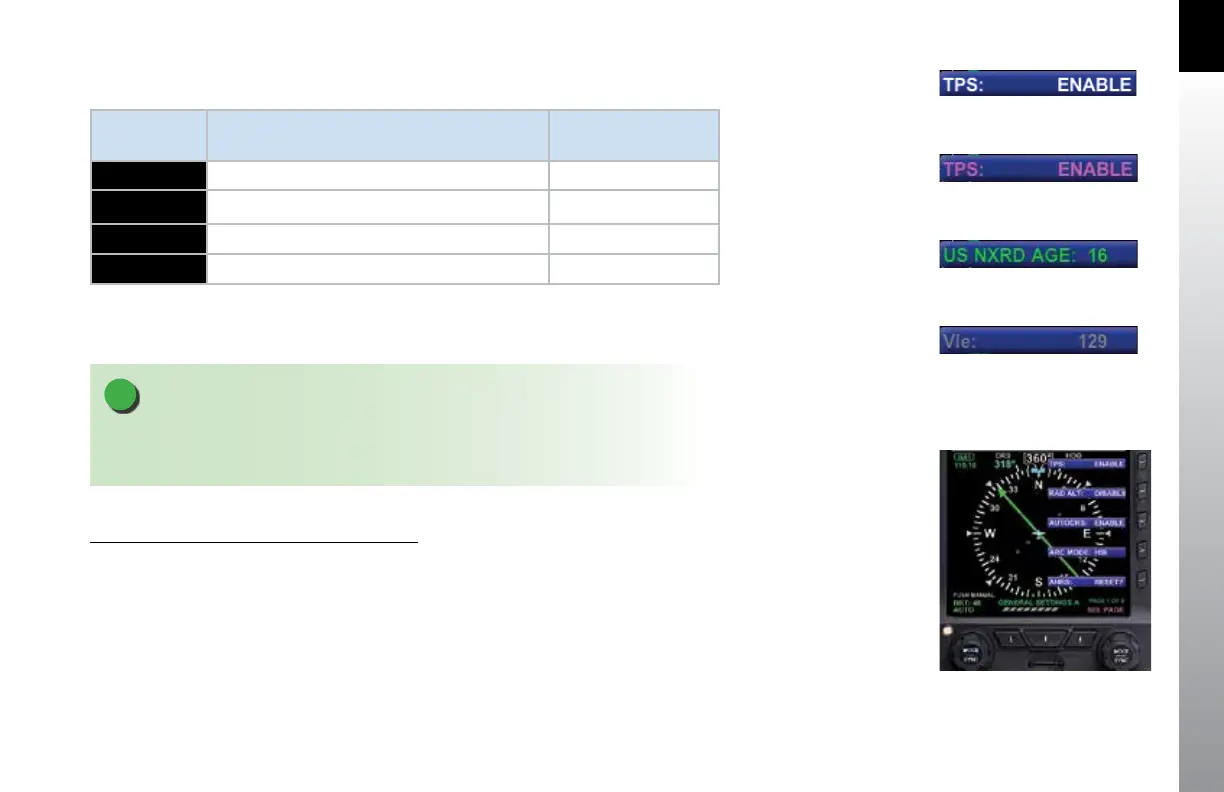

The MENU text will display in one of the four colors listed and described in Table 2-4.
DISPLAY
TEXT
DESCRIPTION DISPLAY
WHITE
Editable option Figure 2-18
MAGENTA
Editable option enabled Figure 2-19
GREEN
Status Only Figure 2-20
GRAY
Disabled (Not available for selection or editing) Figure 2-21
Table 2-4
Menu Text
NOTE
These steps are provided as a basic overview. Each menu command is covered in detail in
Chapter 5.
Access To and Navigation Within the Menu
1. Press the MENU button. The Menu displays on the Navigation Display
adjacent to the Hot Keys (Figure 2-22).
2. Rotate the Right Knob to navigate through the dierent pages of the
Menu. Rotating the Right Knob clockwise advances the Menu Pages,
counterclockwise returns to previous pages.
3. Press the MENU Button to exit.
Figure 2-22
Menu Display
Figure 2-18
Menu Text - Editable
Figure 2-19
Menu Text - Enabled for Editing
Figure 2-20
Menu Text - Status Only
Figure 2-21
Menu Text - Disabled
