How to Use - Fine Adjustment of the Incubator
[Fine-adjustment mode]
The fine-adjustment mode allows fine adjustment of the temperature sensor, setting of PID control
parameters, and fine adjustment of the CO
2
and O
2
sensors.
Press and hold ESC/SILENCE for 1 second or longer to move to the fine-adjustment mode.
If no operations are performed for about 10 seconds in the setting mode, the normal display mode is
restored.
Each adjustment setting can be made for each of channel numbers "ch 1" to "ch 9" (for each
incubation chamber). First, select the channel number to be adjusted.
1-7 Temperature Control ON/OFF setting.
* Normally, do not change this setting.
Press and hold ESC/SILENCE for 1 second or longer to display temperature fine-adjustment
mode indication .
When in this display, press SET, so that channel number is shown on the
temperature indication section.
Press UP or DOWN to display the channel number to be set, and then press SET to
switch to ON/OFF setting indication.
To change the current setting, press SET again to make the ON/OFF setting indication flash,
and then press UP or DOWN to select ON or OFF. After changing the setting, press
SET to complete the setting.
To return to the previous layer of the setting item, press ESC/SILENCE.

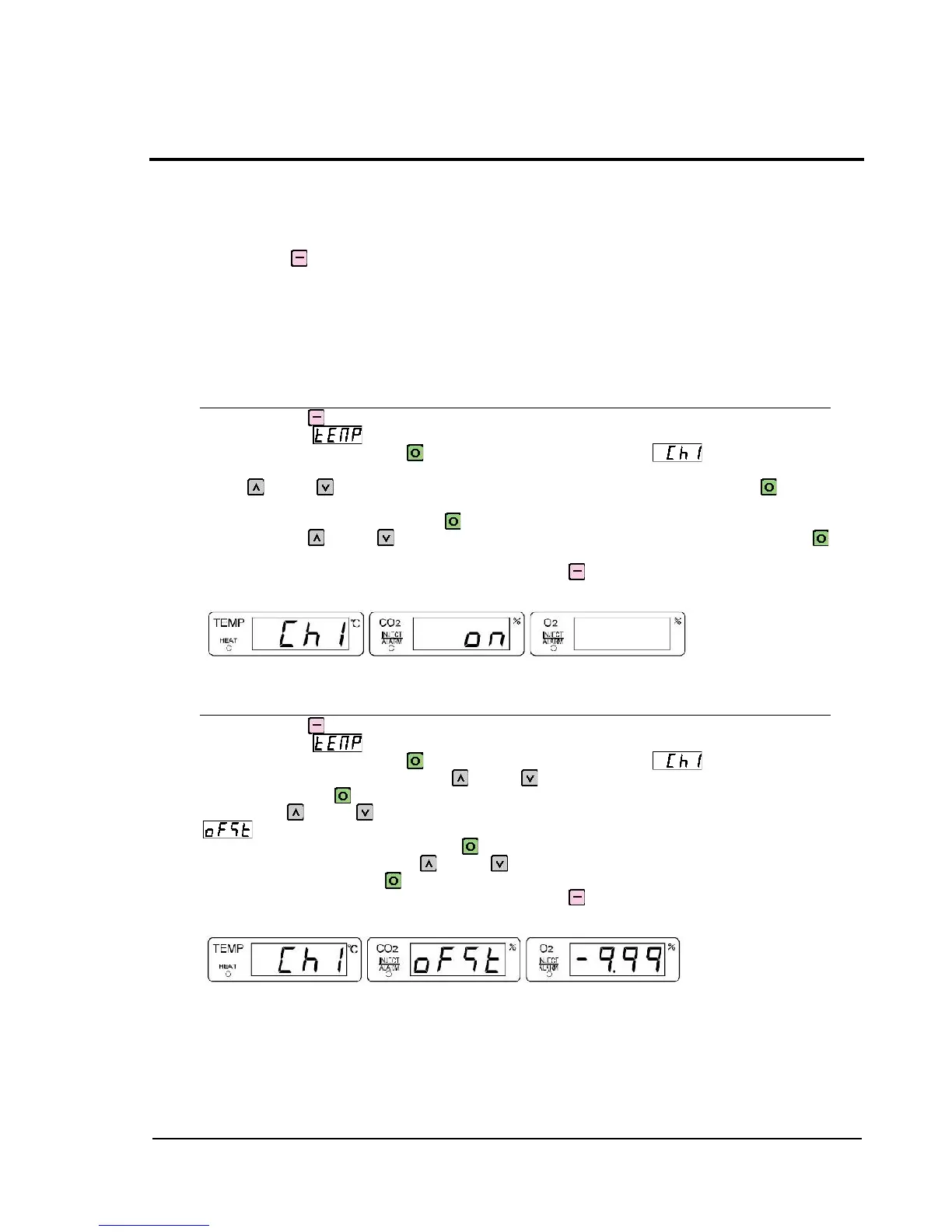

Example of temperature control ON/OFF indication (Numeric value: Shown for reference)
1-8 Temperature Offset Setting
Press and hold ESC/SILENCE for 1 second or longer to display temperature fine-adjustment
mode indication .
When in this display, press SET, so that channel number is shown on the
temperature indication section. Press UP or DOWN to display the channel number to be
set, and then press SET to switch to ON/OFF setting indication.
Then, press UP or DOWN to switch the indication to temperature offset setting indication
.
To change the current setting, press SET again to make the temperature offset setting
indication flash, and then press UP or DOWN to select the desired offset value. After
changing the setting, press SET to complete the setting.
To return to the previous layer of the setting item, press ESC/SILENCE.
Example of temperature offset setting indication (Numeric value: Shown for reference)
