1-12 Temperature Control ARW (anti-reset wind-up) Setting
* Normally, do not change this setting.
Press and hold SILENCE for 1 second or longer to display temperature fine-adjustment
mode indication .
When in this display, press SET, so that channel number is shown on the
temperature indication section. Press UP or DOWN to display the channel number to be
set, and then press SET to switch to ON/OFF setting indication.
Then, press UP or DOWN to switch the indication to temperature control ARW setting
indication .
To change the current setting, press SET again to make the temperature control ARW setting
indication flash, and then press UP or DOWN to select the desired ARW value. After
changing the setting, press SET to complete the setting.
To return to the previous layer of the setting item, press SILENCE.

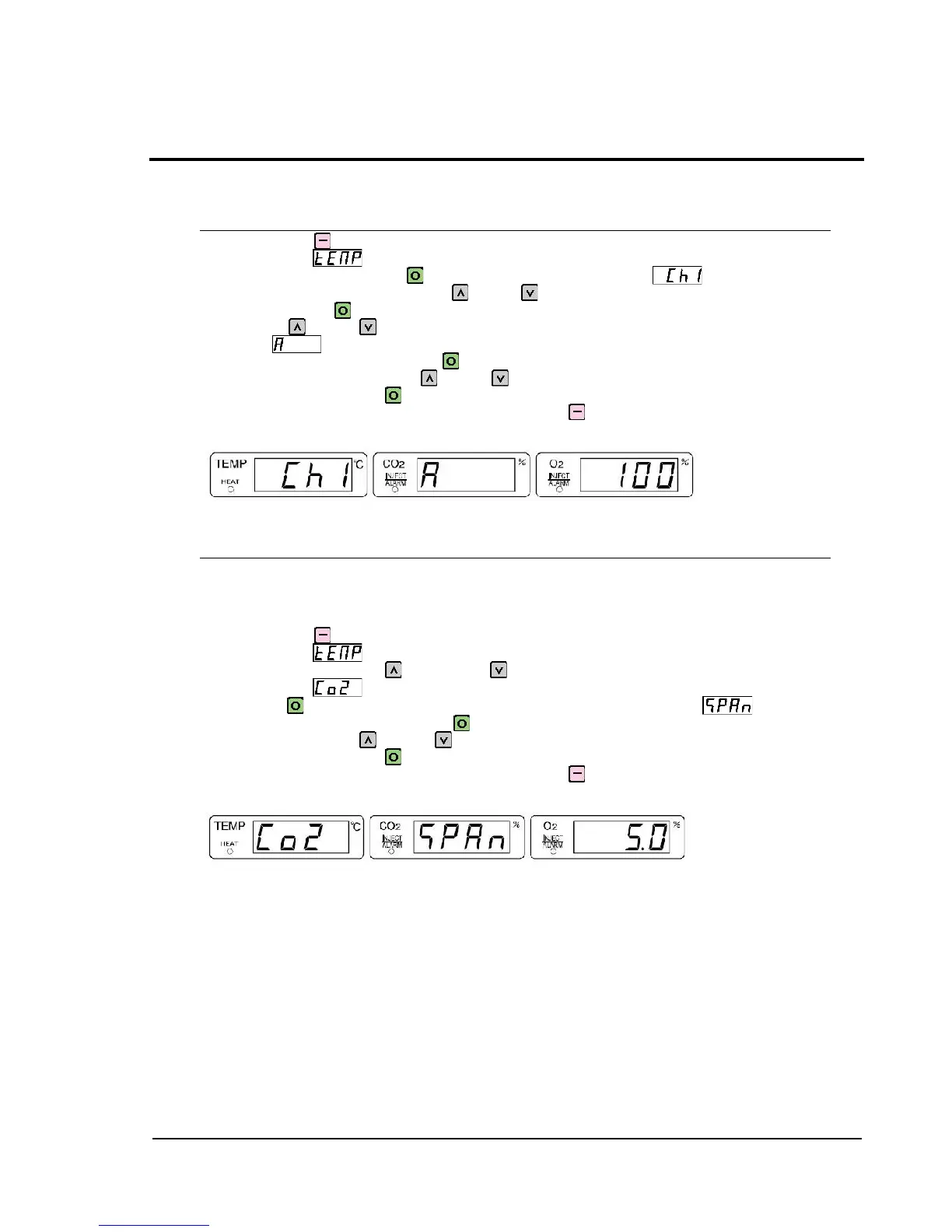

Example of temperature control ARW setting indication (Numeric value: Shown for reference)
1-13 CO
2
SPAN Setting
CO
2
SPAN setting allows to set the output of the CO
2
sensor and the gradient of indicated values.
The setting value regarding CO
2
SPAN is an actual-concentration value measured with an
instrument such as a gas analyzer when CO
2
gas with a specific concentration (e.g., 5%, 6%) is
flowed.
Press and hold SILENCE for 1 second or longer to display temperature fine-adjustment
mode indication .
When in this display, press UP once or DOWN five times to display CO
2
fine-adjustment
mode indication .
Then, press SET to switch the indication to CO
2
SPAN setting indication .
To change the current setting, press SET again to make the CO
2
SPAN setting indication
flash, and then press UP or DOWN to select the desired CO
2
SPAN value. After
changing the setting, press SET to complete the setting.
To return to the previous layer of the setting item, press SILENCE.
Example of CO
2
SPAN setting indication (Numeric value: Shown for reference)
