ASTEC CCM-iBIS - Flowchart of O 2 Concentration Setting

How to Use - Fine Adjustment of the Incubator
31

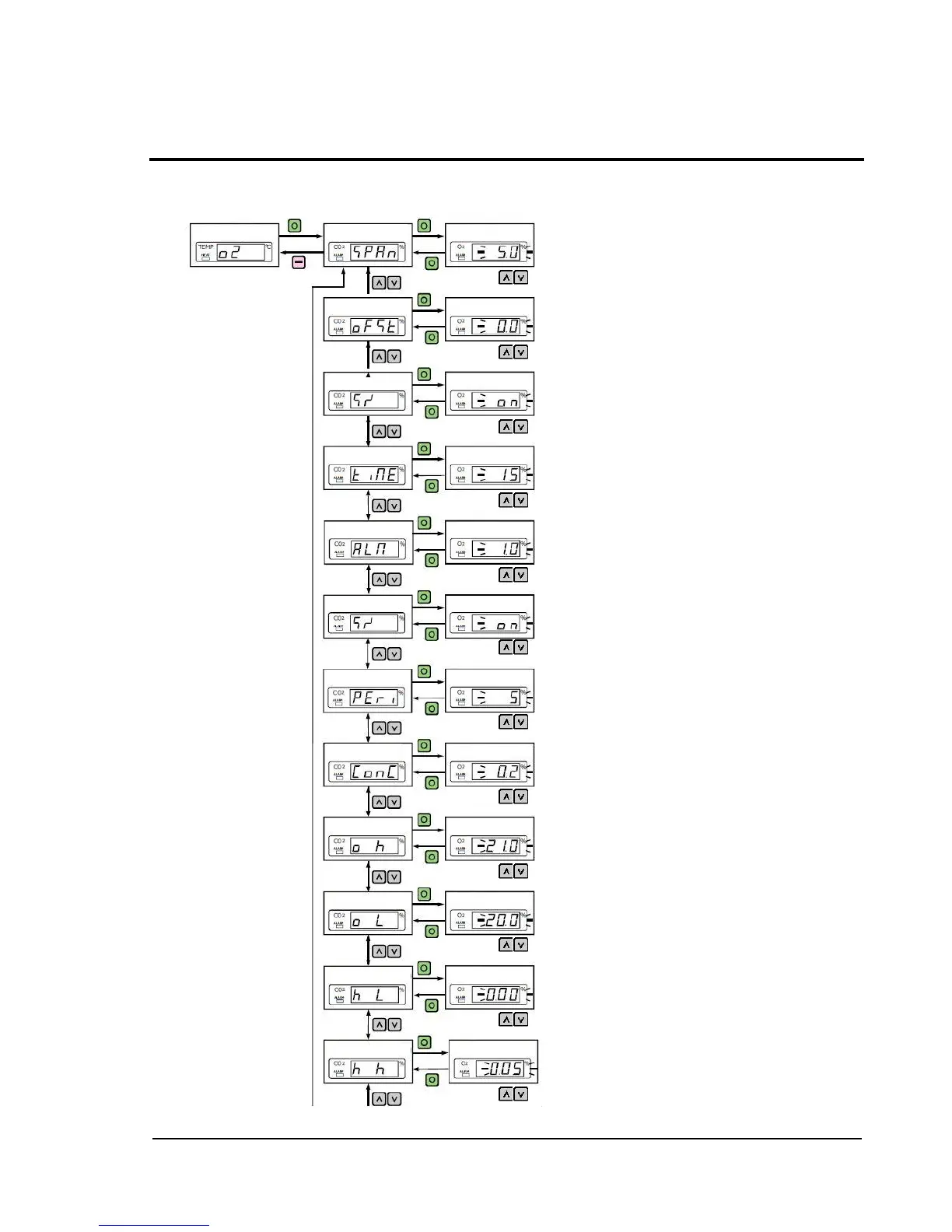

1-25 Flowchart of O
2
concentration setting
O
2
concentration
setting
O
2
span setting
Increase by 0.1
(Unit: %)
Change with
Change with
Change with
Change with
Change with
Change with
Change with
Change with
Change with
Change with
Change with
O
2
offset setting
Increase by 0.1
(Unit: %)
Use of O
2
alarm
ON/OFF
O
2
alarm time
Increase by 1
(Unit: minute)
O
2
alarm range
Increase by 0.1
(Unit: %)
Use of O
2
control
ON/OFF
O
2
control cycle
Increase by 1
(Unit: second)
Increase by 0.1
(Unit: %)
O
2
control start
concentration
Increase by 0.1
(Unit: %)
O
2
output upper-limit
Increase by 0.1
(Unit: %)
O
2
output lower-limit
Increase by 0.1
(Unit: %)
O
2
hysteresis L
(open)
Increase by 0.1
(Unit: %)
O
2
hysteresis H
(close)
Change with
