Ch. 10. Environmental Scanner Overview Sec. 10.2. Terminology

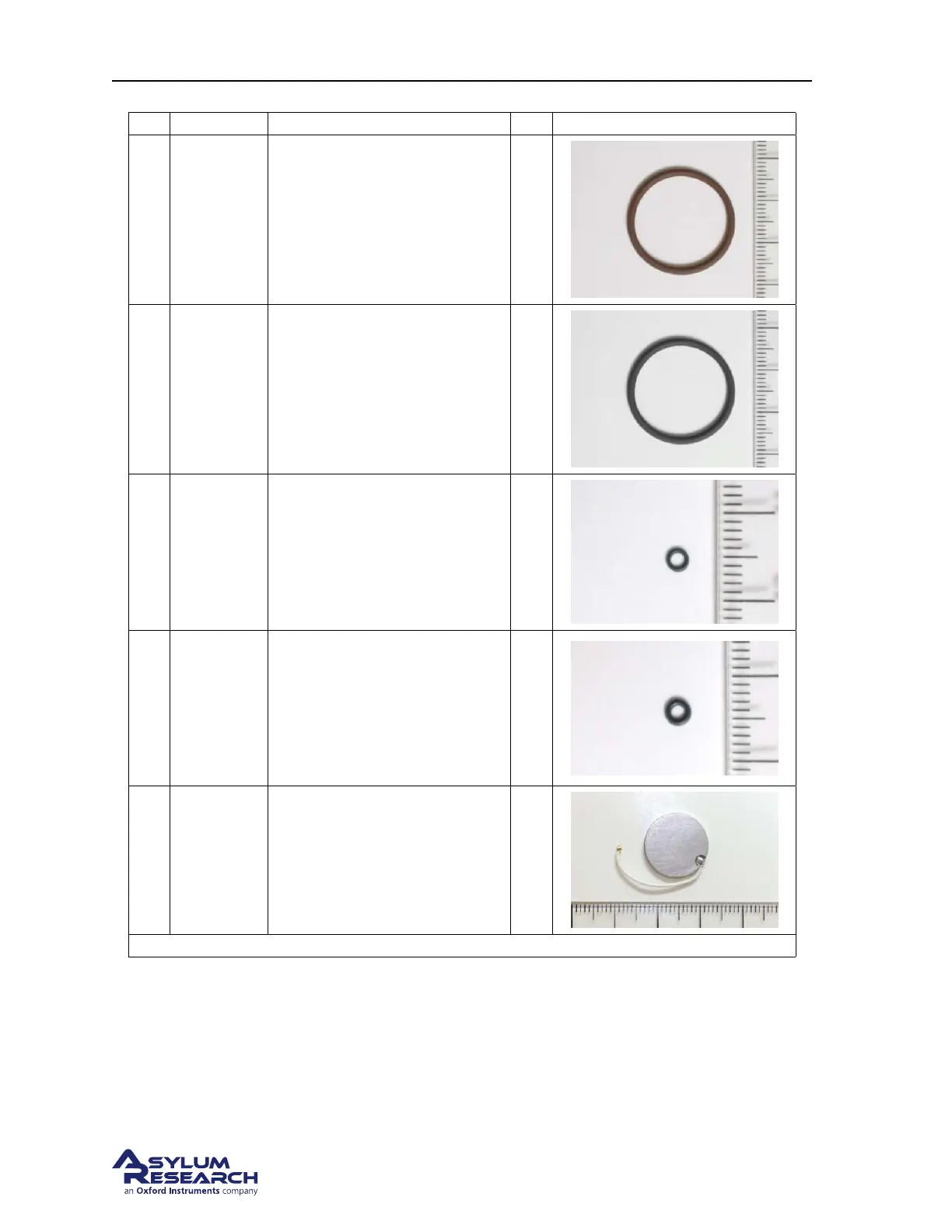

Itm Part # Item Description Qty Picture
31 230.044
O-ring, 0.75"ID X 1"OD Viton,
Durometer 75A. Equivalent
FFKM part is 230.038. Standard
AS568-020 size, can also be
purchased from other vendors.
Sits around cantilever holder
perimeter.
2?
32 230.038
O-ring, 0.75"ID X 1"OD Kalrez
6375, Durometer 75A.
Equivalent FKM part is 230.044.
Standard AS568-020 size, can
also be purchased from other
vendors. Sits around cantilever
holder perimeter.
1
33 230.050
O-ring, 0.022" C/S X 0.063” ID
x 0.107” OD, FFKM, 75A
Durometer. Custom size, only
available from Asylum
Research. Equivalent FKM part
is 230.040. Used to seal the
chamber side ports. For use,
2
34 230.051
O-ring, 0.032" C/S X 0.062” ID
x 0.126” OD, FFKM, 75A
Durometer. Custom size, only
available from Asylum
Research. Equivalent FKM part
is 230.039. Used to seal the
cantilever holder clip. For use,
1
35 448.140
Electrical Sample Puck
Assembly. Used to electrically
bias or ground a sample.
Includes Puck Bias Lead wire
(448.139) and Modified 000-120
screw (114.853).
2
The scale in the photos is in cm and mm.
* These items are only likely to be used for fluid perfusion experiments which require a perfusion
capable cantilever holder and a fluid compatible sample stage .
