Ch. 10. Environmental Scanner Overview Sec. 10.1. Parts list

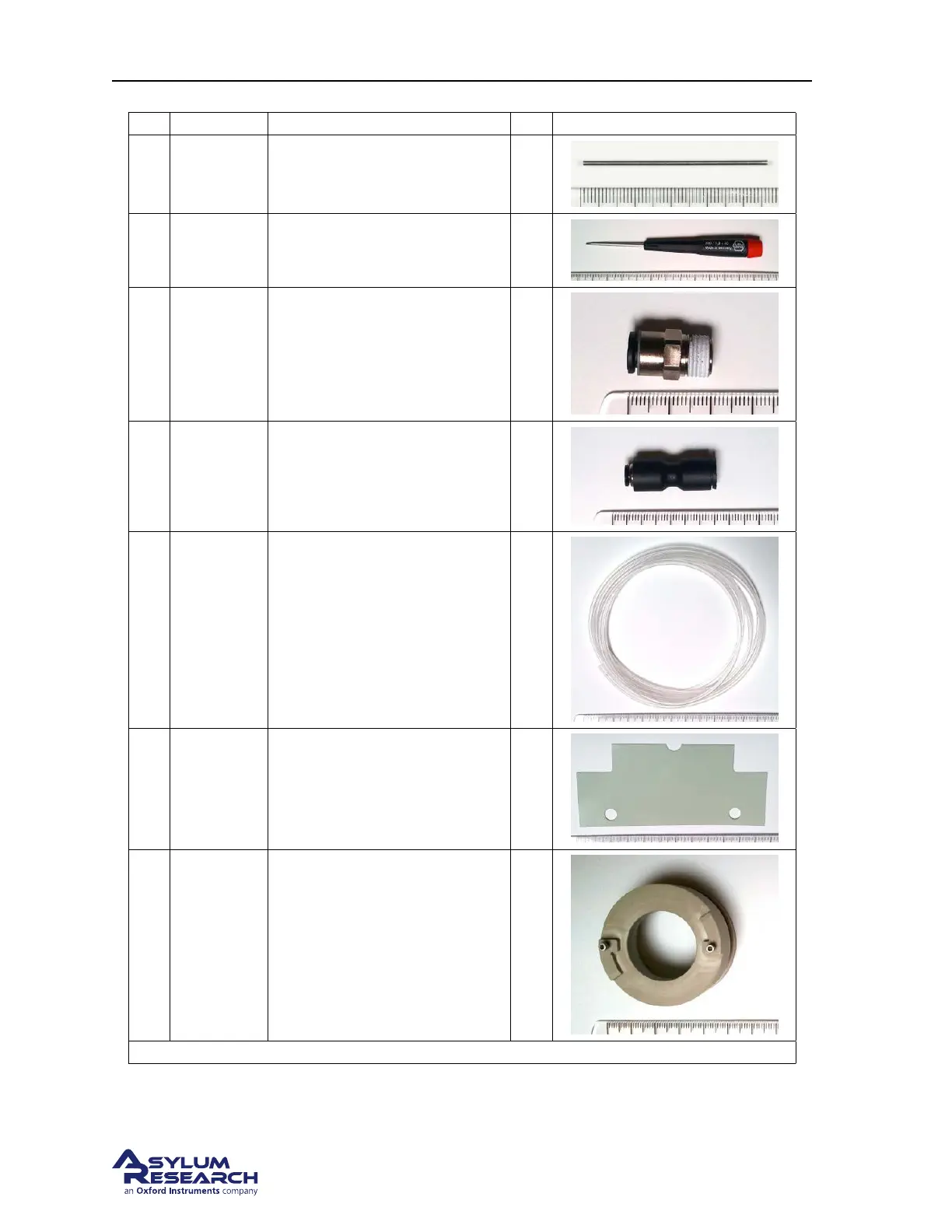

Itm Part # Item Description Qty Picture
24 222.077
1/16” dowel pin. Used to restore
slightly compressed fitting parts.
2
25 290.168
1.8mm slotted screwdriver. Used
to fasten the sample stage
membrane to the cell body.
1
26 232.017
1/8” NPT X 6mm tubing
connector. Used to connect 6mm
tubing to gas flow rotameter.
1
27 232.018
1/8” X 1/4” union. Used to
connect 1/4” tubing to gas flow
rotameter.
1
28 xxx.xxx
1/8” OD X 1/16” ID vinyl
tubing. Used to connect to the
gas flow rotameter.
6
ft
29 114.801
Thermal pad, spare. Adheres to
the back of the environmental
scanner. Use as a replacement in
case the original is damaged.
1
30 114.820
Cantilever holder cleaning cup.
Used to rinse and clean the
cantilever holders while not
causing damage to the circuit
board.
1
The scale in the photos is in cm and mm.
DRAFT
Page 119
