Ch. 10. Environmental Scanner Overview Sec. 10.3. Cypher ES Quick Reminder List
5.

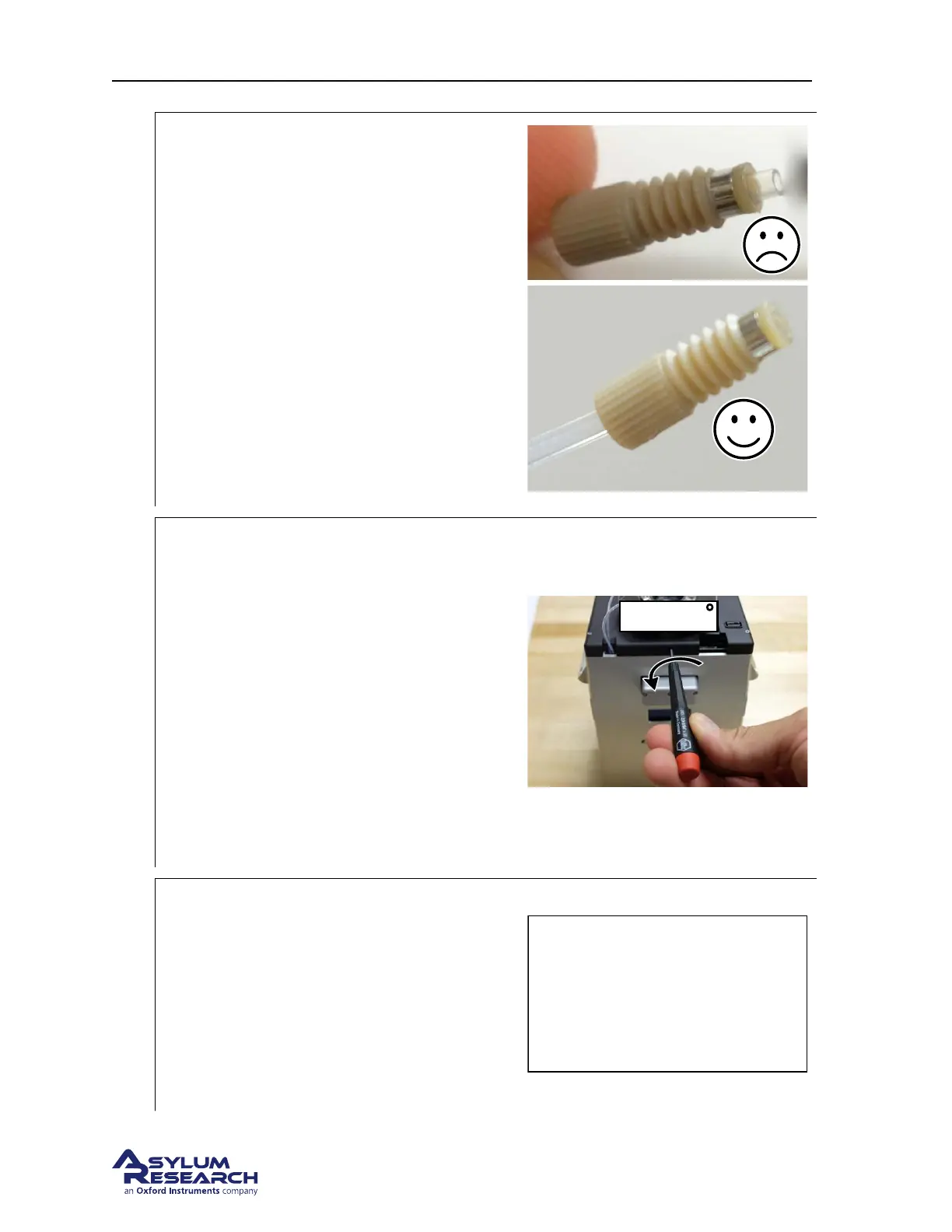

Remember to cut off extra tubing before
connecting gas lines to the cell body.
• If you are using a Cypher ES that
shipped before 2014 it is likely that you
need to cut off the extra length of tubing
that extends past the end of the ferrule
on the gas lines.
• Cut the tubing so that is flush with the
ferrule. You only need to do this for the
end of the line that connects to the cell
body.
• Failure to cut off the tubing will not
break anything, but it will make it much
more difficult to get a good seal between
the gas line and the cell body.
6.
When unlocking the sample stage from the
scanner you only need 3 turns.
• To unlock the sample stage from the
scanner, turn the locking screw
counter-clockwise three turns.
• Turning the locking screw more than
three turns may cause the screw to come
all the way out.
• If the screw comes all the way out, you
may need to lean the scanner forward
until the screw slides out to a place
where you can put it back on the
wrench.
7.
Don’t apply more than 200mbar pressure to
the cell.
• When checking for leaks in the cell, it is
useful to apply pressure to the chamber
by using a syringe.
• Don’t pressurize the chamber over
200mbar as higher pressures may
damage the diaphragm.
