Ch. 13. Cell Body and Sample Stage Guide Sec. 13.2. Sample Stage Guide

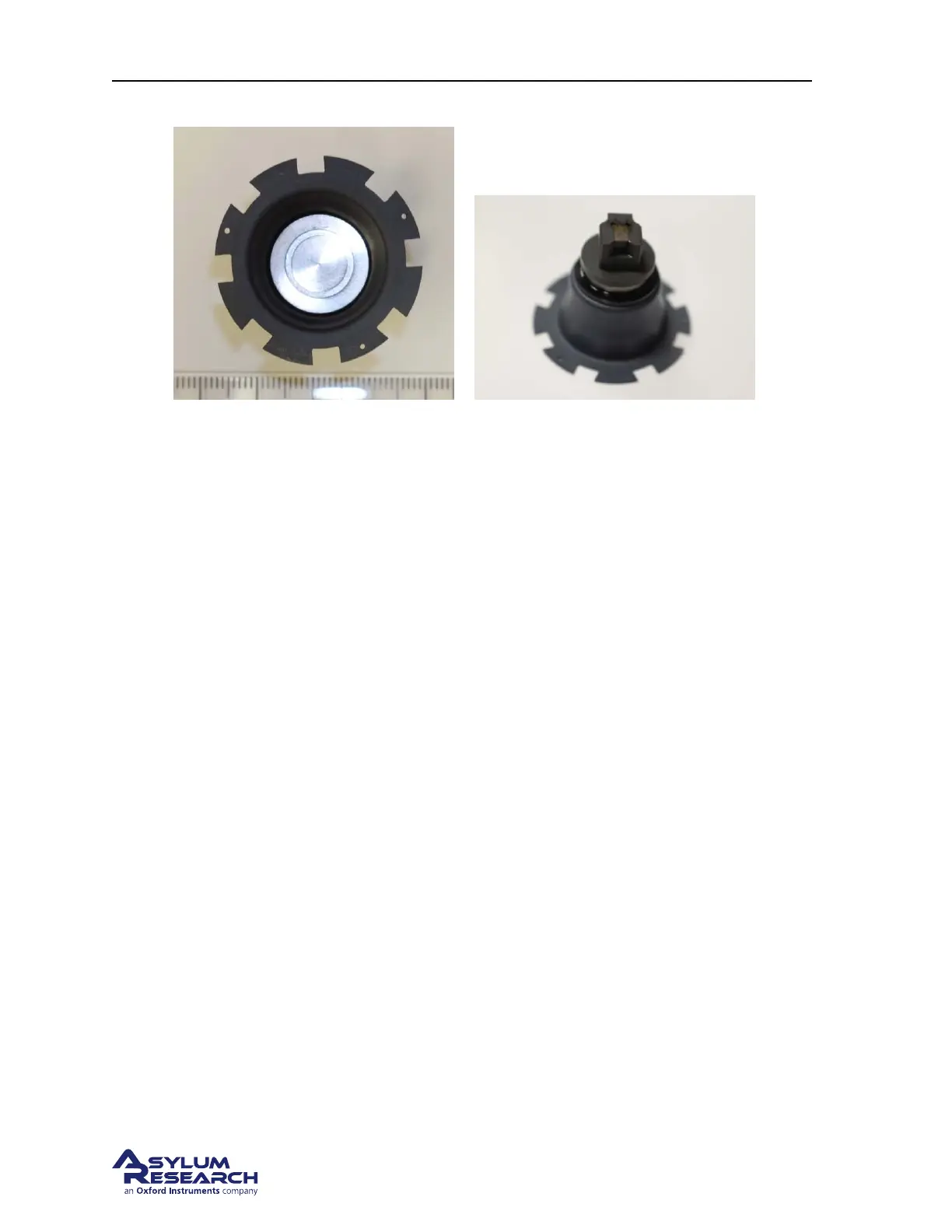

(a) Top Surface (b) Bottom View
Figure 13.3.: Ambient Stage
Membrane: FFKM.
Stage surface: Stainless Steel
Sample Hold down: Embedded magnets.
Electrical: Stage surface is not grounded (floating) and sufficiently isolated to be safe for use with
high voltage applications. .
Cleaning: The whole stage can be immersed or sonicated in ethyl or isopropyl alcohol or water.
Liquid use: Safe for use with samples in liquid droplets.
13.2.3. Heater Sample Stage
The ambient sample stage is the first choice for imaging at room temperature
13.2.3.1. Parts list
There are no associated parts. The stage comes by itself and has part number 901.747.
13.2.3.2. Specifications
Exposed Materials:
Membrane: FFKM.
DRAFT
Page 156
