Ch. 13. Cell Body and Sample Stage Guide Sec. 13.2. Sample Stage Guide

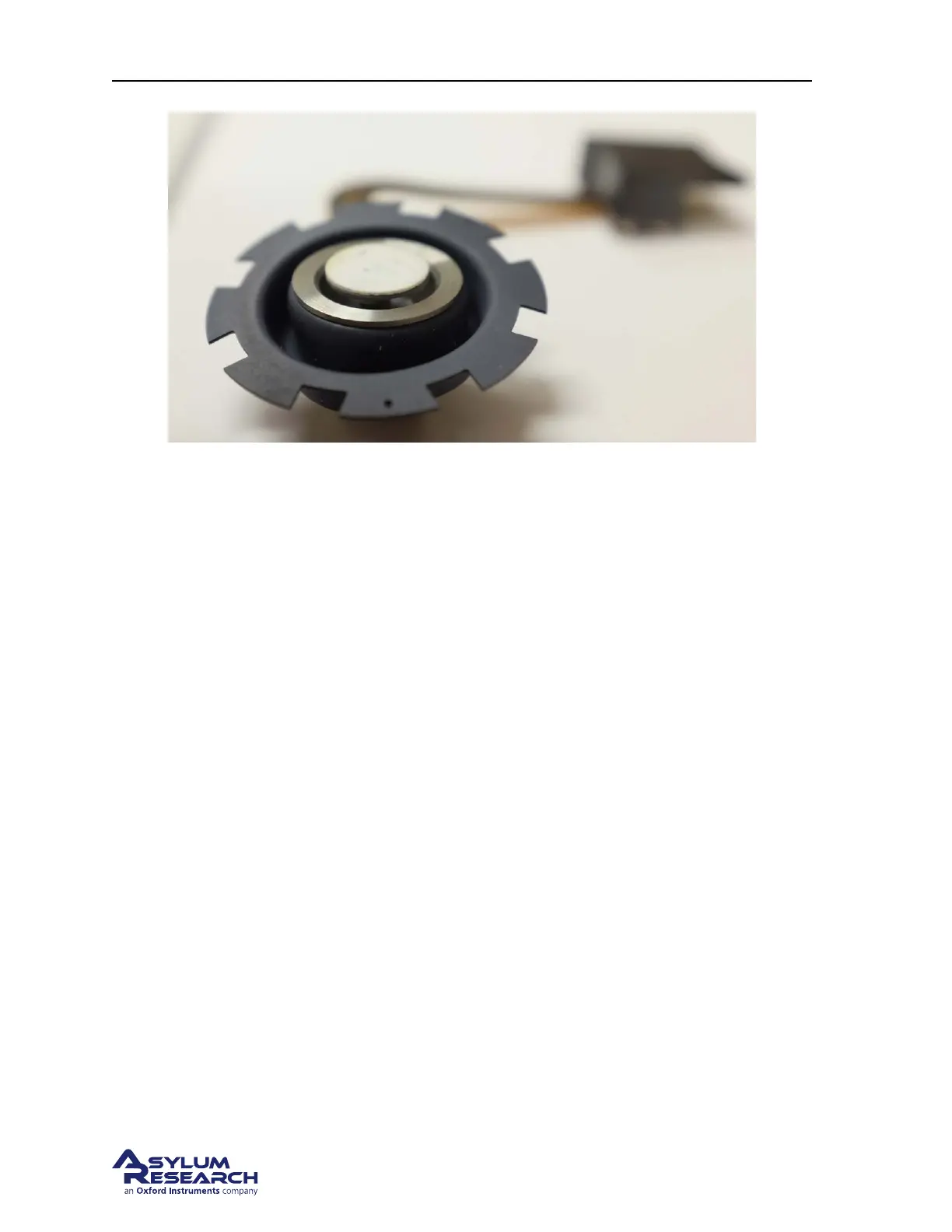

Figure 13.4.: Heater Stage
Stage surface: Ceramic.
Other surfaces: Stainless steel, Epoxy.
Sample Hold down: Embedded magnets.
Electrical: Stage surface is not grounded (floating) and sufficiently isolated to be safe for use with
high voltage applications. .
Cleaning: Only wipe the sample stage with a swab dampened with alcohol.
Temperature range: Ambient to 250CºC as measured by a sensor embedded several 0.5mm below the
surface on which the sample sits.
Liquid use: Not for use with any kind of fluid. Only use in air or with inert gas purge.
13.2.4. Cooler Heater Sample Stage
The ambient sample stage is the first choice for imaging at room temperature
13.2.4.1. Parts list
There are no associated parts. The stage comes by itself and has part number 901.748.
