Ch. 13. Cell Body and Sample Stage GuideSec. 13.3. Sample Stage / Cell Body Disassembly

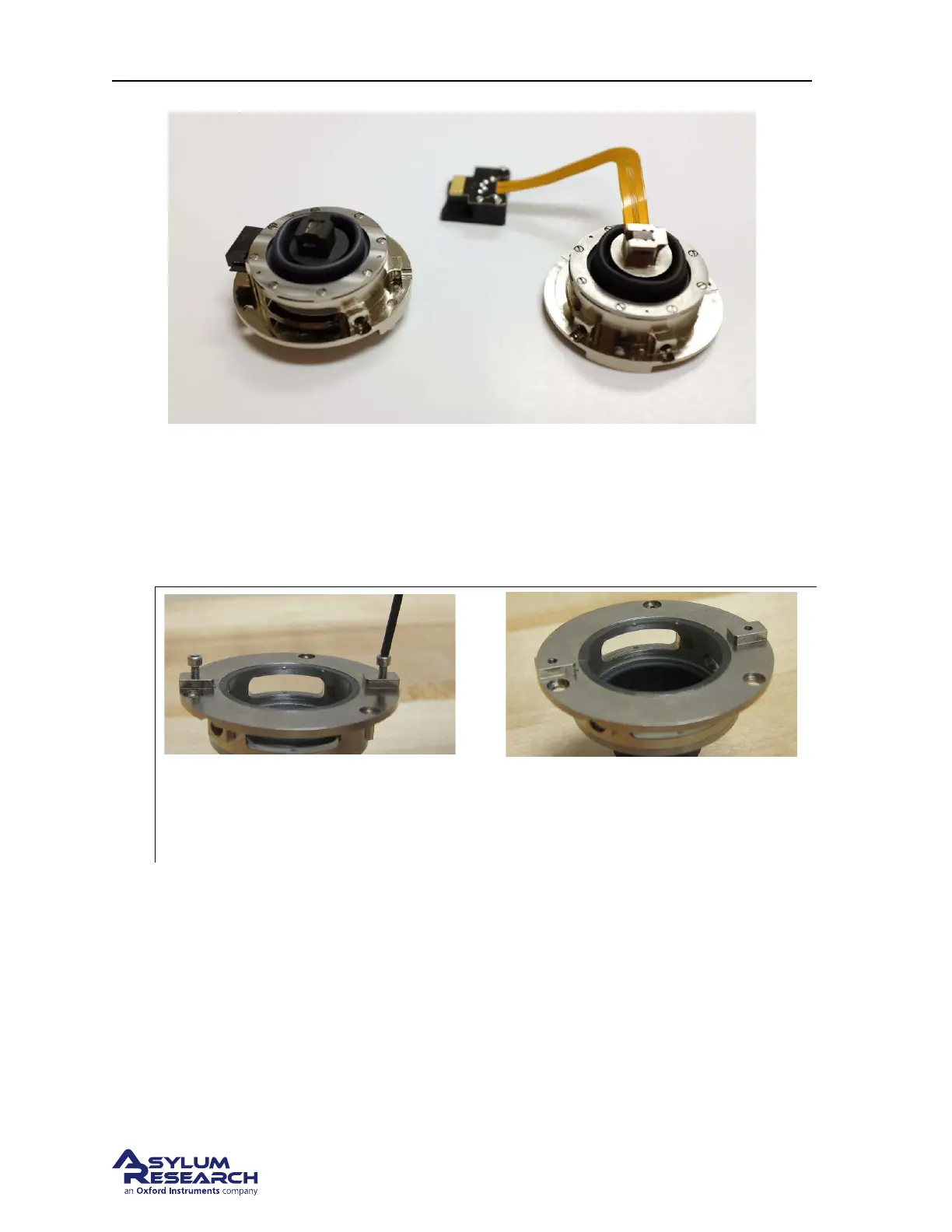

Figure 13.6.: Ambient stage / fluid cell body combination on the left. Heater stage / gas cell body combi-
nation on the right.
13.3.1. Separate Sample Stage and Chamber
1. Locate the 1.7mm slotted screwdriver and a pair of curved tweezers.
2.
Remove screws:
• Remove the two cantilever locking screws as shown and lay them aside.
DRAFT
Page 159
