Ch. 3. Standard Scanner Overview
Standard scanner is designed primarily for imaging in ambient conditions, either in air or in a liquid
droplet. The optical access to the sample and cantilever is superior to other cypher scanner models.
Many Standard Scanner cantilever holders allow for a variety of imaging modes. See
Chapter 5 on
page 49 for more information.
The Scanner itself comes in regular and high voltage models.
Figure 3.2 on page 16 shows the a
magnetic high voltage contact and specialized cantilever holder with high voltage connection to the tip.
This arrangement is typically use for PFM techniques. This topic is covered in depth in Applications
Guide, Chapter: PFM Using DART and Applications Guide, Chapter: Single Frequency PFM.

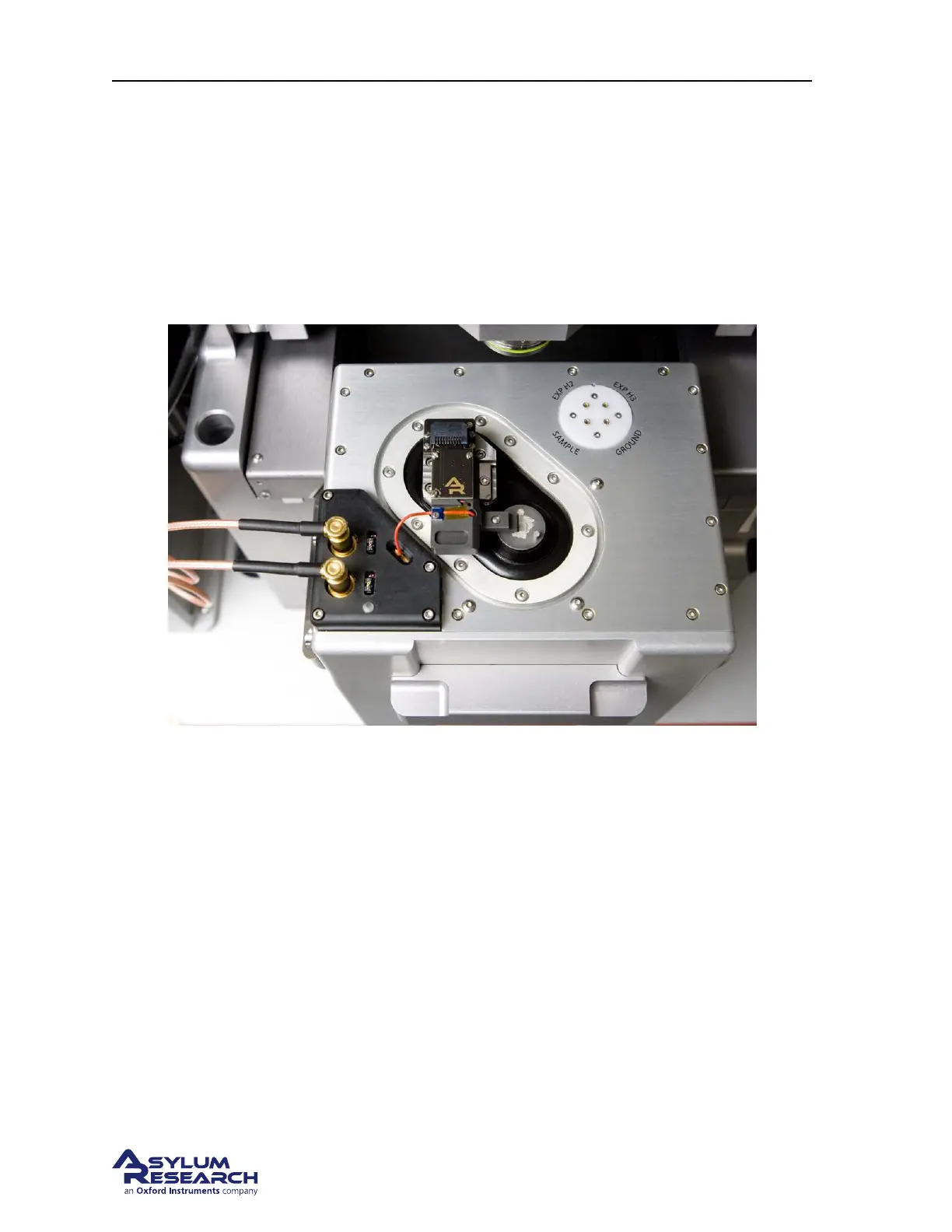

Figure 3.2.: Detailed view of the high voltage option.
