Ch. 18. Laser Sources Sec. 18.4. Troubleshooting
4.

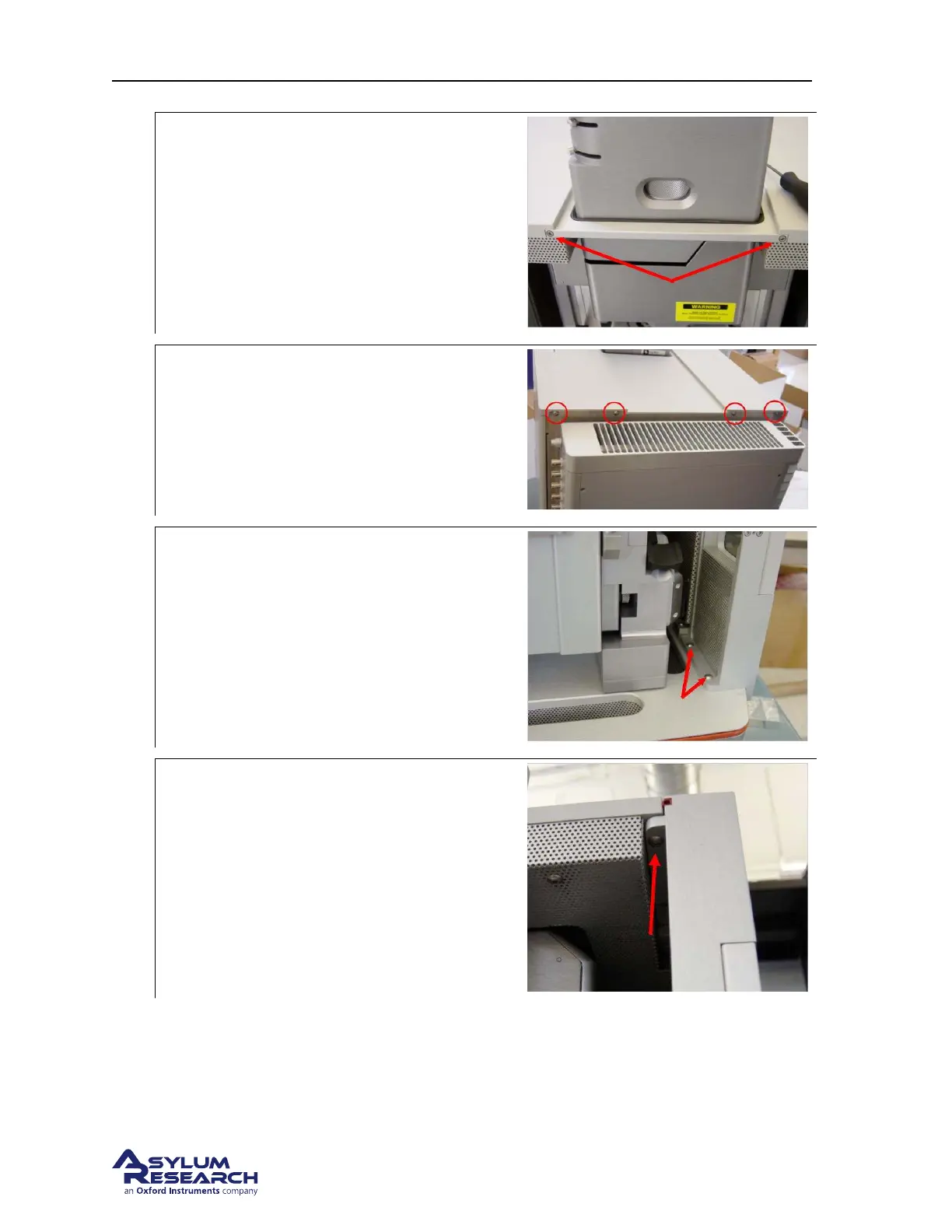

Remove Bracket:
• Take out two screws on the bracket in
front of the view system.
• After removing both screws pull this
piece out and set aside.
5.
Remove backside screws:
• Remove all 4 screws from back edge of
the enclosure top plate. They are visible
above the backpack.
SCREW INFO: 8-32 x ¼ BHCS SS
6.
Unscrew right door bottom:
• Unscrew 2 screws in the right door on
the bottom and set aside.
SCREW INFO: 8-32 x ½ BHCS SS
Note: There may only be 1 screw.
7.
Unscrew right door top:
• Unscrew right door top inside screws
and set aside.
SCREW INFO: 8-32 x ½ BHCS SS.
Note There may only be 1 screw.
