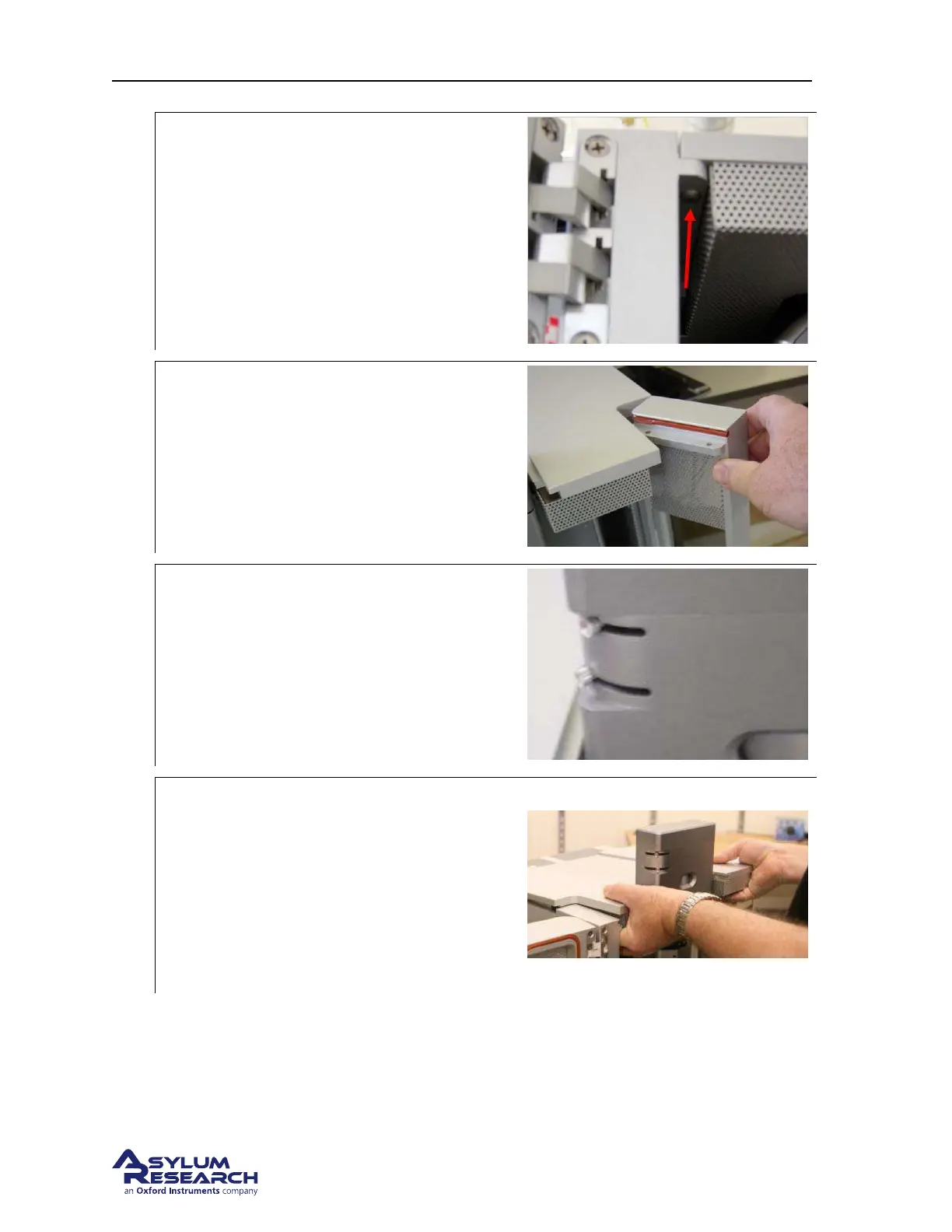

Unscrew right door top:
• Unscrew left door top inside screws and
set aside.
SCREW INFO: 8-32 x ½ BHCS SS.
Note There may only be 1 screw.
9.
Open right enclosure door:
• Fully open the right enclosure door.
10.
Adjust view system sliders:
• Adjust the view system slider controls
to their half-way positions. This puts
them safely out of way of the top cover.
11.
Remove enclosure top:
• Lift upward while wiggling to remove
the enclosure top. Set aside.
Note Don’t pull forward. The SPM
instrument is not secured inside the enclosure
and if it moves you may disconnect circuit
board connections.
