Ch. 21. Shipping or Moving Sec. 21.4. Shipping a Complete Cypher AFM System
21.4.1. Scanner: Removal and Packaging
Materials
991.001: Carton: 10”x10”x10”
990.035: Foam: (Scanner)
Tools Asylum Par# 290.111: 0.050” Hex Driver.
Final Wt 14 lbs / 6 kg
Minimum Preparation System Shut Down: (
Section 21.3 on page 238)

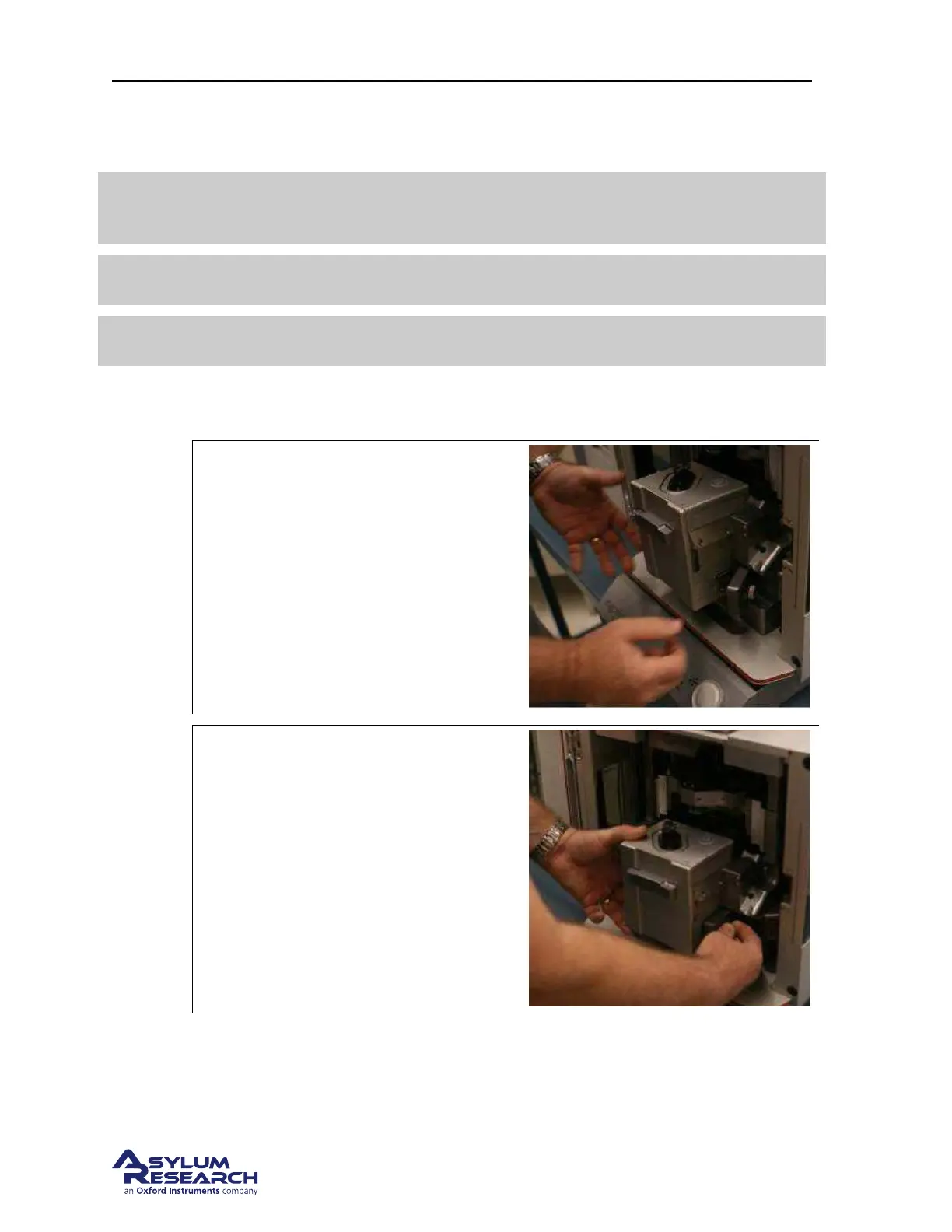

1. Remove the Scanner from the Enclosure.
a)
• Lift the lever located to the right of the
scanner.
• Gently pull scanner out ¾ way and
stop. It cannot fall out as it is attached
to a cable.
b)
Unscrew the scanner connector cable on
the right side of scanner, and loosen the
knob to release it.
