Ch. 6. Fluid Imaging in a Droplet Sec. 6.6. Cleaning and Repair

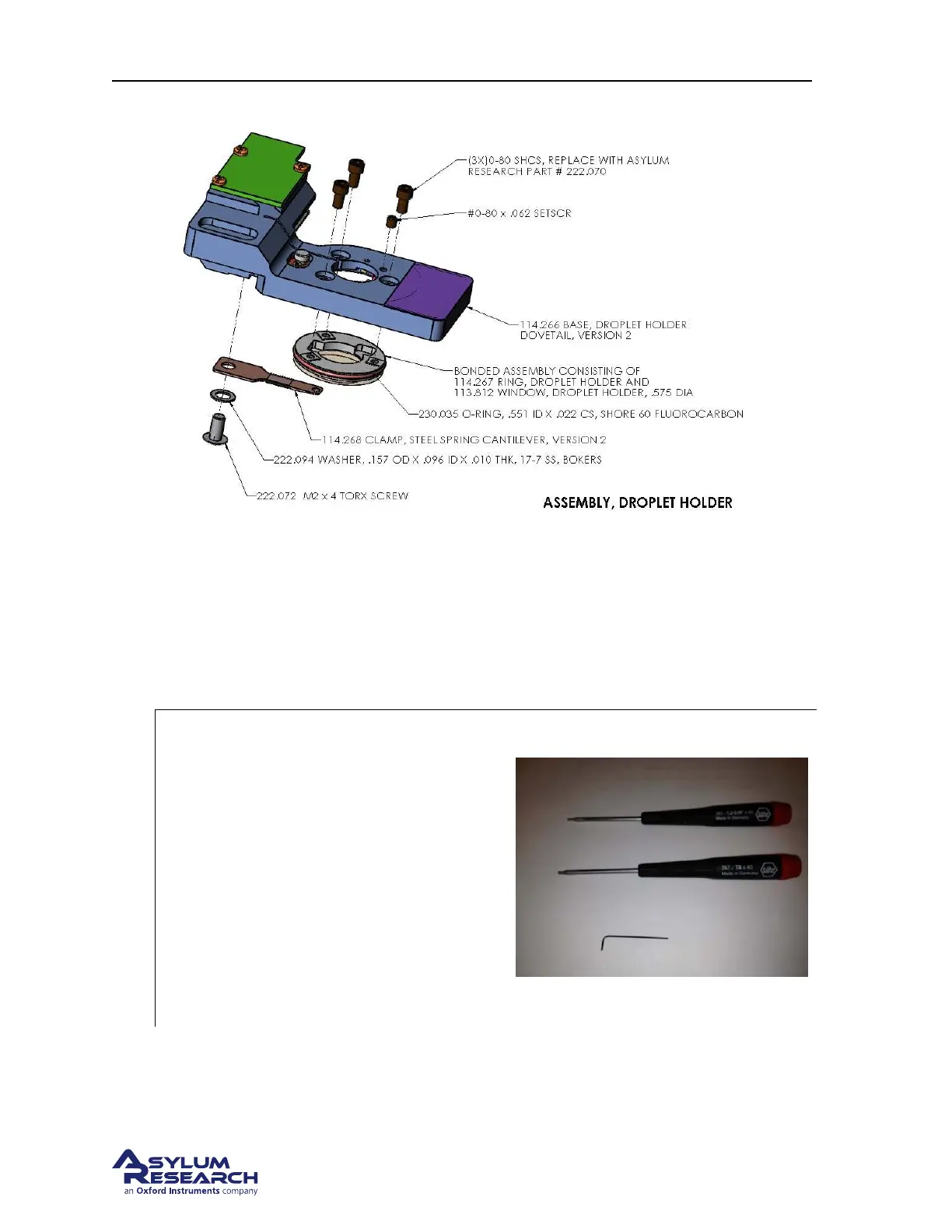

Figure 6.3.: Droplet Cantilever Holder Assembly Overview
• Use only 0-80 x 7/64” Socket Head Cap Screws to attach the window assembly.
• Use only 0-80 x 1/16” Cup Point Socket Set Screws for the piezo preload screw.
Due to wear and tear of use, the droplet holder accessory kit comes with replacement screws. Please
contact Asylum Research for additional hardware if proper replacements cannot be obtained locally.
1.
Required tools and fasteners:
• 0.050” hex driver or Allen wrench for
the 0-80 x 7/64” socket head screws to
attach the window assembly.
• T5 x 40Torx driver for removing the
cantilever clip
• 0.028” hex driver or Allen wrench for
the 0-80 x 1/16” Cup Point Socket Set
Screws for the piezo preload screw.
Warning Using other fasteners than those
specified will damage your equipment.
