Chapter 6 – Error messages
UM-22100H-U User manual ATEQ D520 Page 112/122

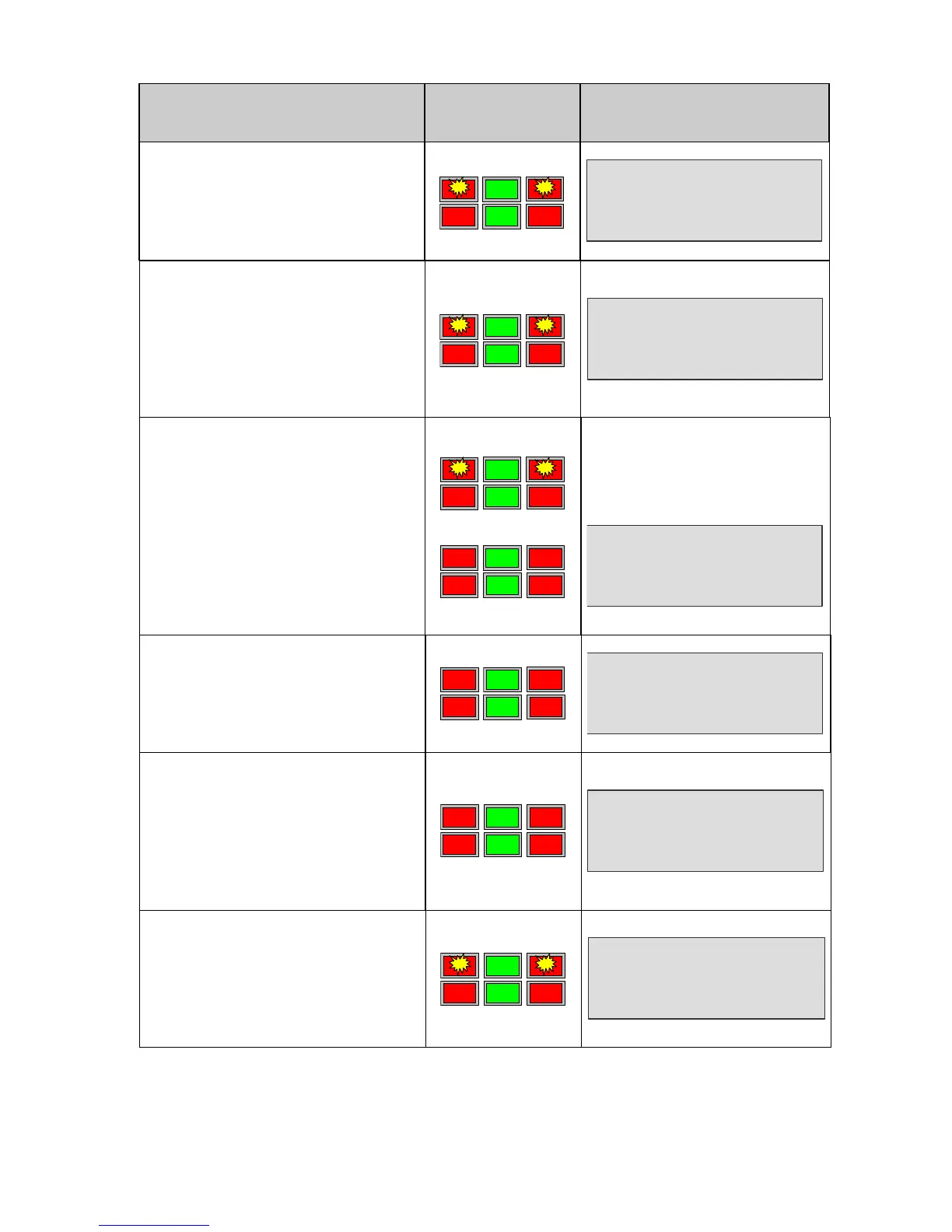

PROBLEM
LIT
INDICATORS
MESSAGE DISPLAYED
CAL fault : no CAL learning
Action: carry out CAL learning
<
>
CYCLE/P
r:
001
PRESS = 20.5 mbar
DEBIT = CAL. ERROR
READY (NO OK)
CAL drift found following request
for CAL check.
Action: check the programmed
percentage of CAL drift, the known
standard leak and the test
pressure.
<
>
CYCLE/P
r:
001
PRESS = 20.4 mbar
DEBIT = CAL. DRIFT
READY (NO OK)
1) The electronic regulator has
been unable to initialise correctly.
2) The input pressure on the
regulator must be at least 10 % of
regulator full scale + 100kPa (+ 1
bar).
Action: check supply network
pressure or pressure at the
regulator input.
<
>
<
>
The indicator lights come on
briefly after the following
message is displayed:
REGULATOR ERROR
PROG error: the I/O's have
selected a program with no
parameters.
Action: enter program parameters.
<
>
CYCLE/Pr: 09
ERROR
Inappropriate size for the selected
unit of pressure.
Action: change unit or modify the
minimum and maximum pressure
limits if these and the test pressure
can be used with this unit.
<
>
PARAM/P
r
001
>Press. UNIT: PSI
MAX. FILL: PPPP
MIN. FILL: 0.15
The reference master jet drift is
higher than the instruction in
percent.
Action: check the master jet and
realise a "drift acquit" special cycle.
<
>
CYCLE/P
r:
001
PRESS = 20.4 mbar
DEBIT = REF. DRIFT
READY (NO OK)
