Chapter 3 – Start-up and adjustments
UM-22100H-U User manual ATEQ D520 Page 44/122

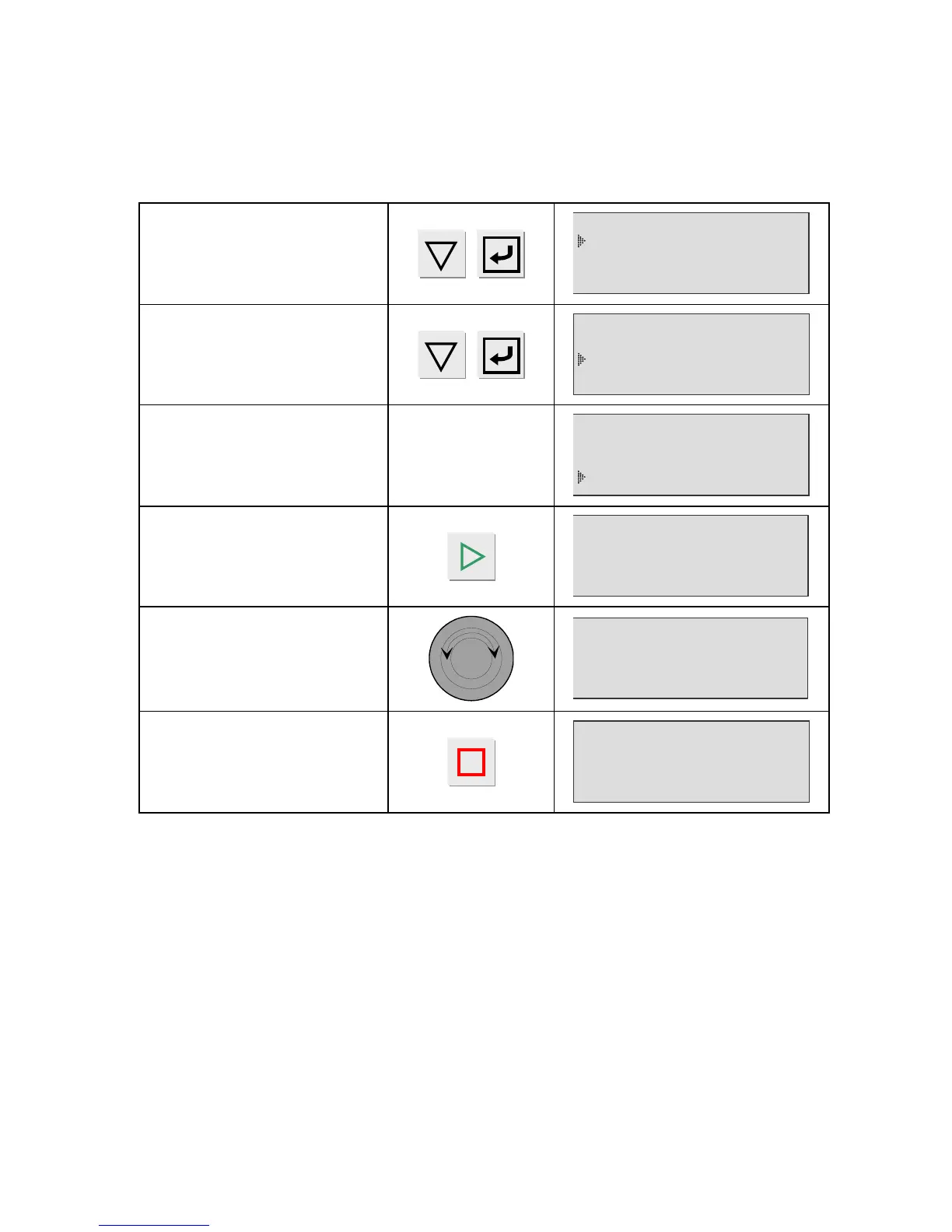

5.2. SETTING THE TEST PRESSURE
5.2.1. Manual setting with a mechanical regulator
Position the cursor in front of
the SPE CYCLE function and
confirm with the ENTER key.
SPE
CYCLE
Disabled
Regulator adjust
Infinite Fill
Next, position the cursor in
front of Regulator adjust and
confirm with the ENTER key.
SPE
CYCLE
Disabled
Regulator adjust
Infinite fill
The display confirms that the
special cycle has been
selected.
MAIN
MENU
RUN PROG. : 001
PARAMETERS
SPE CYCLE :Regul
Press the START key to
launch a special cycle.
RUN/P
r:
001
PRESS = 355.5 mbar
COMPUTE LIMITS
REGULATOR ADJUST
Set the test pressure by using
the regulator.
_
+
RUN/P
r:
001
PRESS = 1000 mbar
COMPUTE LIMITS
REGULATOR ADJUST
Once the pressure is set,
press the RESET key to stop
the special cycle.
RUN/Pr:001
PRESS = 0.000 bar
READY
5.2.2. Setting an instruction with an electronic regulator
5.2.2. 1) Pressure adjustment
When the instrument is equipped with an electronic regulator, the test pressure value is
that which is displayed as the fill instruction. There is no special cycle to be carried out.
To input a fill instruction, refer to the previous paragraph.
Reminder: the input pressure with an instrument fitted with an electronic regulator must
be at least superior by 100 kPa (1 bar) of the test pressure.
