1.

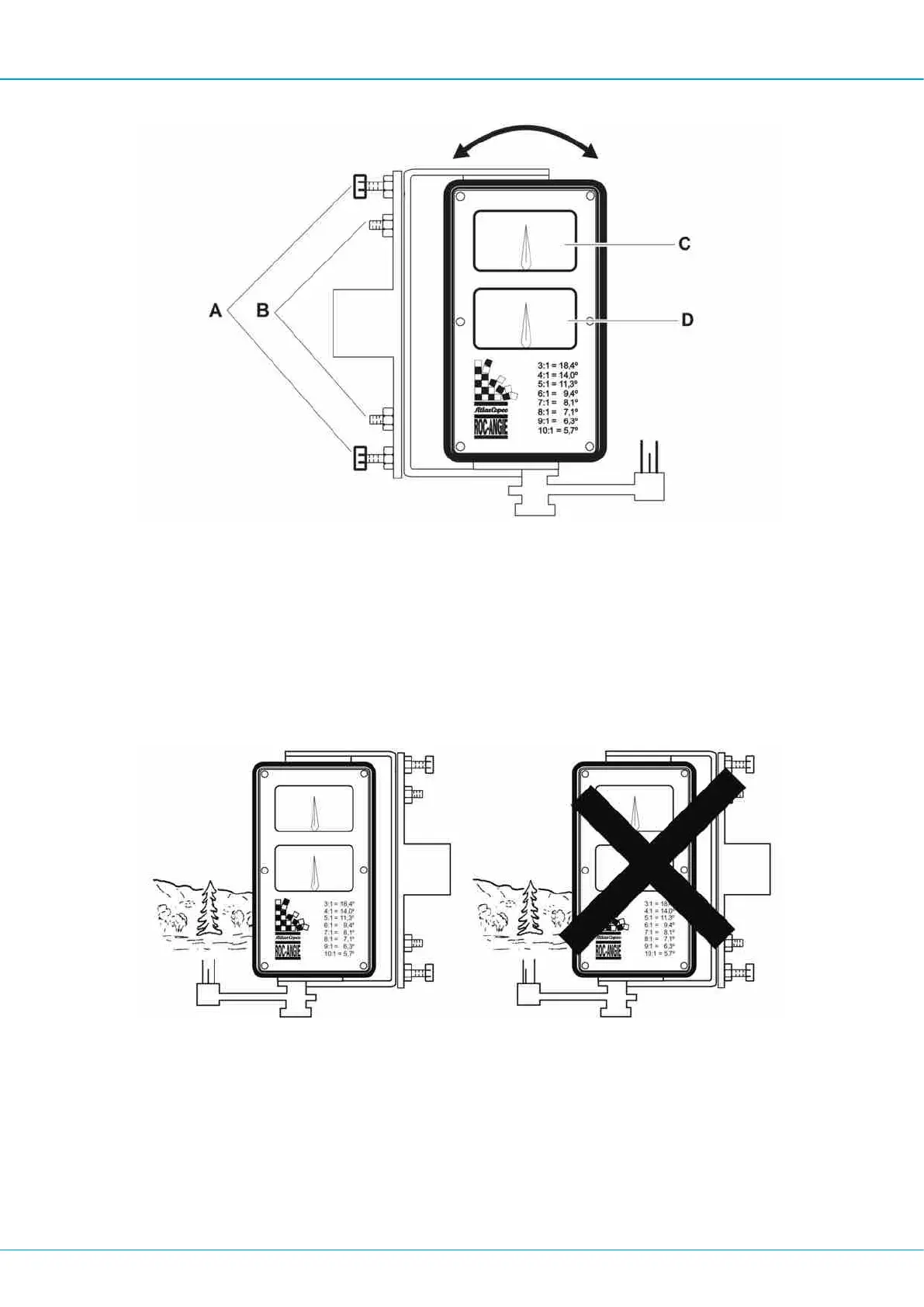

Loosen and retighten all bolts by hand. Look at the upper scale and adjust the left and
right bolts (A) to an exact zero reading on the (C) upper scale. Tighten the left and
right bolts by hand.
2.
Look at the lower scale (D) and adjust ROC-ANGIE forward and rearward to an exact
zero reading. Tighten the forward and rearward bolts (B) by hand. Check left and
right, forward and rearward once again and adjust as necessary. Tighten all bolts us-
ing a torque wrench.
8.4.4 Installing ROC-ANGIE
1.
Choose an aiming point preferably far away.
2.
Loosen the handle on the top of ROC-ANGIE.
3.
Look through the aim. Turn ROC-ANGIE around until the center arrow in the aim is
exactly in the middle of the aiming point and between the two outer arrows.
4.
Adjust the aim or move it to the other side by undoing the knob at the bottom of ROC-
ANGIE if necessary.
5.
Lock the handle.
