Atlas Copco FlexiROC T30 R

FlexiROC T30 R 3 Controls and Instrument
39 No: 2969809547.1.2969824267 en-US
Button Description Function
B Escape Back one step in the menu struc-
ture. Any changes that have
been made in a menu are only
confirmed when Enter is pressed
first.

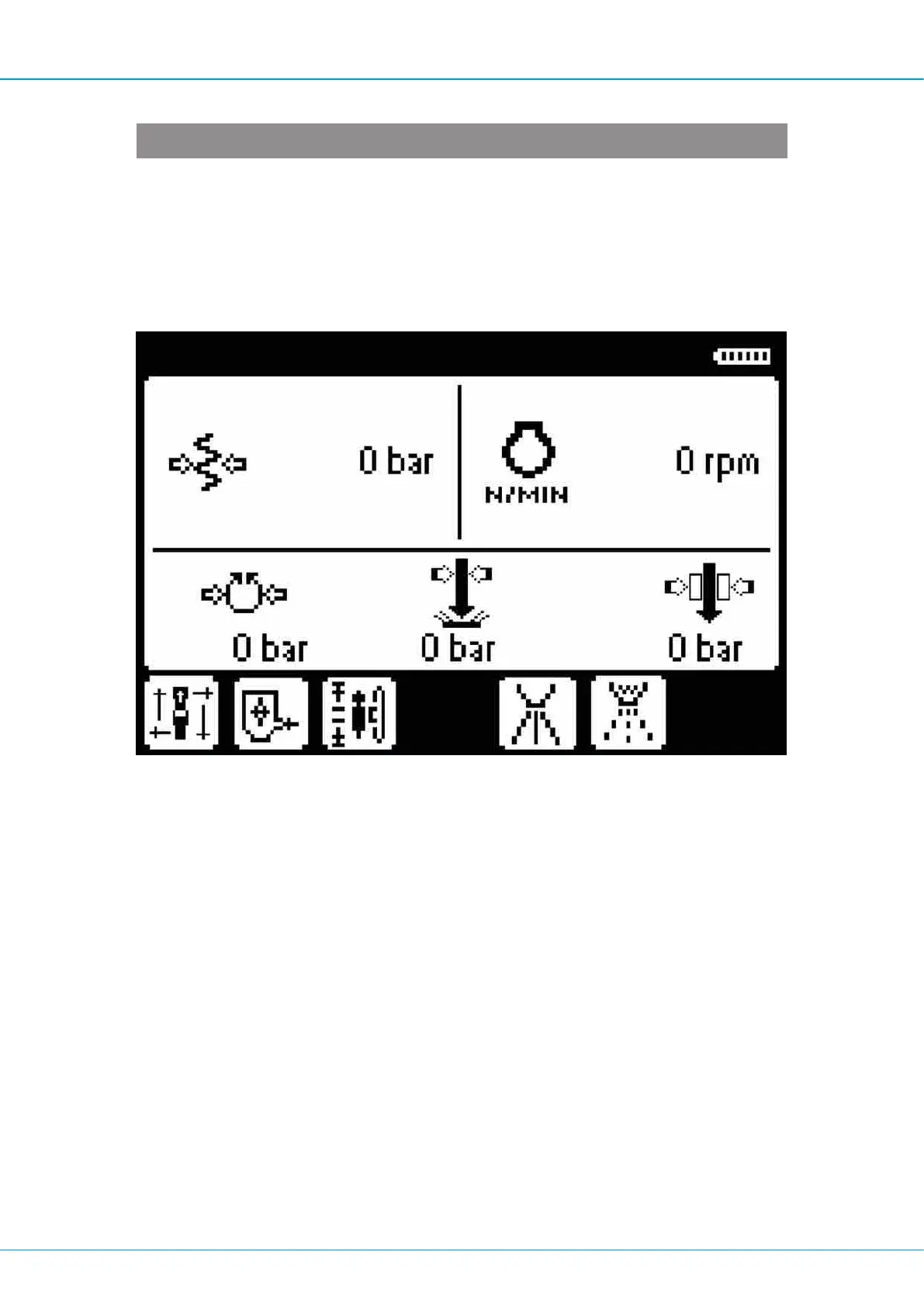

3.5.7 Menu for Information and Adjusting
The menus show current information or provide the option for setting adjustable values.
Winch force and tramming speed are also regulated in the menus. Upper box shows:
n Feed pressure
n Engine RPM
The lower box shows:
n Rotation
n Damper pressure
n Percussion
