FlexiROC T30 R 3 Controls and Instrument
33 No: 2969809547.1.2969824267 en-US

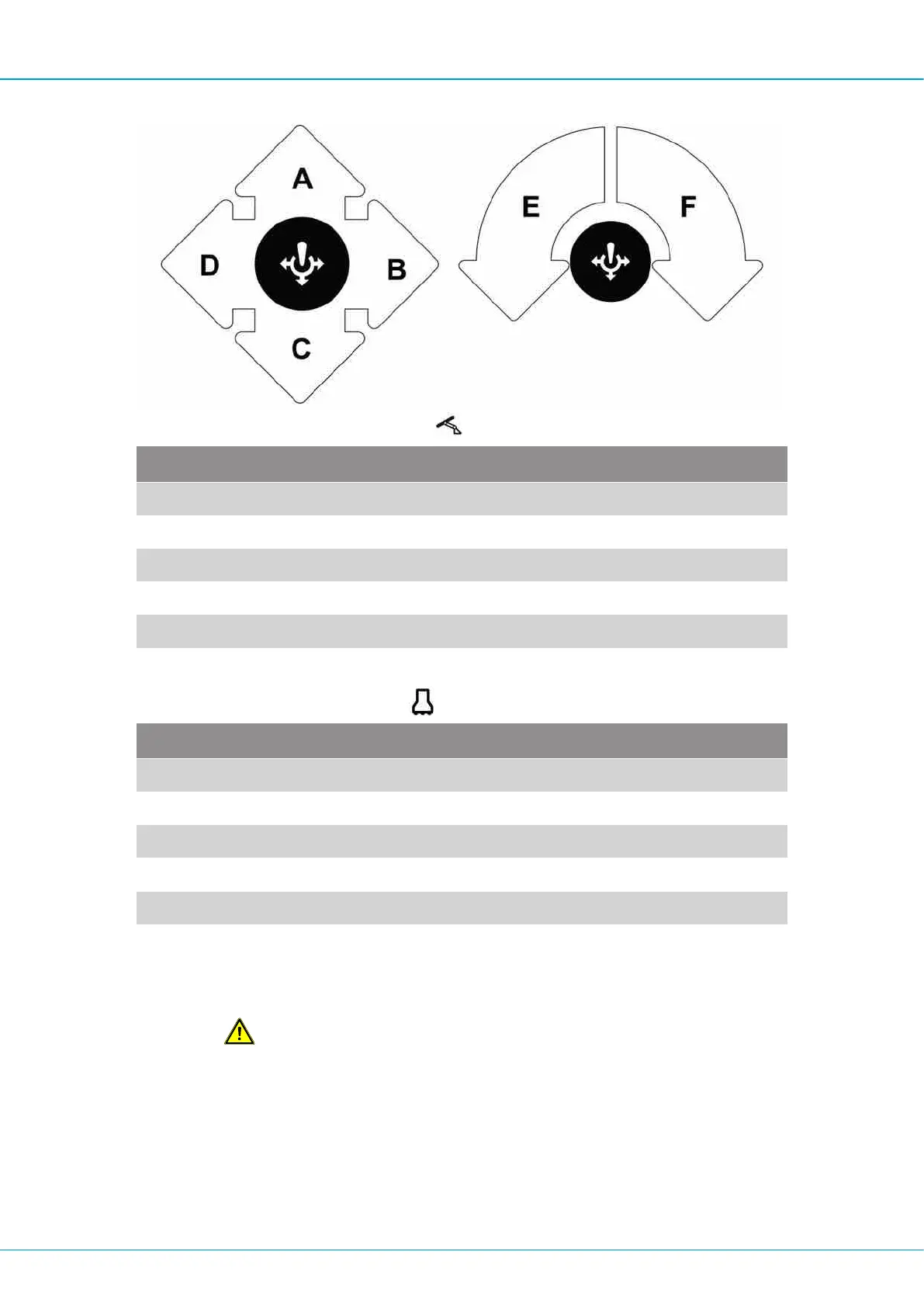

Functions when positioning mode is selected.
Sector Activity
A Feed tilt, front
C Feed tilt, rear
D Feed swing (left)
B Feed swing (right)
E Feed extension down
F Feed extension up
Functions when drilling mode
is selected.
Sector Activity
A Rod to carousel
C Rod to drill center
D Carousel rotation (clockwise)
B Carousel rotation (counterclockwise)
E Open or close rod grippers
F Open or close rod grippers
3.5.3 Right-Hand Multi-function Lever
First read: Safety Precautions Before Using Remote Control [}32]
