FlexiROC T30 R 3 Controls and Instrument
45 No: 2969809547.1.2969824267 en-US
n Touch buttons in the menu illuminate during testing, and indicate correct function.
n The multifunction knob is shown with positive and negative values.
n The tilt sensor detects the position of the remote control.
l Permitted inclination is shown with 0.
l Unpermitted inclination is shown with 1.
3.5.16 Error Messages

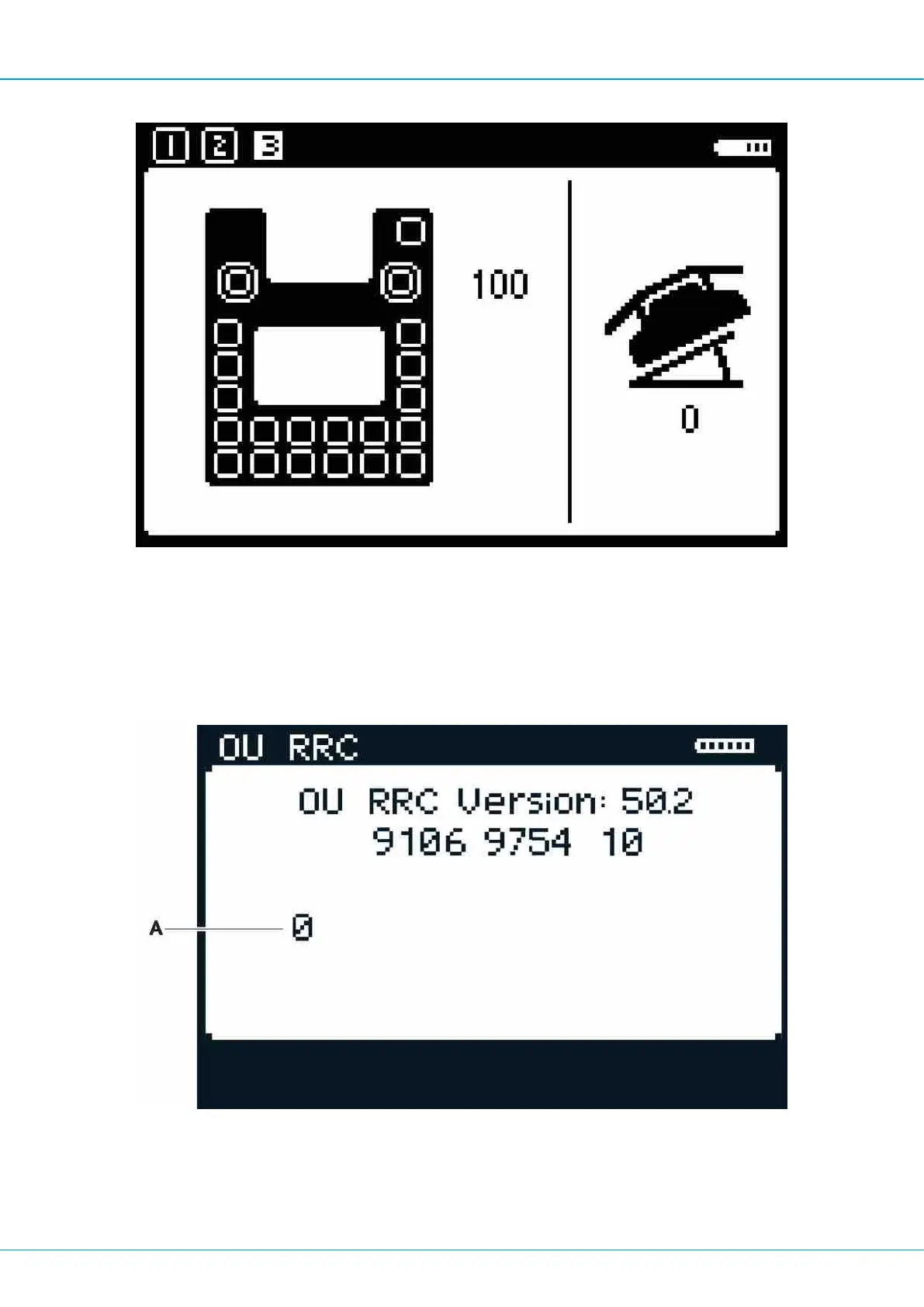

Start-Up Screen
The following screen is supposed to be shown on the remote control during start-up if the
remote control is working. The figure 0 (A) gives an indication that there is no error mes-
sage and the remote control works normally. If 0 has changed to another figure, then the
Atlas Copco service organization must be informed for troubleshooting.
