FlexiROC T30 R 4 Operation
84 No: 2969809547.1.2969824267 en-US
1.
Turn the right multi-function lever (E) counterclockwise when in low percussion, flush
air on.
2.
Turn the right multi-function lever clockwise when in high percussion, flush air on.
3.

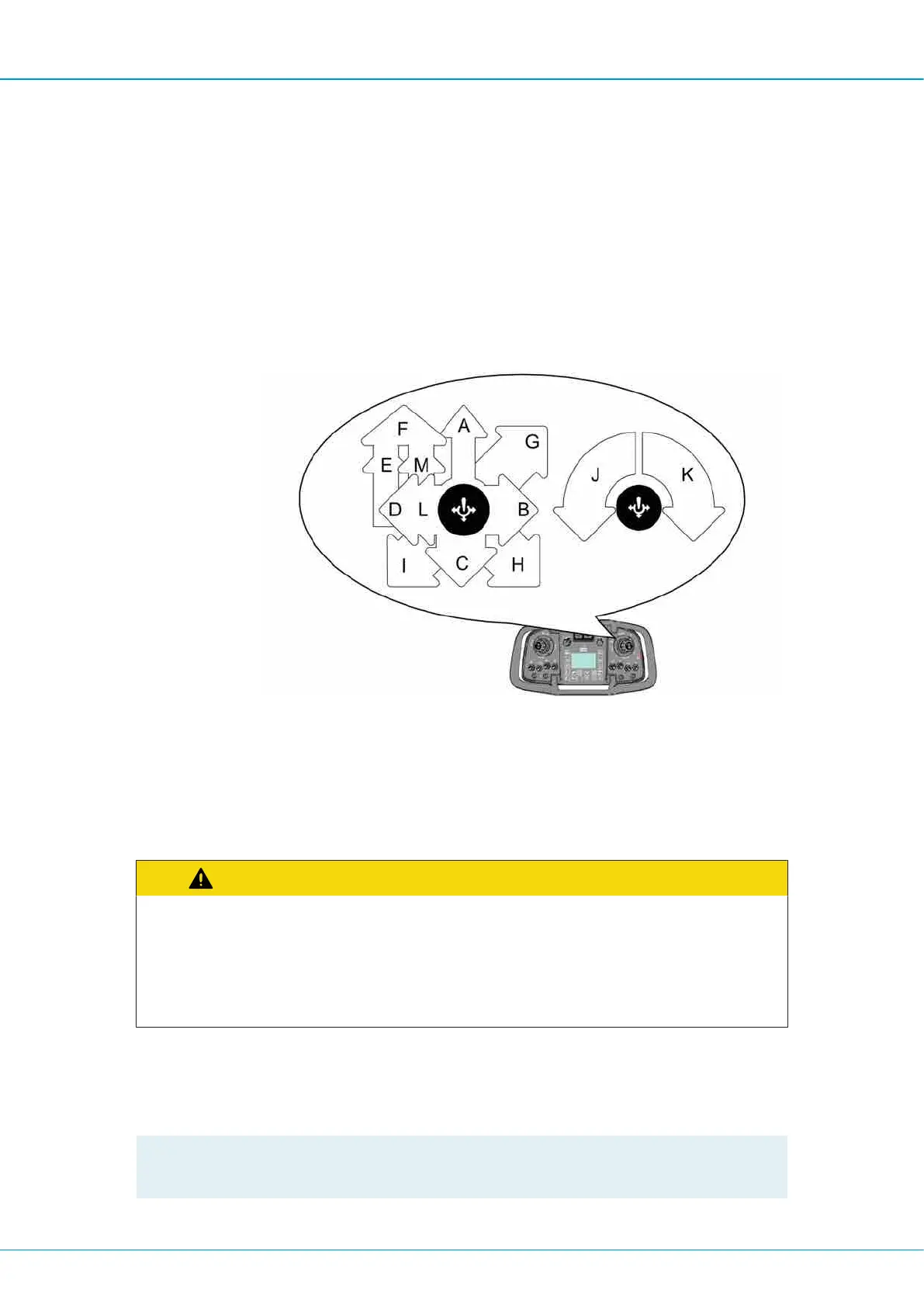

Move the right multi-function lever to sector (E) to disengage all operating functions
(including flushing air).
4.4.7 Feed Drilling Manually
Precondition
p
Self-holding circuit for percussion is activated.
1.
Move the right multi-function lever to sector (A).
è
The self-holding circuit for drill feed has now stopped and feed can now be con-
trolled manually in sector (A). Percussion is still active.
2.
Move the right multi-function lever (5) to sector (F) to resume self-holding.
4.4.8 Boom or Feed Adjustment While Drilling
CAUTION
Damaged Equipment
There is a risk of damaged equipment.
u The machine must only be interrupted when in drilling mode or with the emergency
stop.
If the boom or feeder for any reason must be readjusted while drilling, the adjustment can
be done by resetting the remote control. Switch, position (a). The multi-function levers
change to positioning mode and drilling continues.
!
NOTE: Drilling can only be terminated by resetting the remote control to drilling posi-
tion or activating the emergency stop.
