FlexiROC T30 R 4 Operation
74 No: 2969809547.1.2969824267 en-US
4.3 Positioning
4.3.1 System Settings
GPS Compass Activation
If the rig is equipped with a GPS compass, it is activated on machine start-up.
!
NOTE: Make sure that the antennas are free from snow
4.3.2 Positioning Machine
1.
Set up the machine as close to the horizontal as possible with track oscillation in open
position
.
2.
Lower the jack steadily against the ground without lifting the track frames from the
ground.
3.
Secure the track oscillation lock and then start positioning the boom and feeder.
4.
Set the feeder jack steadily against the ground without lifting the track frames from the
ground.
!
NOTE: Position the boom and feeder with smooth movements.
!
NOTE: Never unlock the track oscillation lock while the machine is
set up for drilling

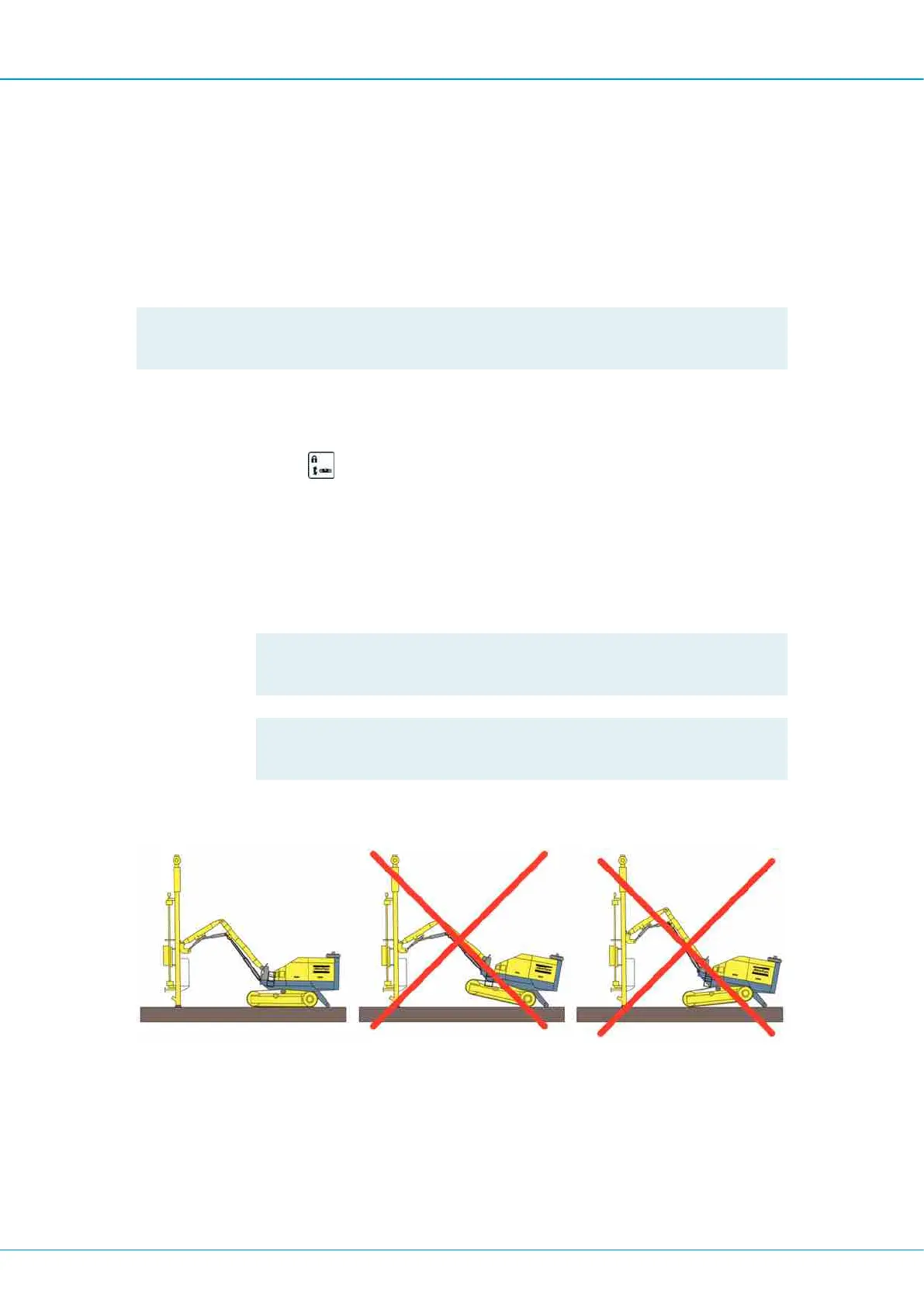

Setup on Level Ground
Correct and Incorrect Setup
Uphill Setup
Position the machine as close to horizontal as possible.
