Atlas Copco FlexiROC T30 R - Right-Hand Multi-function Lever Operation

FlexiROC T30 R 3 Controls and Instrument
34 No: 2969809547.1.2969824267 en-US

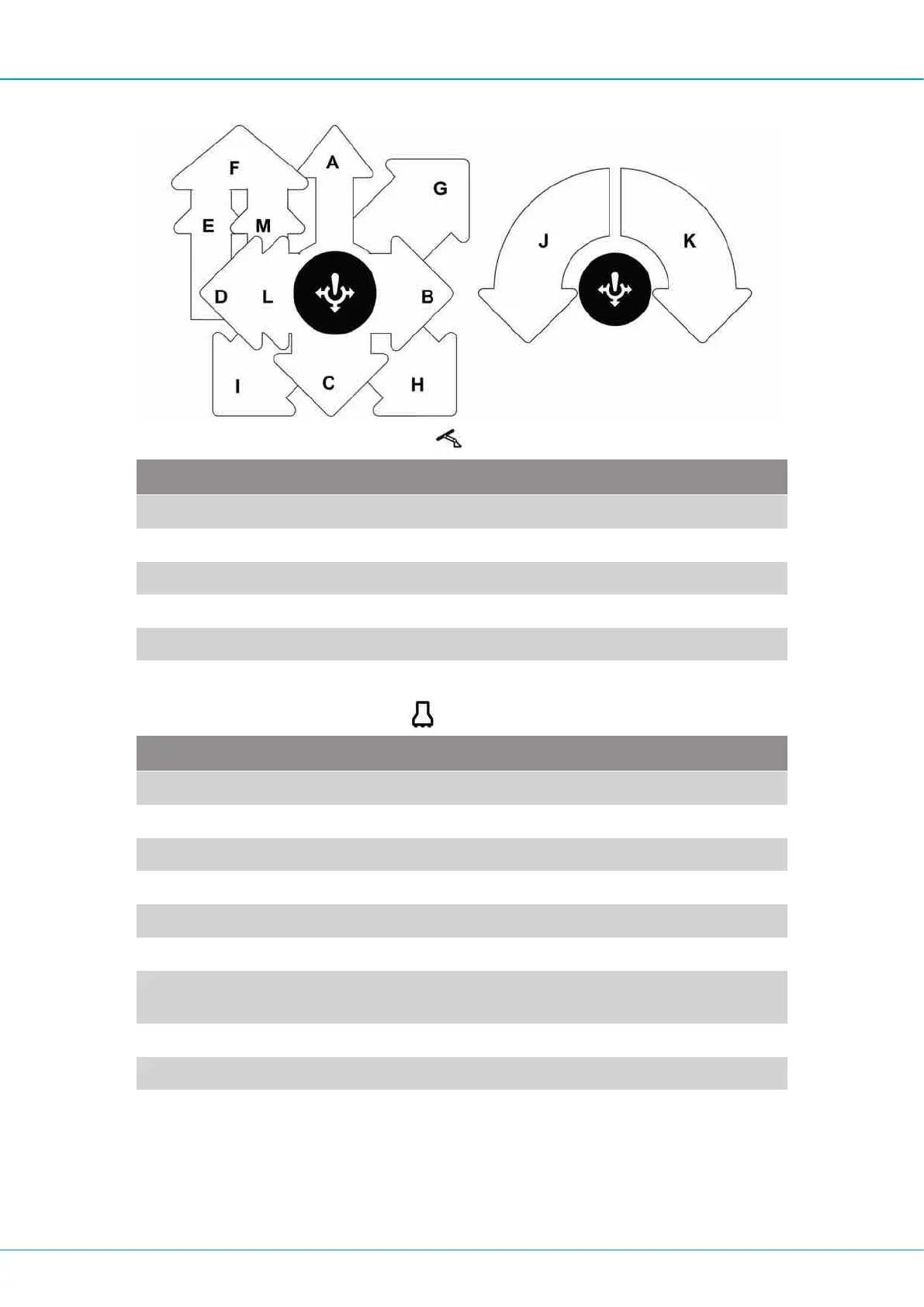

Functions when positioning mode is selected.
Sector Activity
A Boom lowering
C Boom lift
B Boom swing right
D Boom swing left
J Boom extension in
K Boom extension out
Functions when drilling mode
is selected.
Sector Activity
A Rapid feed-forward
C Rapid feed-backward
B Rotation (Clockwise)
D Rotation (Counterclockwise) and Flushing air
G Threading
H Unthreading
I Rotation (Counterclockwise)/Flushing air/Feed-
backward
E Reduced auto-drilling
F Full auto-drilling/collaring
J Low percussion
Flushing air self-holding - lever movement < 0.2
sec
