FlexiROC T30 R 4 Operation
80 No: 2969809547.1.2969824267 en-US
2.
Make sure that the track oscillation lock is open. Touch button
.
3.

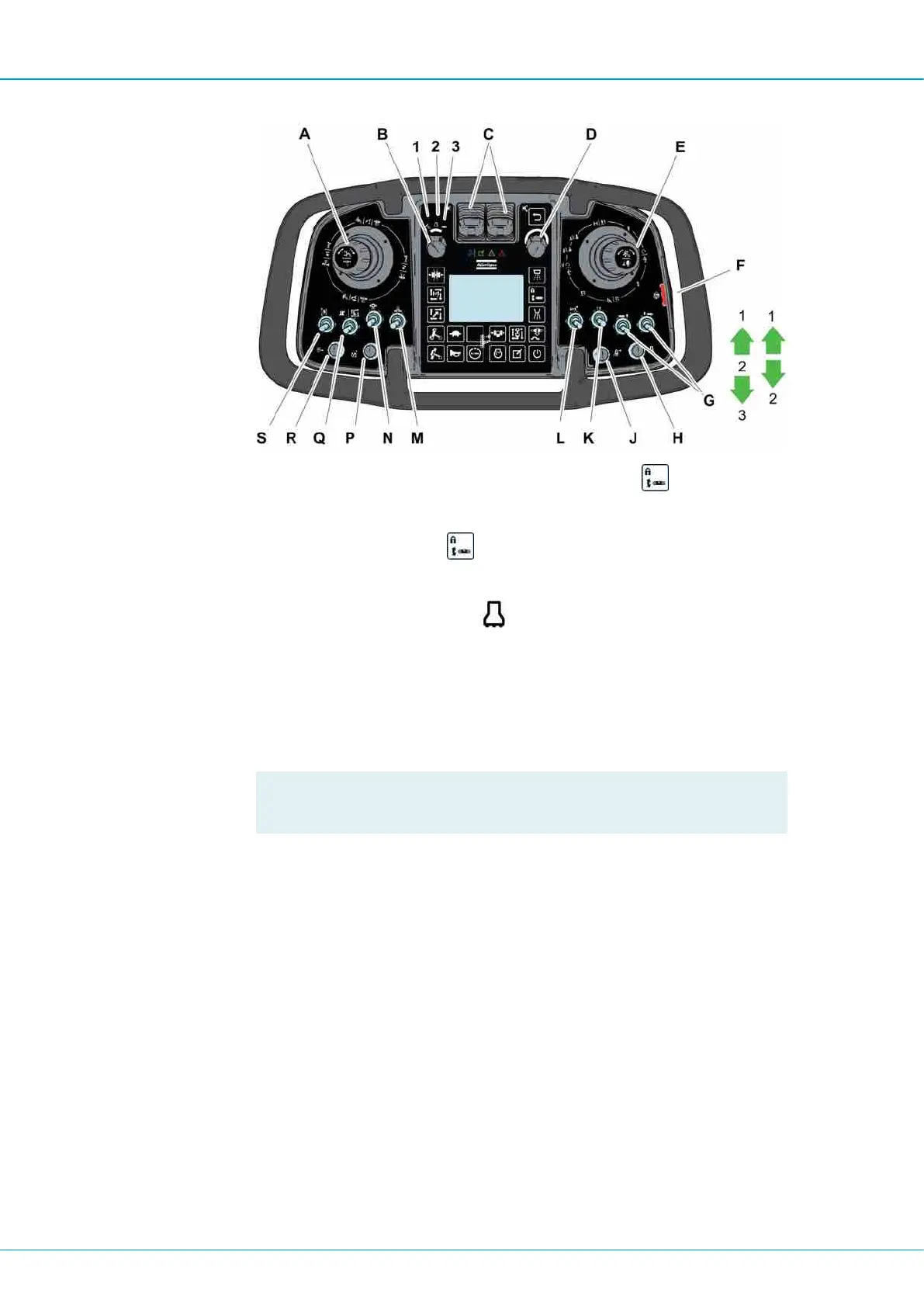

Set the drill rig in the horizontal position with the controls for track oscillation (G).
4.
Close the track oscillation lock
.
5.
Lower the jack to the ground (K).
6.
Set the switch (B) in drilling position
(2).
7.
Position the machine using the left-hand multi-function lever (A) for feeder move-
ments and the right-hand multi-function lever (E) for boom movements.
8.
Set the feed dowel firmly against the ground without lifting the machine. Operate the
right and left-hand multi-function levers (1 and 5) alternately and progressively for
feed extension and boom movements.
!
NOTE: Do not lift the machine with the feeder.
