The APIB PCI Express card and cable
Turn off your PC and mount the PCI Ex press card in an open PCI Ex -
press slot. Con nect the PCI Ex press card to the in stru ment us ing an APIB
ca ble.
Note that PCI Express cards will not mount in standard PCI
slots, and that you may damage the card and your PC by
forcing an interface card into the wrong slot.
Turn on the PC and the in stru ment, and launch ATS.
The APIB PCI card and cable
Turn off your PC and mount the PCI card in an open PCI slot. Con nect
the PCI card to the in stru ment us ing an APIB ca ble.
Note that standard PCI cards will not mount in the newer PCI
Express slots, and that you may damage the card and your
PC by forcing an interface card into the wrong slot.
Turn on the PC and the in stru ment, and launch ATS.
Chapter 2: Installation and Setup for APIB Connecting ATS-2 to Your PC
14 Getting Started with ATS-2

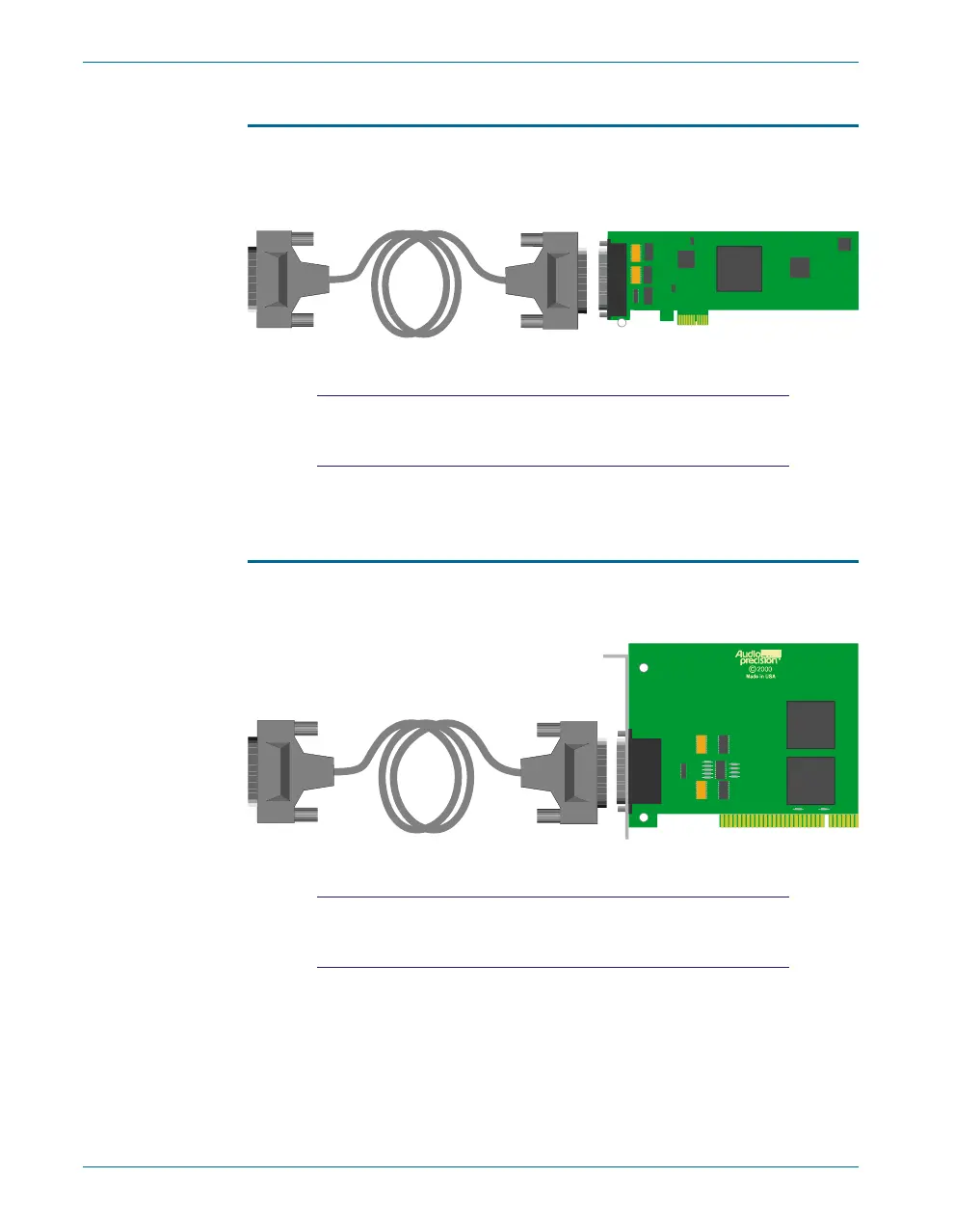

Figure 8. PCI Express card and cable..
Figure 9. PCI card and cable.
