AudioCodes Mediant 2000 System - Configuring the Ipmedia Settings; Figure 5-35: Ipmedia Settings Screen

SIP User's Manual 176 Document #: LTRT-68806
Mediant 2000 & TP-1610 & TP-260/UNI
5.7.4 Configuring the IPmedia Settings
The 'IPmedia Settings' screen is used for configuring the IPmedia server parameters.
¾ To configure the IPmedia parameters, take these 4 steps:
1. Open the 'IPmedia Parameters' screen (Advanced Configuration menu > Media
Settings > IPmedia Settings option).

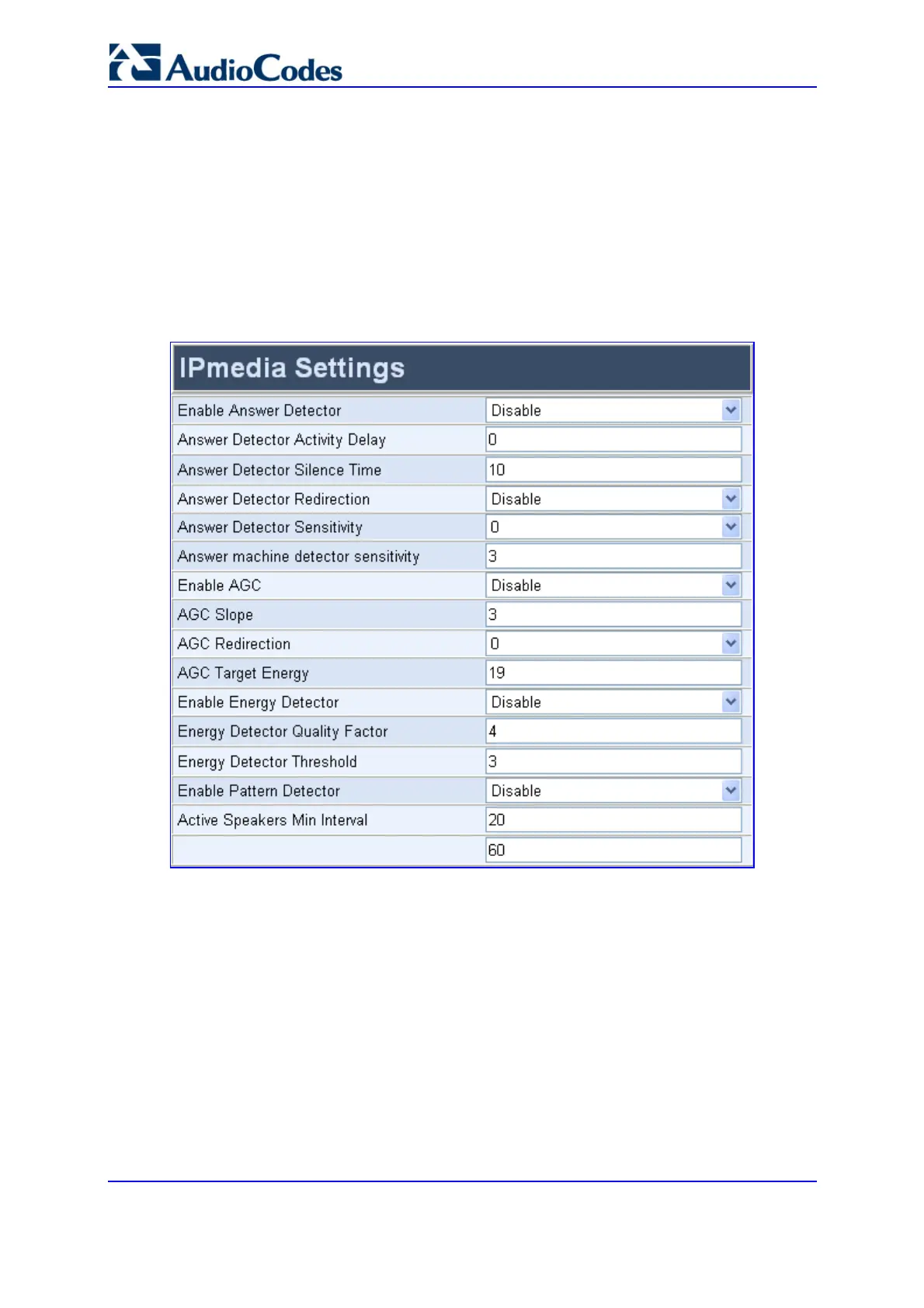

Figure 5-35: IPmedia Settings Screen
2. Configure the media server parameters according to the table below.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, refer to 'Saving Configuration' on page 256.
