Version 5.2 27 September 2007
SIP User's Manual 2. Physical Description
2.3.2 TP-260 Ethernet and E1/T1 Ports

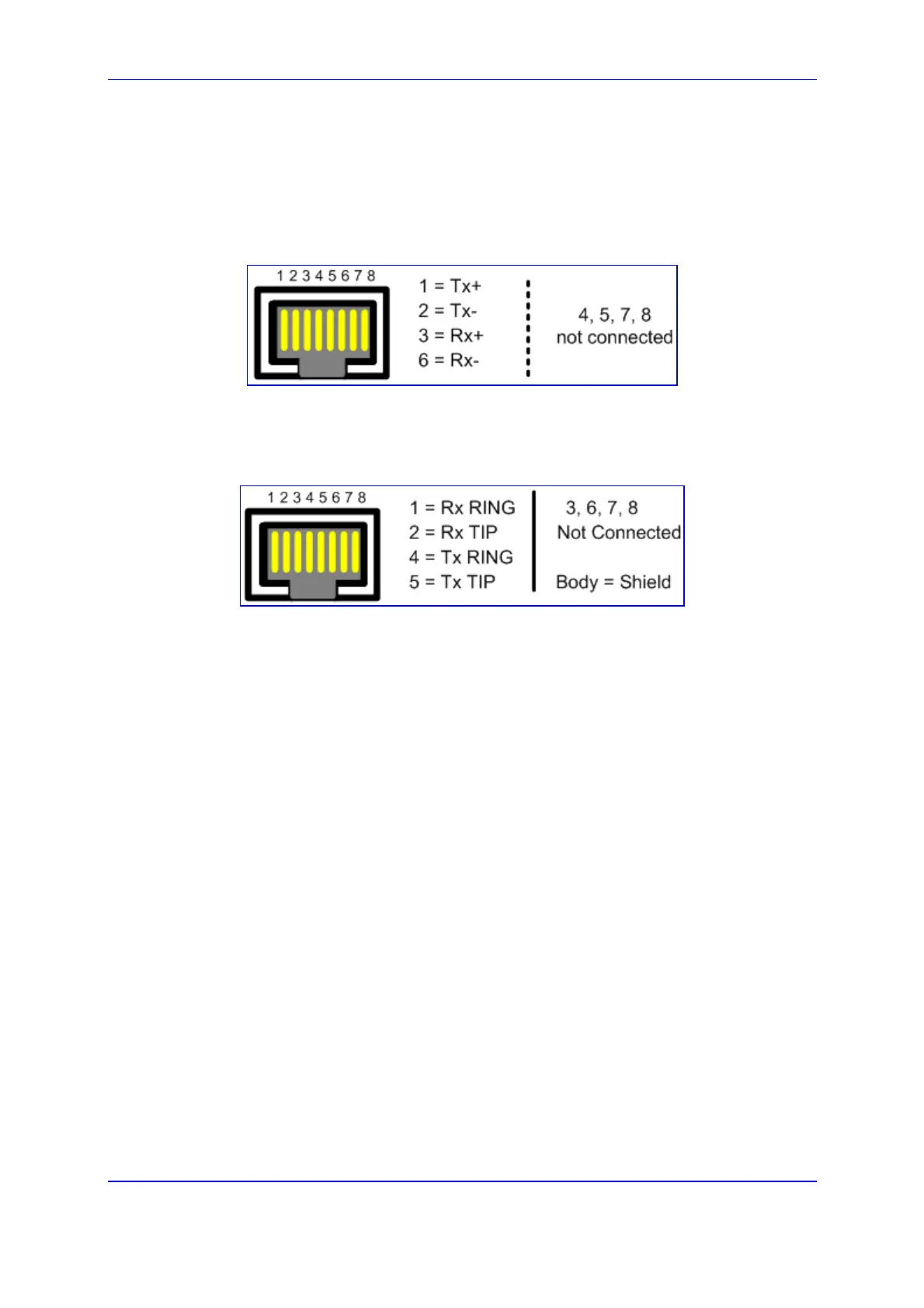

The Ethernet RJ-45 port connector pinouts are shown in the figure below:
Figure 2-6: RJ-45 Connector Pinouts
The E1/T1 RJ-48c port connector pinouts are shown in the figure below:
Figure 2-7: RJ-48c Connector Pinouts
