AudioCodes Mediant 2000 System - TP-260 Physical Description

Version 5.2 25 September 2007
SIP User's Manual 2. Physical Description
2.3 TP-260 Physical Description
The TP-260 blade is a complete plug-and-play device. The PC’s boot-up sequence
determines its I/O addresses and interrupts.

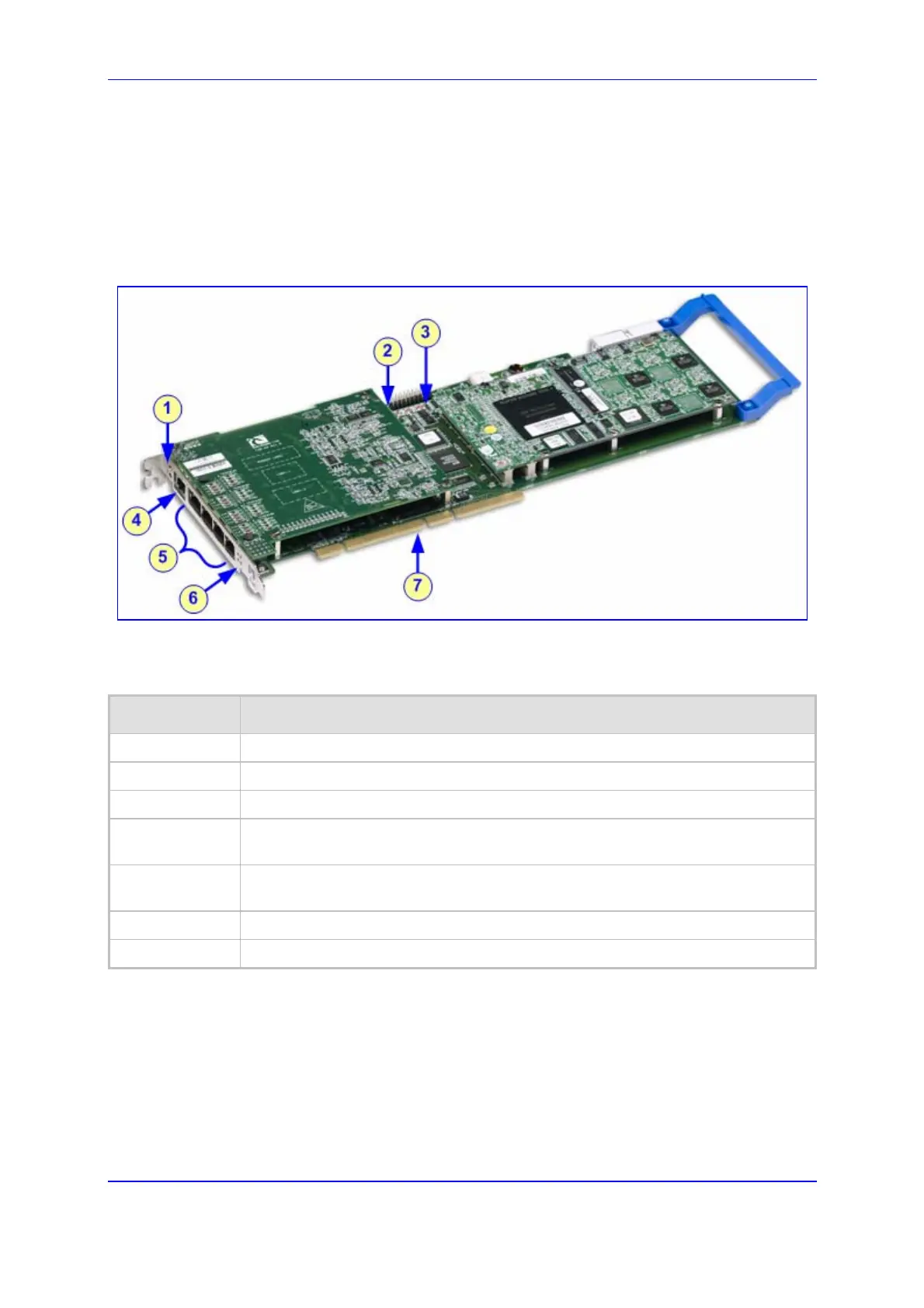

Figure 2-5: TP-260 Board Description
Table 2-10: TP-260 Component Description
Item # Component Description
1
Ethernet LEDs (refer to 'TP-260 LEDs' on page 26)
2
Reset button
3
Internally-located base blade LEDs (refer to 'TP-260 LEDs' on page 26)
4
Ethernet RJ-45 connector (for pinouts, refer to 'TP-260 Ethernet and E1/T1 Ports'
on page 27)
5
4 x T1/E1 RJ-48c trunk connectors (for pinouts, refer to 'TP-260 Ethernet and
E1/T1 Ports' on page 27)
6
E1/T/J1 LEDs (refer to 'TP-260 LEDs' on page 26)
7
Universal PCI, 32/64 bit, 33/66 MHz, and 3.3/5 V
