SIP User's Manual 2. Physical Description
2 Physical Description
This section provides a physical description on the hardware (i.e., ports, buttons, and
LEDs) of the front and rear panels of following products:
 Mediant 2000 (refer to 'Mediant 2000 Physical Description' on page 19)
 TP-1610 (refer to 'TP-1610 Physical Description' on page 21)
 TP-260 (refer to 'TP-260 Physical Description' on page 25)
2.1 Mediant 2000 Physical Description
The Mediant 2000 (shown in the figure below) comprises the following component:
 A 19-inch, 1U high rack mount chassis (refer to 'Mediant 2000 Chassis' on page 20)
 A single compact PCI™ TP-1610 blade (refer to 'TP-1610 Physical Description' on
page 21)
 A single TP-1610 Rear Transition Module (RTM) (refer to 'Rear Transition Module' on
page 23)
 A single available cPCI slot for an optional third-party CPU blade (refer to 'Optional
CPU Blade' on page 21)

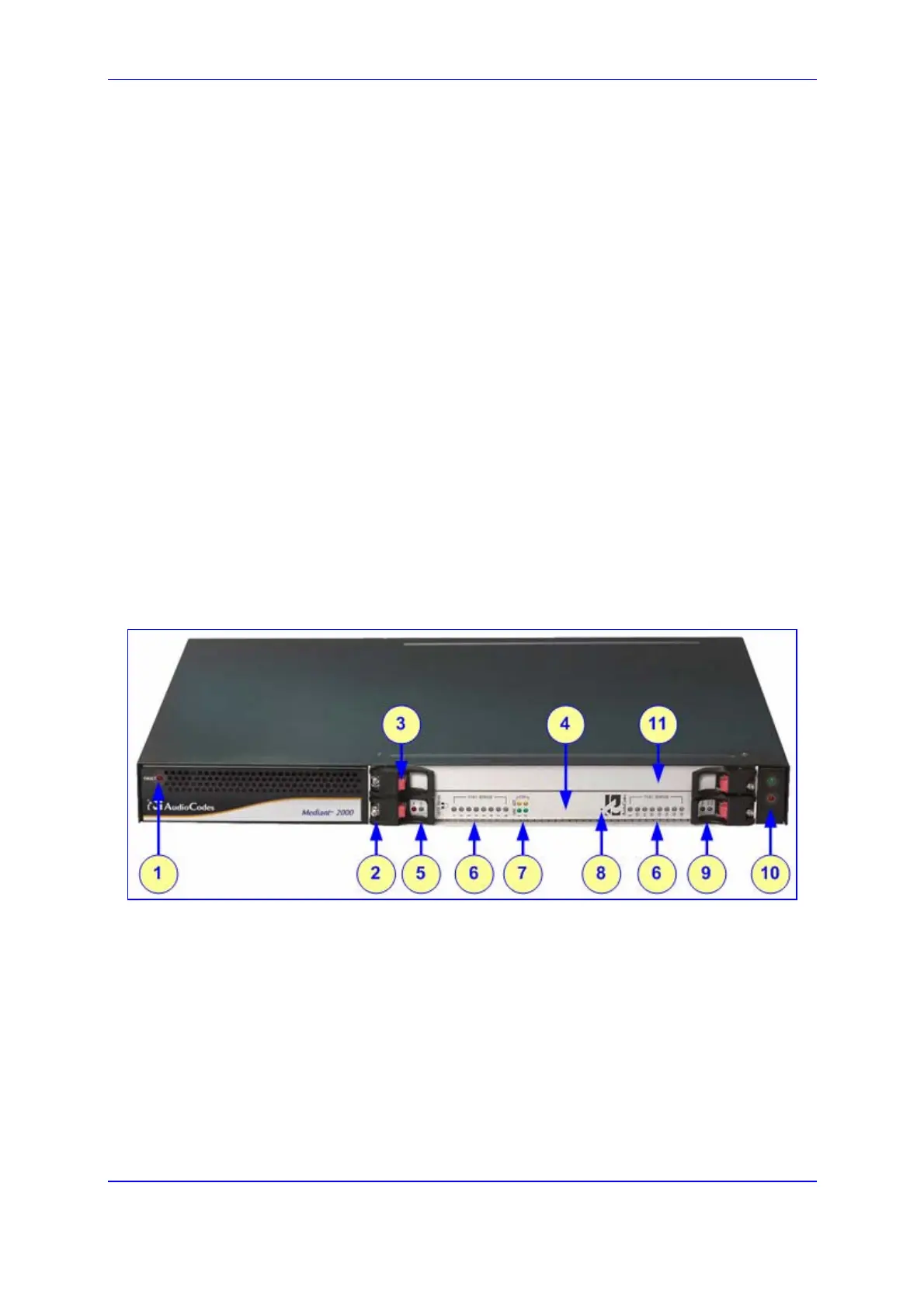

Figure 2-1: Mediant 2000 Front Panel
