SIP User's Manual 86 Document #: LTRT-68806

Mediant 2000 & TP-1610 & TP-260/UNI

5.5.1.2 Proxy & Registration Parameters

The Proxy & Registration option is used to configure parameters that are associated with

Proxy and Registration.

¾ To configure the Proxy & Registration parameters, take these 4

steps:

1. Open the 'Proxy & Registration' parameters screen (Protocol Management menu >

Protocol Definition submenu > Proxy & Registration option).

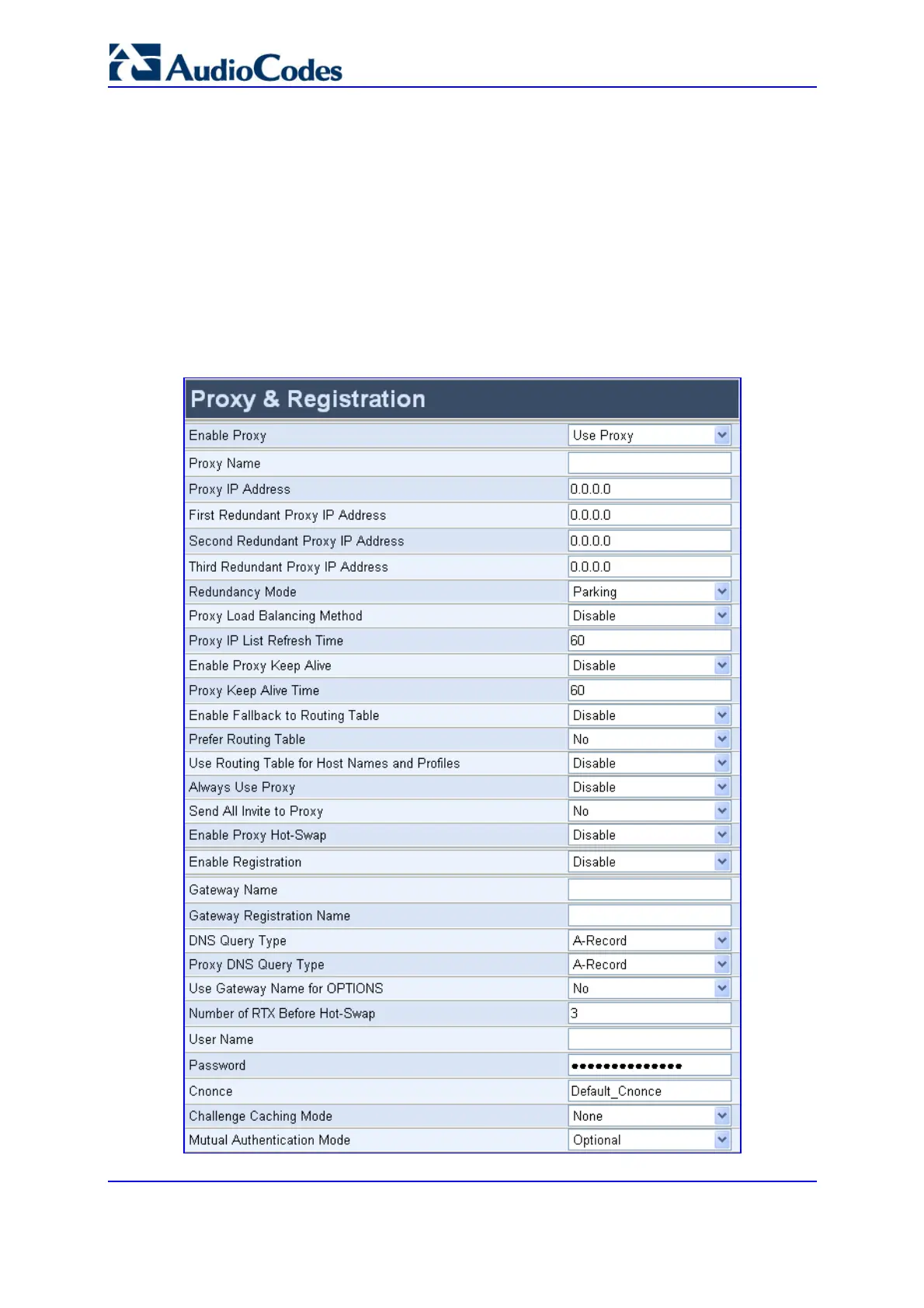

Figure 5-9: Proxy & Registration Screen
