SIP User's Manual 5. Web-based Management
¾ To view Ethernet port information, take this step:
 On the Home page, click the Ethernet Port Info LED on the TP-1610 (labeled as item
#4 in the figure in 'Accessing the Home Page' on page 261); the 'Ethernet Port
Information' screen opens.

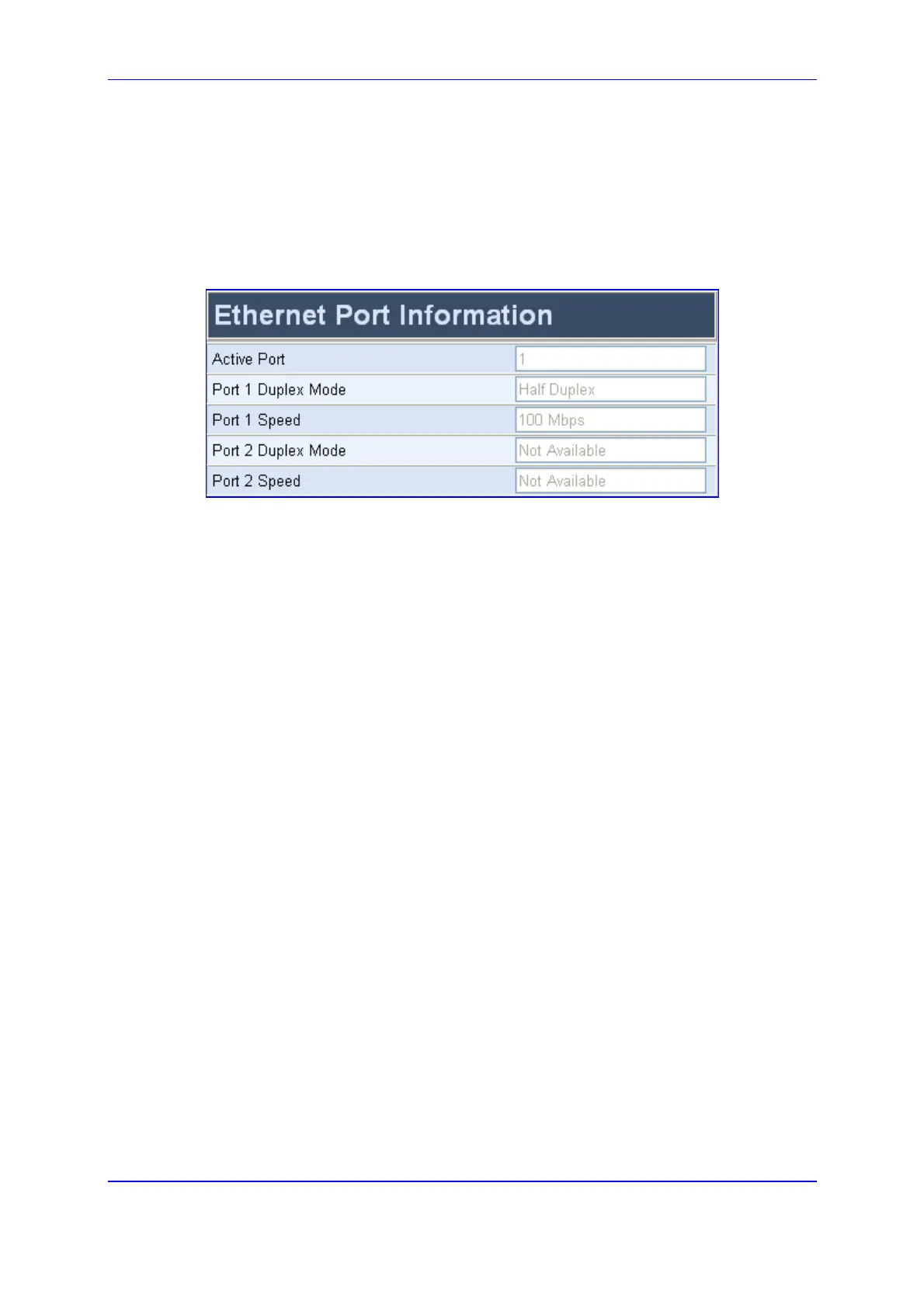

Figure 5-70: Ethernet Port Information Screen
For detailed information on the Ethernet parameters, refer to 'Viewing Ethernet Port
Information' on page 235.
5.14.4 Viewing the Active Alarms Table
The Home page allows you to view a list of active alarms. These alarms are displayed in
the 'Active Alarms' screen. For each alarm, the following is displayed:
 Severity: severity level of the alarm:
• Critical: red
• Major: orange
• Minor: yellow
• No alarm: green
 Source: module or unit from which the alarm was raised
 Description: brief explanation of the alarm
 Date: date and time that the alarm was generated
