auer HRC70 - Installing the Pilot; Installation Site; Fitting the Pilot to the Wall; Fitting and Placement

- INSTALLER 7 & 11kW HRC
70
HIGH TEMPERATURE HEAT PUMP -
12

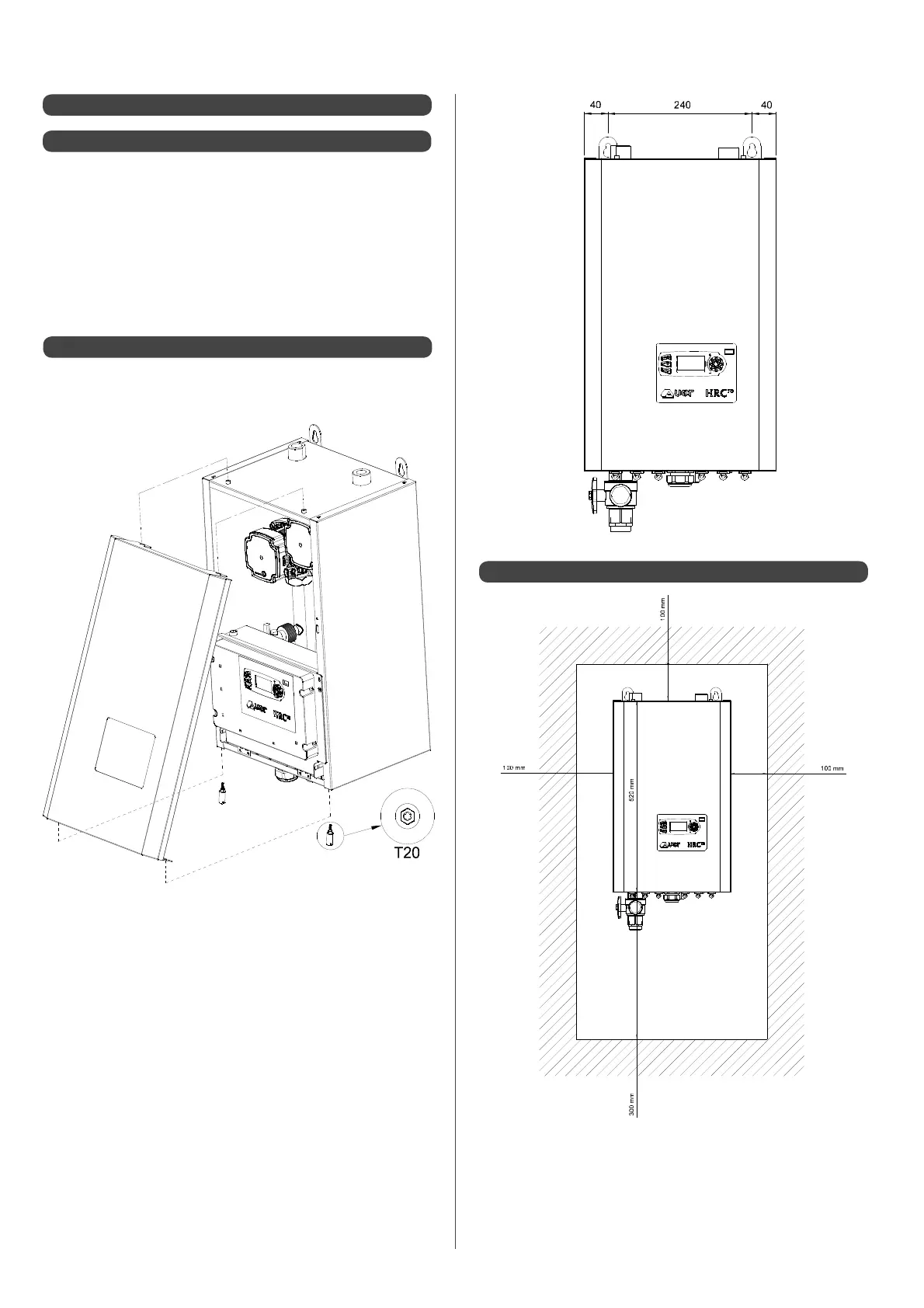

3.1.2.3 - Fitting and placement
3.1.2.2 - Fitting the Pilot to the wall
The Pilot must be  xed vertically to a strong supporting wall
using three Ø8 lag screws.
The Pilot must be  tted at least 300mm above any obstacles to
enable the hydrualic connection to be made with the bottom of
the appliance.
It should be  tted at least 100mm away from the ceiling to allow
enough space to make the hydraulic connections.
It must be  tted at least 100mm away from walls on either side.
Removing the front panel
3.1.2 - Installing the Pilot
3.1.2.1 - Installation site
The Pilot should be installed in premises which are protected from
frost and and bad weather conditions. It should be installed as
close as possible to the Heat Pump and not exceed the maximum
distance. The maximum distance depends on the diametre of
the piping and the amount of elbows used (see the "Hydraulic
connections" table). The 2-core sheathed cable which provides
the bus link between the Pilot and the Heat Pump measures 10m.
If needed there is a 20m option available (Ref.751005).
