- INSTALLER 7 & 11kW HRC
70
HIGH TEMPERATURE HEAT PUMP
MANUAL -
21
3.5.2.2 - Pilot: 400V three phase connection
In case of a PERMANENT POOL:
Disconnect the heating circuit circulator
pump which is pre-wired to the HRC Pilot on
terminals 5 and 6 and reconnect it to terminals
2 and 3. Then connect the Cchauf1 circulator
pump for the swimming pool on terminals 5
and 6.
The Pilot is always pre-set at the factory
for 230V single phase operation.

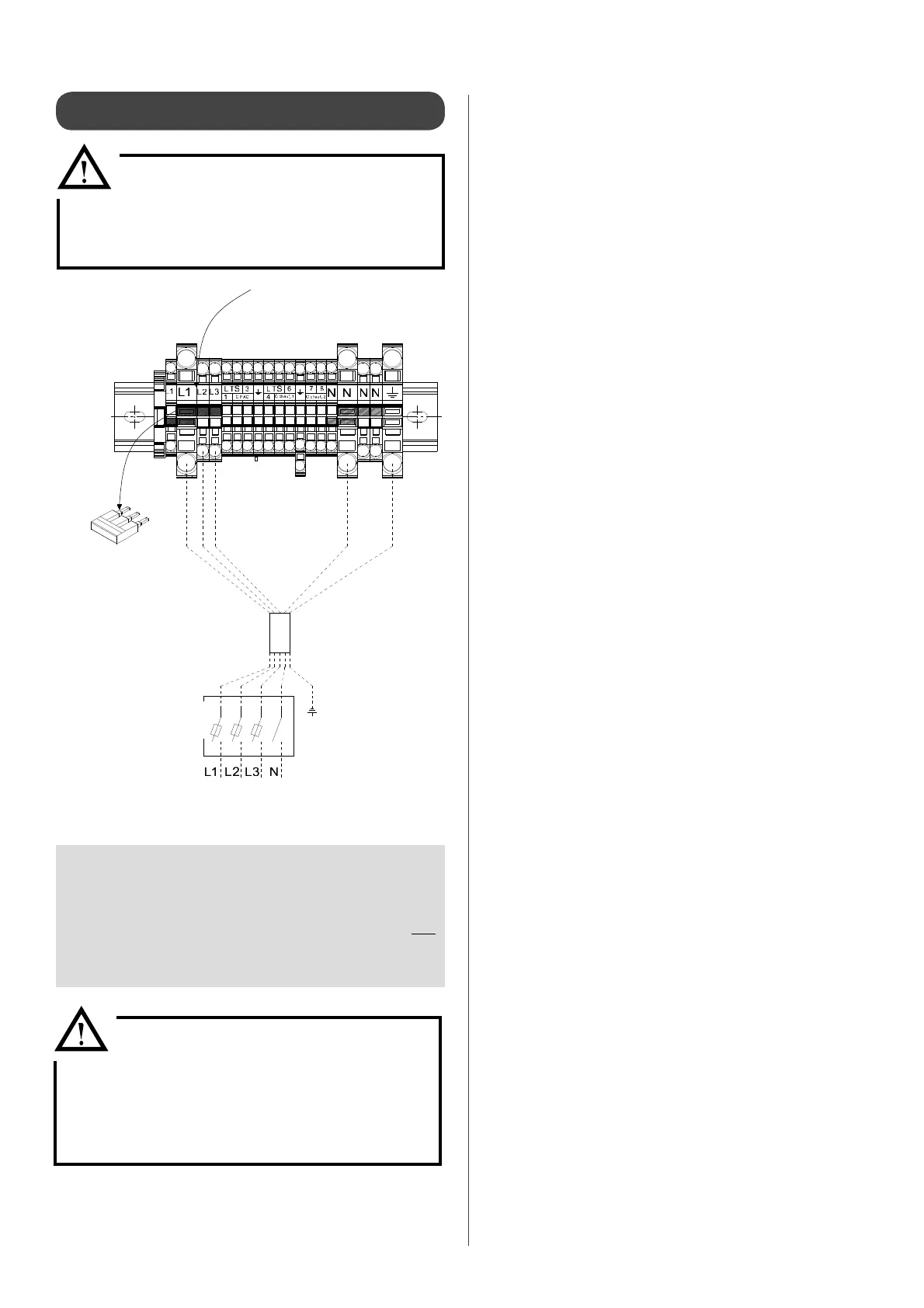

In order to operate in 400V three phase, you
will need to remove a bridge between the three
phase terminals (see diagram below).
Fuse or thermal-magnetic
circuit breaker
Bridge to be removed
for 400V 3 phase use
‘‘PH’’ labels, to be replaced by
L1, L2 and L3
5-wire section to be de ned
see § ‘‘Recommendations for
connecting the system to the
power supply’’
L1-L2-L3-N : Power supply Phase/Neutral 400V three-phase 50Hz
CPAC : Heat Pump circulator pump, pre-connected
Cchauf 1 : Circulator pump for heating circuit 1
ou Pisc : or primary circulator pump for swimming pool circuit
Cchauf2 : Circulator pump for heating circuit 2
ou ECS Primary circulator pump for domestic water
LTP1/LTP2 : Temperature-limiting safety aquastat (65°C ) with manual reset. It must
be fi tted at the start of the underfl oor heating circuit (not supplied).
