- INSTALLER 7 & 11kW HRC
70
HIGH TEMPERATURE HEAT PUMP
MANUAL -
49

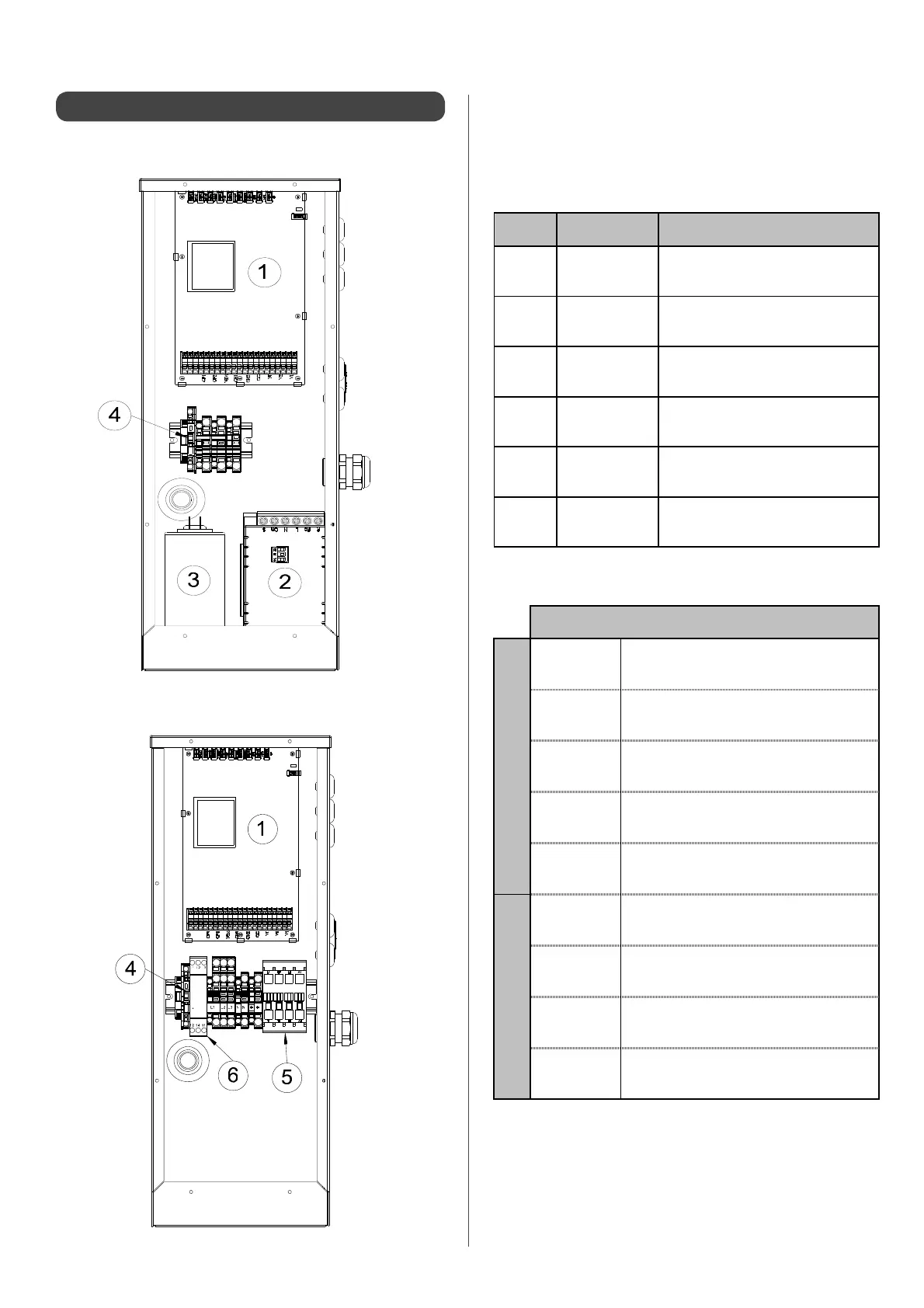

7.2 - Electrical boxes
DC Compressor starter
RCP Phase monitor relay
KMC Compressor contactor
K1 to K3 Electrical stage contactor
BUS 2-core sheathed connection cable
C 45μF compressor capacitor
K Compressor
AQS 110°C safety aquastat
T 6 Kw electric immersion heater
Electrical connections with Faston
terminals
Reference points on schematic wiring diagram
Electrical connections attached with screws
Number Reference Product
1 1244348 Heat Pump C4 electronics board
2 1244415
Single phase compressor soft starter
3 1243959 45 F compressor capacitor
4 1243147 4 fuse
5 1243847 Contactor
6 1949123 Phase monitor
7 and 11 single phase
11 three phase
