auer HRC70 - Hydraulic Schematic Diagram -1 RADIATOR CIRCUIT + DHW; Pool Possible

- INSTALLER 7 & 11kW HRC
70
HIGH TEMPERATURE HEAT PUMP -
64

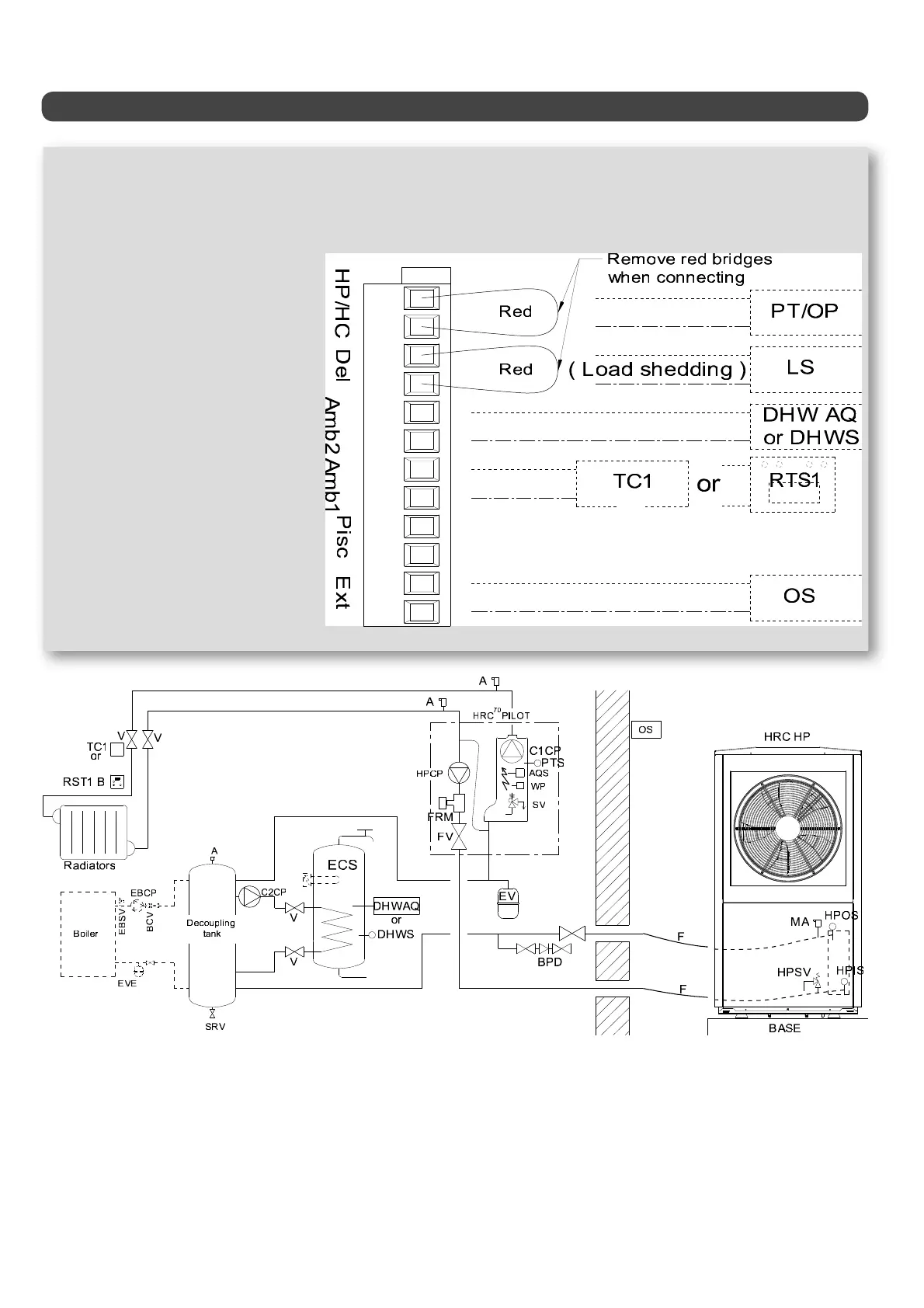

Hydraulic schematic diagram -1 RADIATOR CIRCUIT + DHW- -pool possible-
HPCP = circulator pump for Heat Pump circuit
C1CP = circulator pump for heating circuit 1
FRM = Heat Pump circuit  ow rate monitor
SV = 3-bar safety valve
A = Air valve
PTS = HRC
70
Pilot temperature sensor (or outgoing water sensor OW)
AQS = 110°C safety aquastat with manual reset
WP = water pressure sensor
SRV = sludge removal valve
FV =  lter valve for Heat Pump circuit
V = stop valves
EV = expansion vessel
BPD = back ow prevention device
F =  exible hose for Heat Pump connection
MAV = manual air valve
HPSV = Heat Pump safety valve set to 2.5 bar
HPIWS = Heat Pump incoming water sensor
HPOWS = Heat Pump outgoing water sensor
EBCP = existing boiler circulator pump
EVE = expansion vessel for existing installation
BSV = existing boiler safety valve
OS = Heat Pump HRC
70
Pilot outdoor temperature
sensor
TC1 = heating circuit 1 room thermostat (optional
extra)
or RTS1 = room temperature sensor with display for
heating circuit 1 (available to order)
DHWAQ = Heating circuit 2 domestic water aquastat
or DHWS or circuit 2 domestic water sensor (optional
extra)
FRM SP =  ow rate monitor for swimming pool circuit
S pool = swimming pool sensor (optional extra
included in swimming pool kit)
C pool = swimming pool circuit circulator pump
3WV = 3-way valve for radiator circuit (winter) or
swimming pool circuit (summer)
BCV = boiler check valve
DHW = domestic hot water tank with > 40kW heat exchanger
