7.3 - Pilote HRC
70

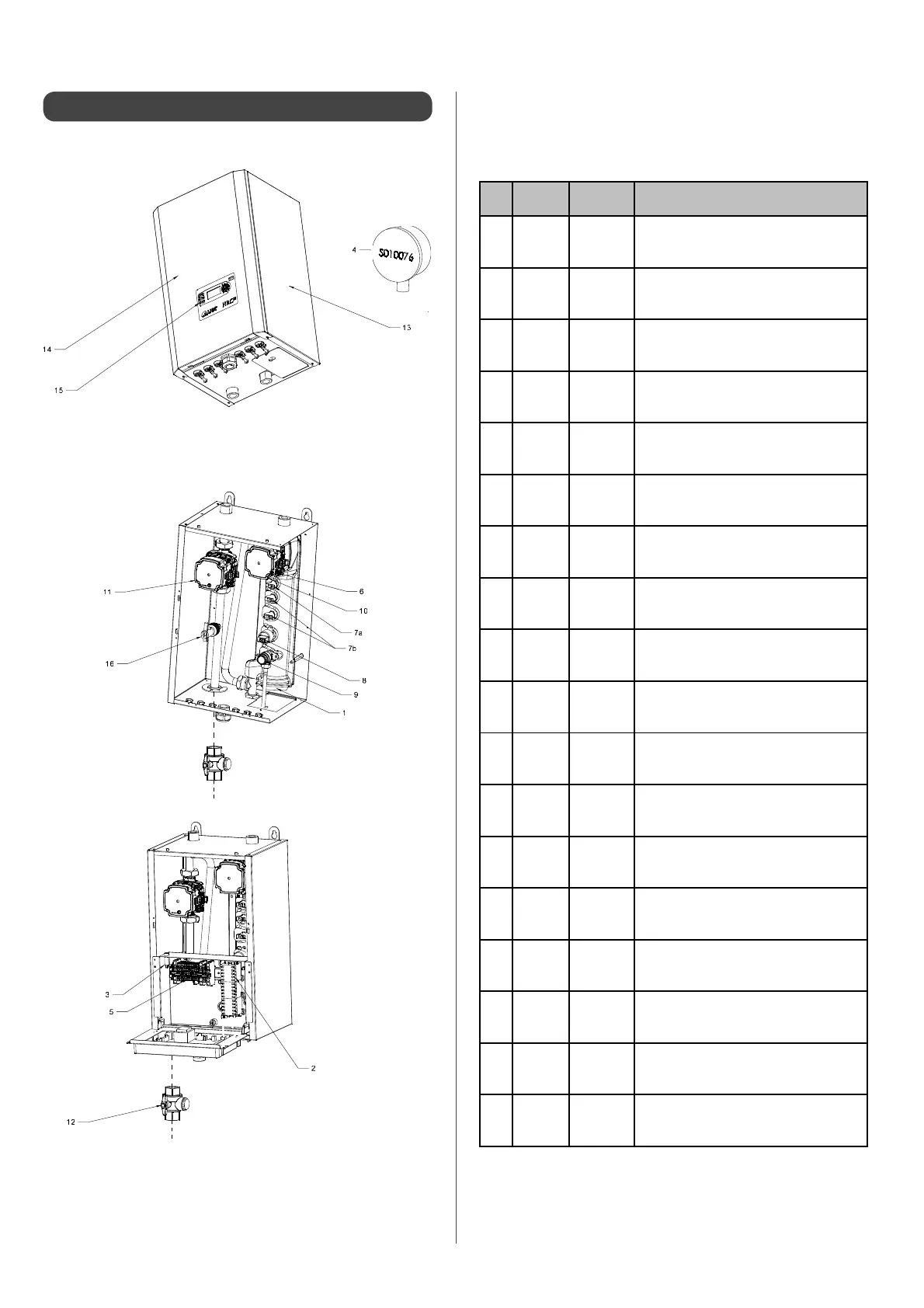

N°. Symbol Reference Product
1 1243947 Electric immersion heater
2 1243561 Contactor
3 F 4990743 Fuse holder
4 OS 1244401 Outdoor sensor
5 1244050 Terminal
1244357 Single phase wiring
6 1243693 Temperature sensor
7a AQSC 1238802 100°C safety aquastat (yellow)
7b
UTL1
UTL2
1243400 60°C safety aquastat (black)
8 WP 1243661 Water pressure sensor
9 HPSV 1239094 3 bar safety valve
10 CPH 1244446 GGMBP3 15-50 circulator pump
11 HPCP 1243662 UPM3 20-70 130 circulator pump
12 FV 1239114 1" FF filter valve
13 4485251 Side panel
14 4485259 Front panel
15 4592258 Control box
16 1239171 Flow rate monitor
