Automationdirect.com DirectLOGIC DL205 Series User Manual

DL205 User Manual, 4th Edition, Rev. B
3–65
Chapter 3: CPU Specifications and Operations
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

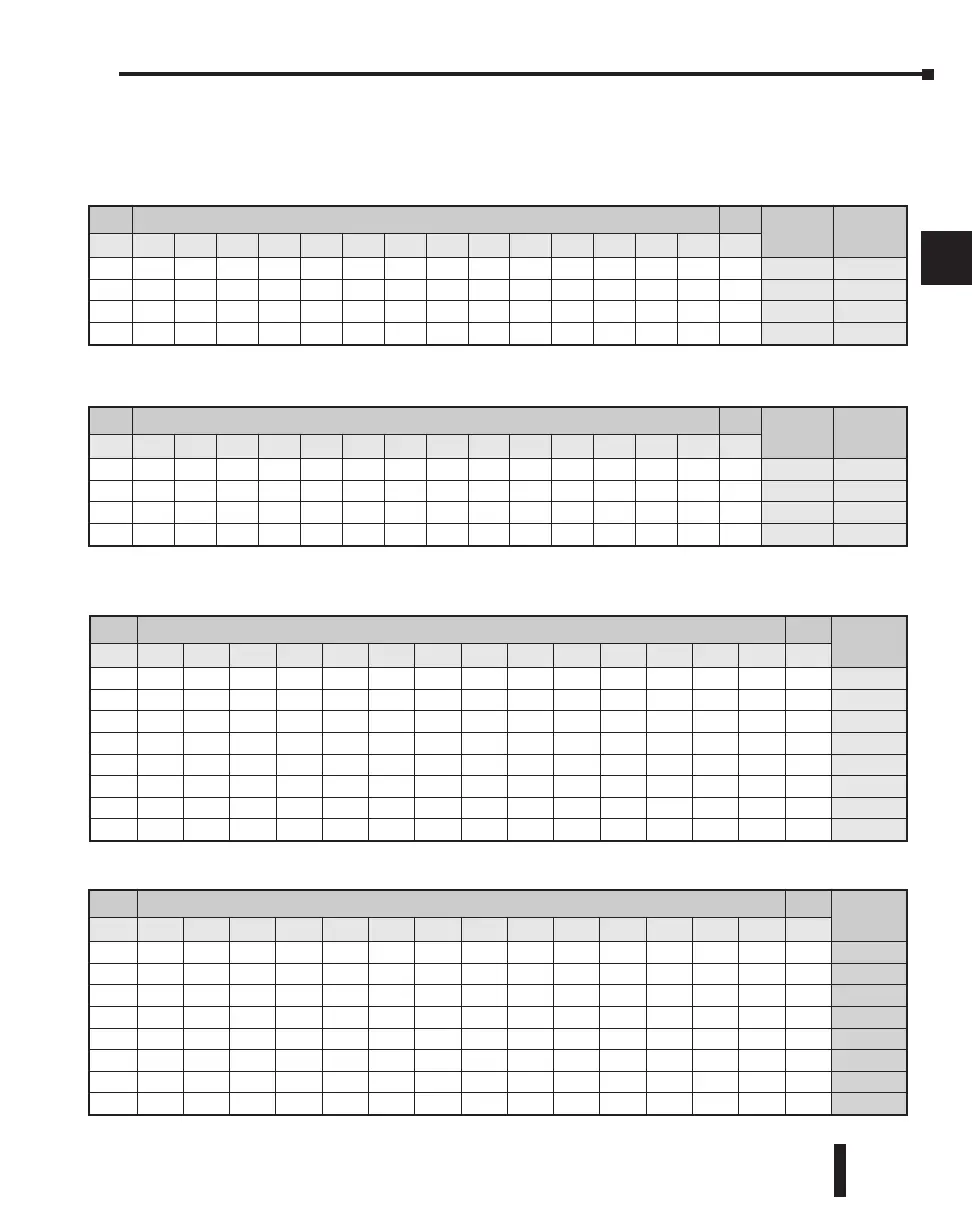

Timer and Counter Status Bit Maps
This table provides a listing of the individual timer and counter contacts associated with each
V-memory address bit.
This portion of the table shows additional Timer and Counter contacts available with the
DL240/250–1/260.
This portion of the table shows additional Timer contacts available with the DL250-1 and
DL260.
This portion of the table shows additional Counter contacts available with the DL260.
MSB Additional DL260 Counter (CT) Contacts LSB
Counter
Address
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
217 216 215 214 213 212 211 210 207 206 205 204 203 202 201 200
V41150
237 236 235 234 233 232 231 230 227 226 225 224 223 222 221 220
V41151
257 256 255 254 253 252 251 250 247 246 245 244 243 242 241 240
V41152
277 276 275 274 273 272 271 270 267 266 265 264 263 262 261 260
V41153
317 316 315 314 313 312 311 310 307 306 305 304 303 302 301 300
V41154
337 336 335 334 333 332 331 330 327 326 325 324 323 322 321 320
V41155
357 356 355 354 353 352 351 350 347 346 345 344 343 342 341 340
V41156
377 376 375 374 373 372 371 370 367 366 365 364 363 362 361 360
V41157
MSB Additional DL250-1/DL260 Timer (T) Contacts LSB
Timer
Address
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
217 216 215 214 213 212 211 210 207 206 205 204 203 202 201 200
V41110
237 236 235 234 233 232 231 230 227 226 225 224 223 222 221 220
V41111
257 256 255 254 253 252 251 250 247 246 245 244 243 242 241 240
V41112
277 276 275 274 273 272 271 270 267 266 265 264 263 262 261 260
V41113
317 316 315 314 313 312 311 310 307 306 305 304 303 302 301 300
V41114
337 336 335 334 333 332 331 330 327 326 325 324 323 322 321 320
V41115
357 356 355 354 353 352 351 350 347 346 345 344 343 342 341 340
V41116
377 376 375 374 373 372 371 370 367 366 365 364 363 362 361 360
V41117
MSB
Additional DL240/DL250-1/DL260 Timer (T) and Counter (CT) Contacts LSB
Timer
Address
Counter
Address
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
117 116 115 114 113 112 111 110 107 106 105 104 103 102 101 100
V41104 V41144
137 136 135 134 133 132 131 130 127 126 125 124 123 122 121 120
V41105 V41145
157 156 155 154 153 152 151 150 147 146 145 144 143 142 141 140
V41106 V41146
177 176 175 174 173 172 171 170 167 166 165 164 163 162 161 160
V41107 V41147
MSB
DL230/DL240/DL250-1/DL260 Timer (T) and Counter (CT) Contacts LSB
Timer
Address
Counter
Address
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
017 016 015 014 013 012 011 010 007 006 005 004 003 002 001 000
V41100 V41140
037 036 035 034 033 032 031 030 027 026 025 024 023 022 021 020
V41101 V41141
057 056 055 054 053 052 051 050 047 046 045 044 043 042 041 040
V41102 V41142
077 076 075 074 073 072 071 070 067 066 065 064 063 062 061 060
V41103 V41143
