Automationdirect.com DirectLOGIC DL205 Series User Manual

DL205 User Manual, 4th Edition, Rev. B
2–32
Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

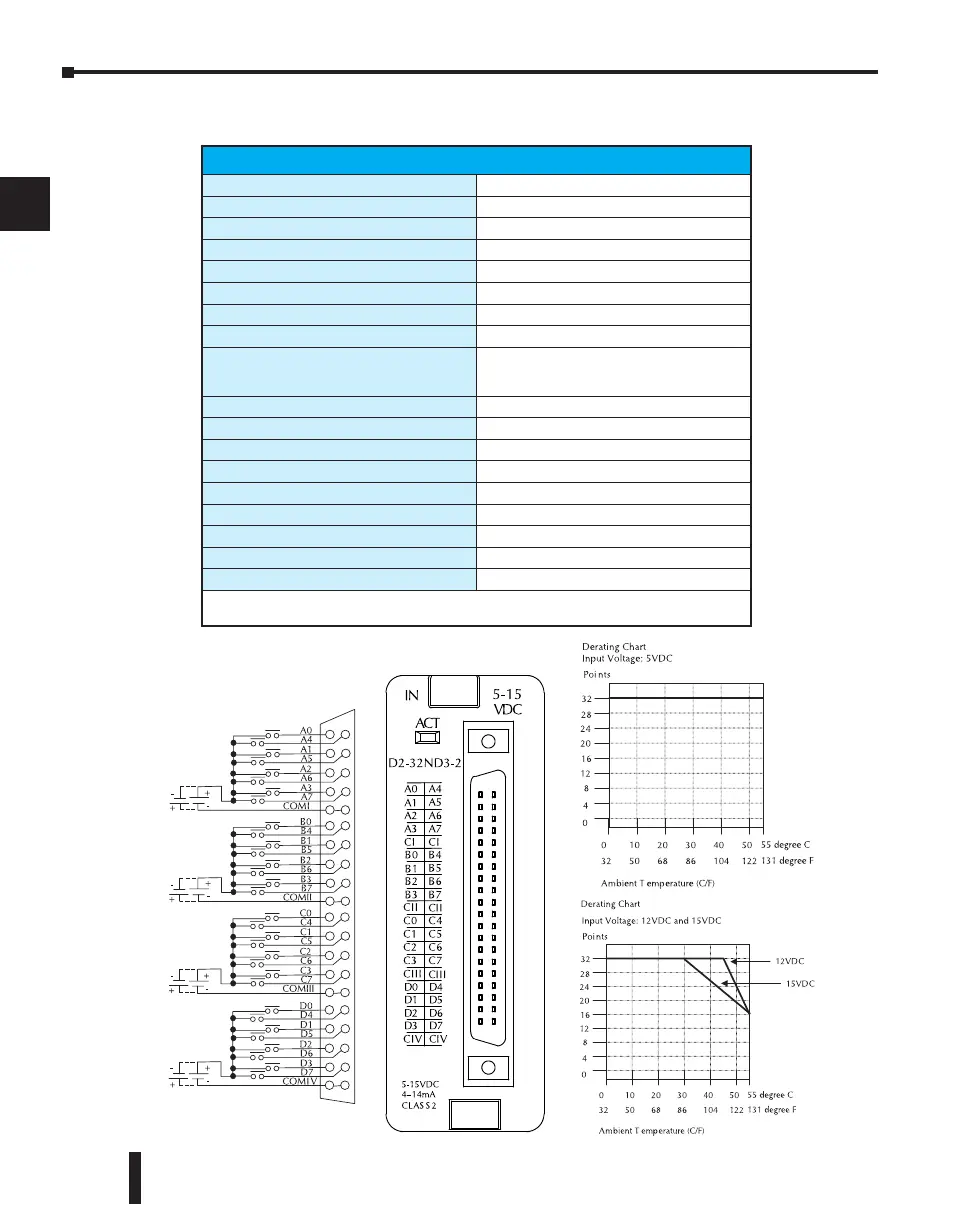

D2–32ND3–2, DC Input
D2-32ND3-2 DC Input
Inputs per Module
32 (Sink/Source)
Commons per Module
4
isolated (8 I/O terminal points / com)
Input Voltage Range
4
.50 to 15.6 VDC min. to max.
Peak Voltage
16 VDC
ON Voltage Level
4 VDC minimum
OFF Voltage Level
2 VDC maximum
AC Frequency
N/A
Input Impedance
1.0 k @ 5-15 VDC
Input Current
4 mA @ 5 VDC
11 mA @ 12 VDC
14 mA @ 15 VDC
Maximum Input Current
16 mA @ 15.6 VDC
Minimum ON Current
3 mA
Maximum OFF Current
0.5 mA
Base Power Required 5VDC
25 mA
OFF to ON Response
3 to 9 ms
ON to OFF Response
3 to 9 ms
Terminal Type (not included)
Removable 40-pin connector
1
Status Indicator
Module activity LED
Weight
2.1 oz (60 g)
1
Connector sold separately.
See Terminal Blocks and Wiring for wiring options.
Sink
Source
5-15VDC
Sink
Source
5-15VDC
Sink
Source
5-15VDC
Sink
Source
5-15VDC

  

