DL205 User Manual, 4th Edition, Rev. B
5–33
Chapter 5: Standard RLL Instructions - Immediate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Immediate Instructions

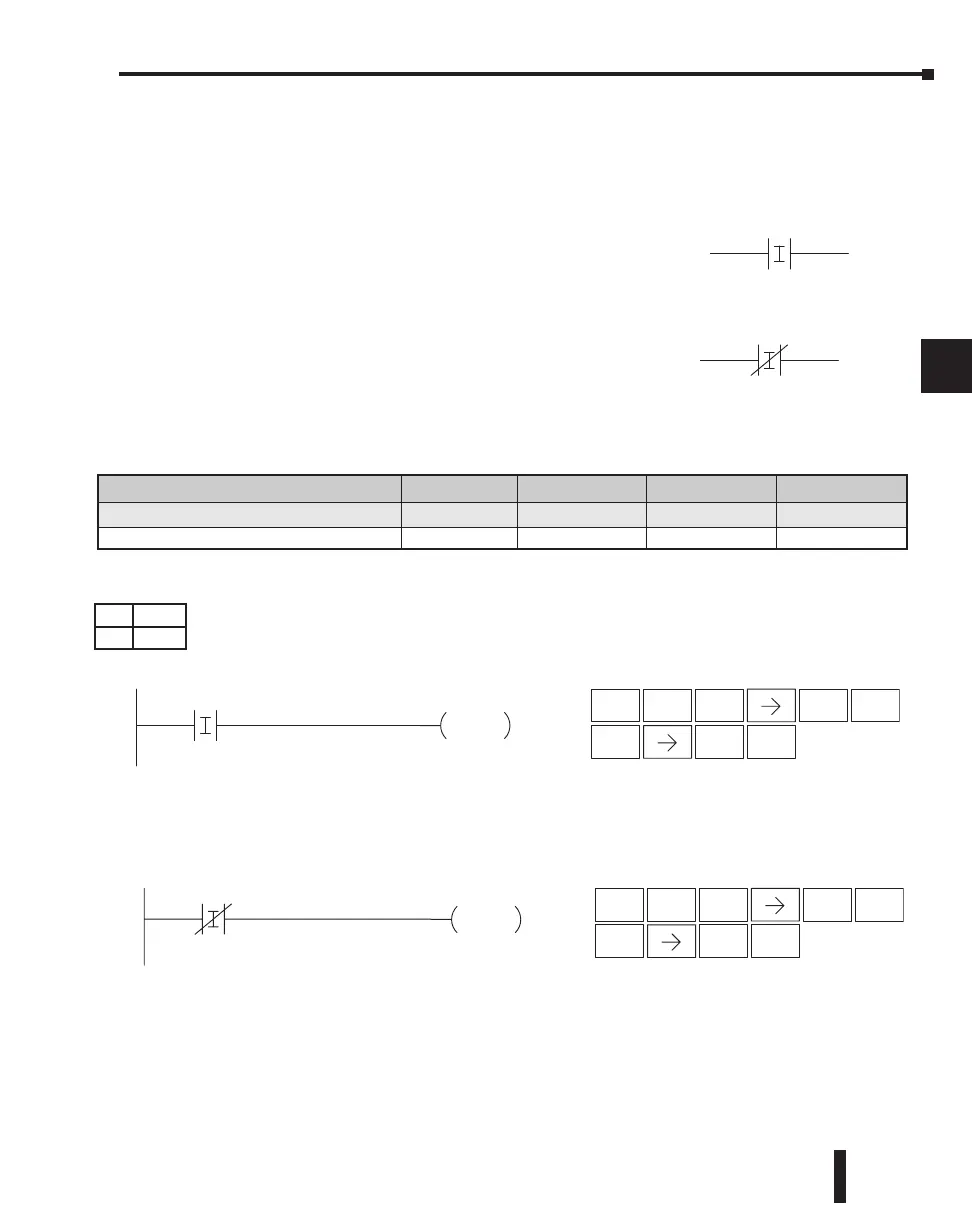

Store Immediate (STRI)
The Store Immediate instruction begins a new rung
or additional branch in a rung. The status of the
contact will be the same as the status of the
associated input point at the time the instruction is
executed. The image register is not updated.
Store Not Immediate (STRNI)
The Store Not Immediate instruction begins a new
rung or additional branch in a rung. The status of
the contact will be opposite the status of the
associated input point at the time the instruction is
executed. The image register is not updated.
In the following example when X1 is on, Y2 will energize.
In the following example when X1 is off, Y2 will energize.
ENT
2
C
1
B
ENT
X1
Y2
OUT
Handheld Programmer KeystrokesDirectSOFT
STR
$
SHFT
8
I
OUT
GX
ENT
2
C
1
B
ENT
X1
Y2
OUT
Handheld Programmer Keystrokes
DirectSOFT
STRN
SP
SHFT
8
I
OUT
GX
Operand Data Type DL230 Range DL240 Range DL250-1 Range DL260 Range
aaa aaa aaa aaa
Inputs X 0–177 0–477 0–777 0–1777
DS Implied
HPP Used
