Automationdirect.com DirectLOGIC DL205 Series User Manual

DL205 User Manual, 4th Edition, Rev. B
2–43
Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

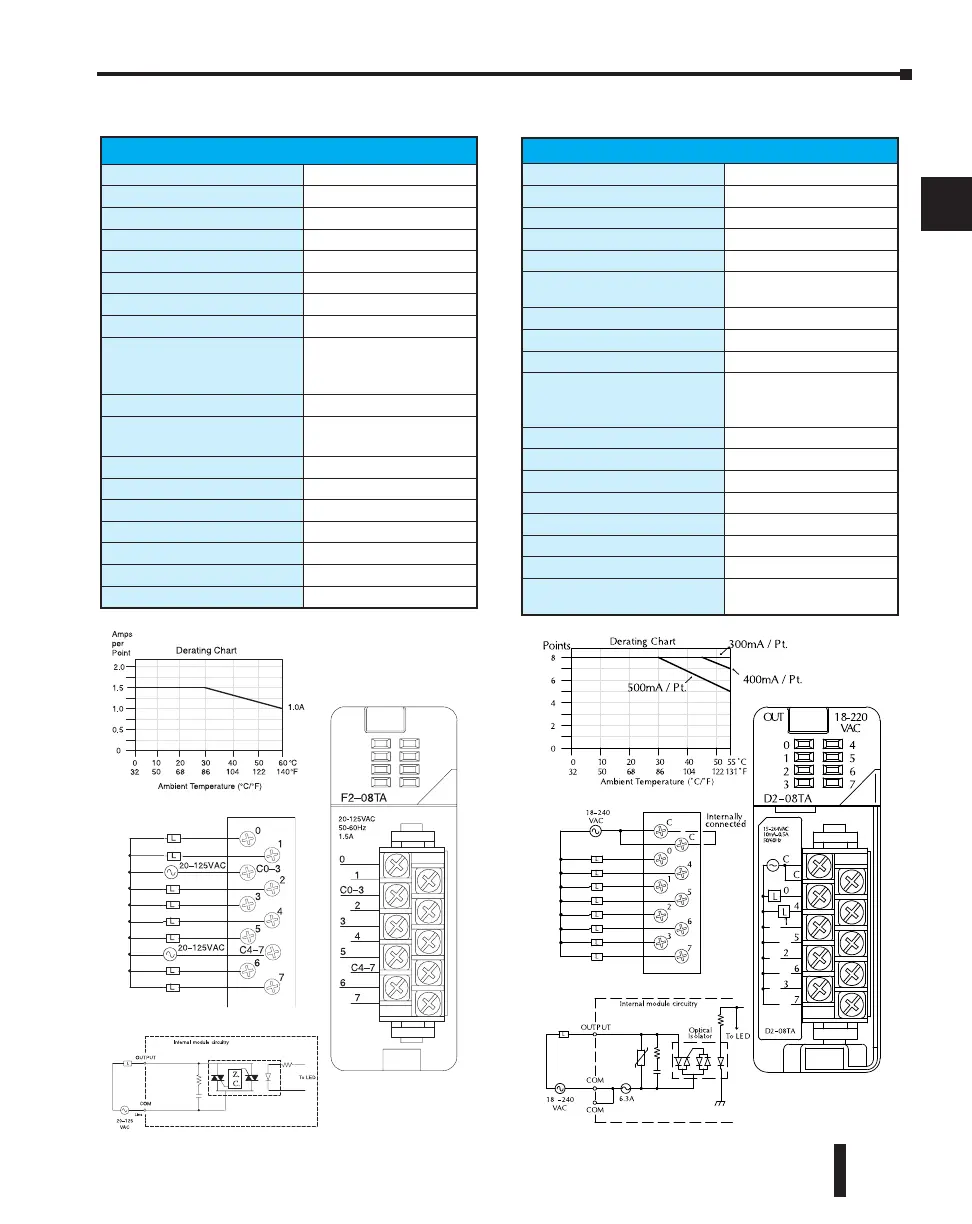

F2–08TA, AC Output D2–08TA, AC Output
F2-08TA AC Output
Outputs per Module
8
Commons per Module
2 (Isolated)
Output Type
SSR (Triac with zero crossover)
Operating Voltage
24-140 VAC
Peak Voltage
140 VAC
ON Voltage Drop
1.6 V(rms) @ 1.5A
AC Frequency
47 to 63 Hz
Minimum Load Current
50 mA
Max Load Current
1.5A / pt @ 30ºC
1.0A / pt @ 60ºC
4.0A / common; 8.0A / module
@ 60ºC
Max Leakage Current
0.7 mA(rms)
Peak One Cycle Surge
Current
15A
Base Power Required 5VDC
250 mA
OFF to ON Response
0.5 ms - 1/2 cycle
ON to OFF Response
0.5 ms - 1/2 cycle
Terminal Type (included)
Removable; D2-8IOCON
Status Indicator
Logic side
Weight
3.5 oz.
Fuses
None
D2-08TA AC Output
Outputs per Module
8
Commons per Module
1 (2 I/O terminal points)
Output Type
S
SR (Triac)
Operating Voltage
1
5-264 VAC
Peak Voltage
264 VAC
ON Voltage Drop
< 1.5 VAC (>0.1A)
< 3.0 VAC (<0.1A)
AC Frequency
47 to 63 Hz
Minimum Load Current
10 mA
Max Load Current
0.5A/point; 4A/common
Max Leakage Current
4 mA (264 VAC, 60 Hz)
1.2 mA (100 VAC, 60 Hz)
0.9 mA (100 VAC, 50 Hz)
Max Inrush Current
10A for 10 ms
Base Power Required 5VDC
250 mA
OFF to ON Response
1 ms
ON to OFF Response
1 ms + 1/2 cycle
Terminal Type (included)
Removable; D2-8IOCON
Status Indicator
Logic side
Weight
2.8 oz. (80g)
Fuses
1 per common, 6.3A slow blow,
non-replaceable
